Range Rover Evoque: Transmission Vehicles With: M66 6-Speed Manual Transmission AWD - Removal

Land Rover Range Rover Evoque L538 (2011–2018) Service Manual / Manual Transmission & Transaxle / Manual Transmission/Transaxle / Transmission Vehicles With: M66 6-Speed Manual Transmission AWD - Removal

Removal

Special Tool(s)

205-857
Remover, Halfshaft

303-021
Engine support bracket

303-662
Support Beam Arm and Hook Assembly, Engine

General Equipment

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

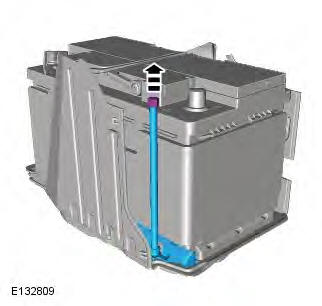

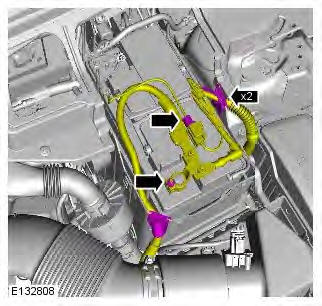

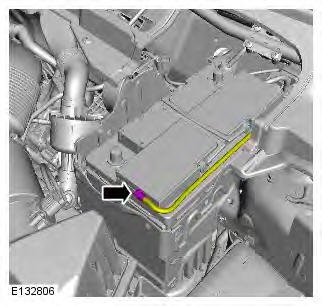

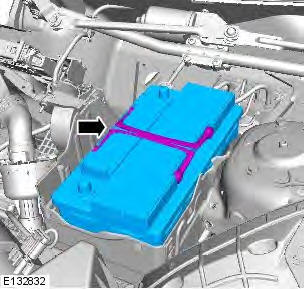

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

2. Refer to: Plenum Chamber (412-01 Climate Control, Removal and Installation).

3. Refer to: Starter Motor (303-06A Starting System - TD4 2.2L Diesel, Removal and Installation).

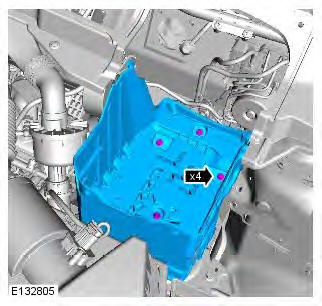

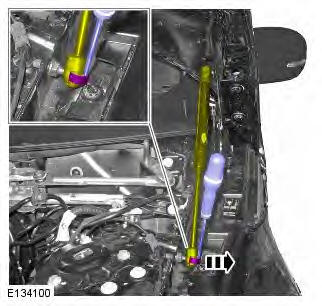

4.

Range Rover Evoque. Manual Transmission/Transaxle

5.

Range Rover Evoque. Manual Transmission/Transaxle

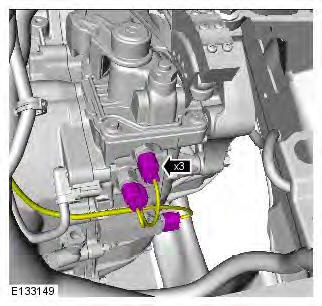

6.

Range Rover Evoque. Manual Transmission/Transaxle

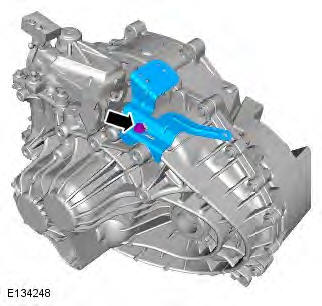

7.

Range Rover Evoque. Manual Transmission/Transaxle

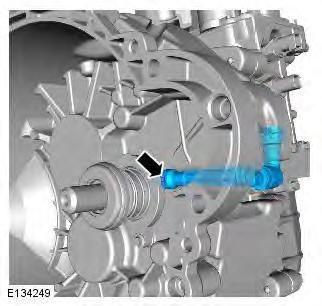

8.

Range Rover Evoque. Manual Transmission/Transaxle

9.

Range Rover Evoque. Manual Transmission/Transaxle

10.

Range Rover Evoque. Manual Transmission/Transaxle

11.

Range Rover Evoque. Manual Transmission/Transaxle

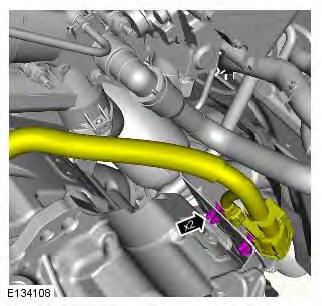

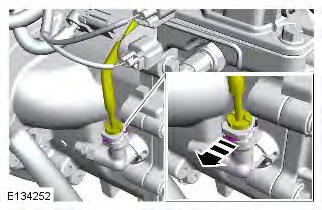

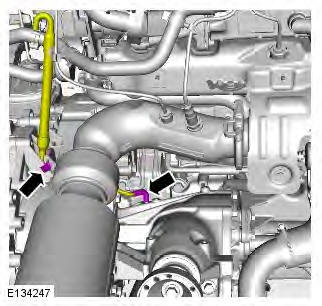

12. WARNINGS: Be prepared to catch escaping fluid.

Make sure that all openings are sealed. Use new blanking caps.

CAUTION: If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.

Range Rover Evoque. Manual Transmission/Transaxle

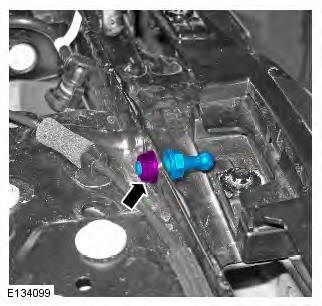

13.

Range Rover Evoque. Manual Transmission/Transaxle

14. Repeat the above step for the other side.

Range Rover Evoque. Manual Transmission/Transaxle

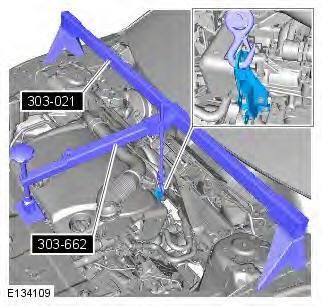

15. Support the engine.

Special Tool(s): 303-021, 303-662

Range Rover Evoque. Manual Transmission/Transaxle

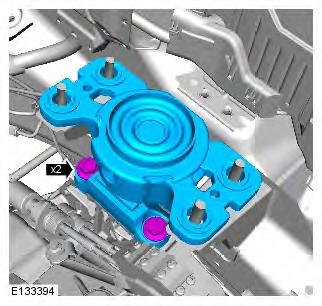

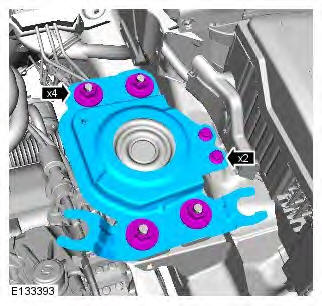

16.

Range Rover Evoque. Manual Transmission/Transaxle

17.

Range Rover Evoque. Manual Transmission/Transaxle

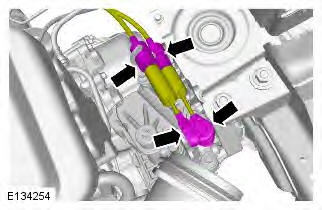

18. NOTE: Neutral must be selected before the cables are released to allow the cables to be correctly set on the install.

Range Rover Evoque. Manual Transmission/Transaxle

19. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

20. Remove the front wheels and tires.

Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

21. Refer to: Engine Undershield (501-02 Front End Body Panels, Removal and Installation).

22. Refer to: Front Subframe (502-00 Uni-Body, Subframe and Mounting System, Removal and Installation).

23. NOTE: This step is only necessary when installing a new component.

Range Rover Evoque. Manual Transmission/Transaxle

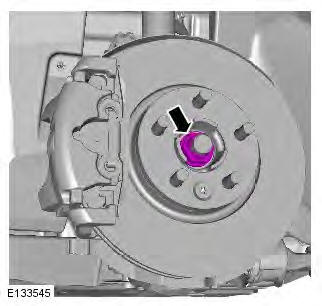

24. CAUTION: Discard the nut.

Range Rover Evoque. Manual Transmission/Transaxle

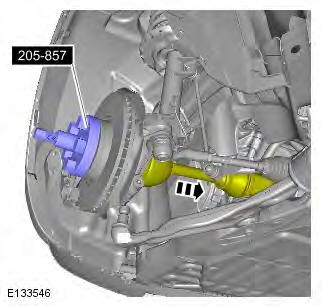

25. CAUTIONS:

Make sure that the driveshaft is supported with suitable retaining straps.

Do not use a hammer to detach the halfshaft from the hub assembly, failure to follow this instruction may result in damage to the halfshaft.

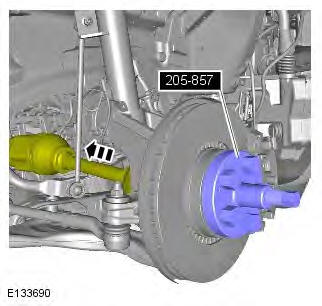

Special Tool(s): 205-857

Range Rover Evoque. Manual Transmission/Transaxle

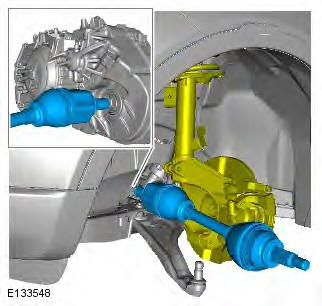

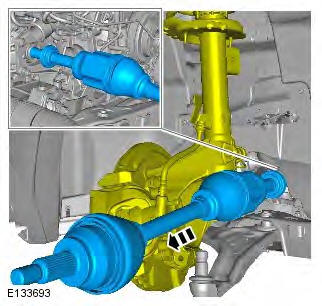

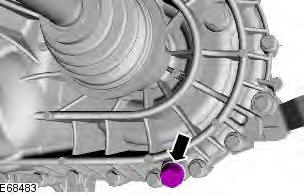

26. WARNING: Be prepared to collect escaping fluids.

CAUTION: Keep the halfshaft horizontal to avoid damaging the oil seal.

Range Rover Evoque. Manual Transmission/Transaxle

27.

Range Rover Evoque. Manual Transmission/Transaxle

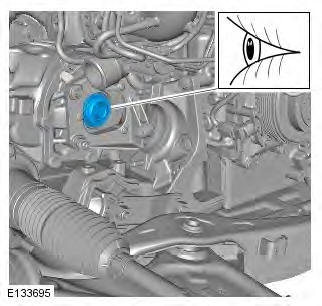

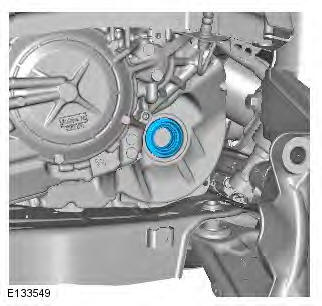

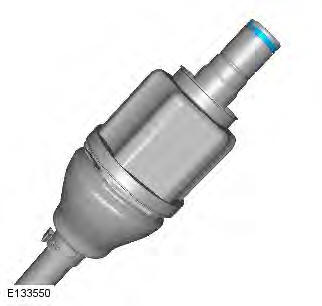

28. CAUTION: Inspect the seal, replace if damaged NOTE: Automatic transmission shown, manual is similar.

If removed for access only.

Range Rover Evoque. Manual Transmission/Transaxle

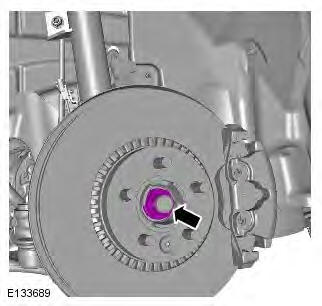

29. CAUTION: Discard the nut.

Range Rover Evoque. Manual Transmission/Transaxle

30. CAUTIONS: Make sure that the driveshaft is supported with suitable retaining straps.

Do not use a hammer to detach the halfshaft from the hub assembly, failure to follow this instruction may result in damage to the halfshaft. Special Tool(s): 205-857

Range Rover Evoque. Manual Transmission/Transaxle

31.

Range Rover Evoque. Manual Transmission/Transaxle

32. WARNING: Be prepared to collect escaping fluids.

CAUTION: Keep the halfshaft horizontal to avoid damaging the oil seal.

Range Rover Evoque. Manual Transmission/Transaxle

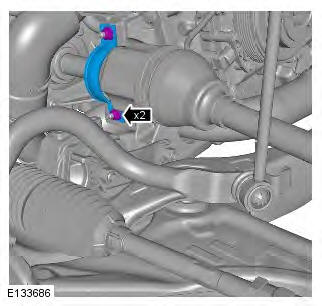

33.

Range Rover Evoque. Manual Transmission/Transaxle

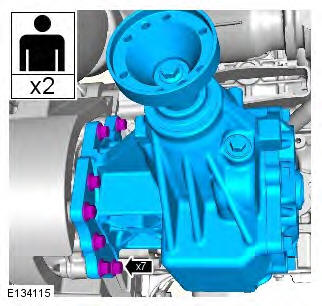

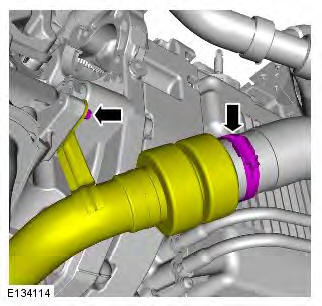

34. NOTE: Automatic transmission shown, manual is similar.

Range Rover Evoque. Manual Transmission/Transaxle

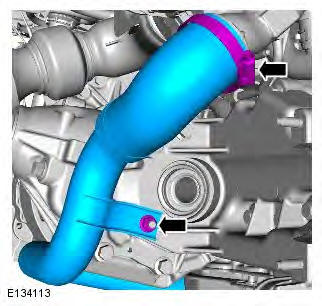

35.

Range Rover Evoque. Manual Transmission/Transaxle

36. CAUTION: Discard the bolts.

Tie aside.

Range Rover Evoque. Manual Transmission/Transaxle

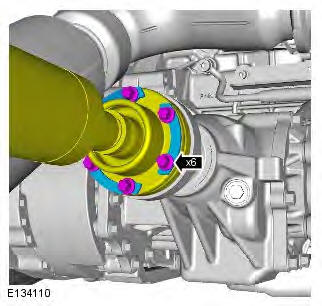

37.

Range Rover Evoque. Manual Transmission/Transaxle

38.

Range Rover Evoque. Manual Transmission/Transaxle

39. WARNING: Make sure that all openings are sealed. Use new blanking caps.

Range Rover Evoque. Manual Transmission/Transaxle

40.

Range Rover Evoque. Manual Transmission/Transaxle

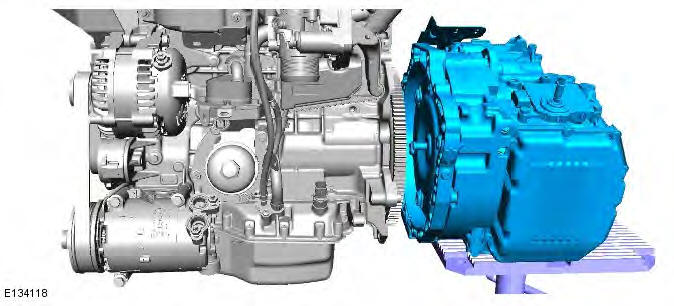

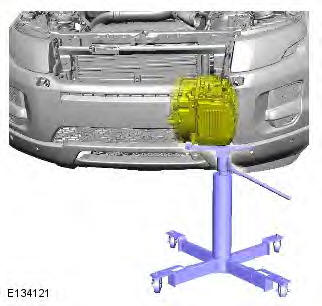

41. NOTE: Automatic transmission shown, manual is similar. General Equipment: Transmission jack

Range Rover Evoque. Manual Transmission/Transaxle

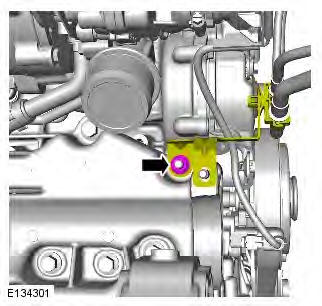

42.

Range Rover Evoque. Manual Transmission/Transaxle

43.

Range Rover Evoque. Manual Transmission/Transaxle

44.

Range Rover Evoque. Manual Transmission/Transaxle

45.

Range Rover Evoque. Manual Transmission/Transaxle

46.

Range Rover Evoque. Manual Transmission/Transaxle

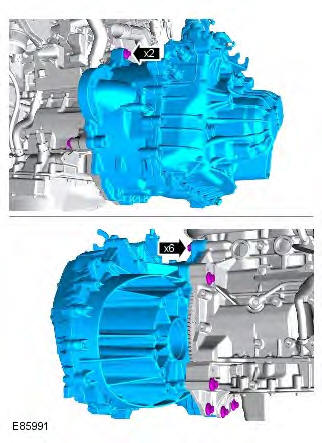

47. CAUTIONS: On removal and installation of the transmission, make sure that the transsmission does not damage the brake pipe.

Make sure that the dowels are still located on the engine and not the transmission.

NOTE: Automatic transmission shown, manual is similar.

Range Rover Evoque. Manual Transmission/Transaxle

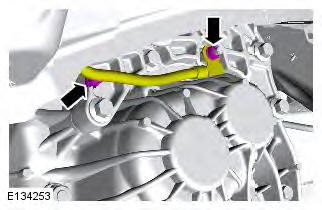

48. WARNING: Make sure that all openings are sealed. Use new blanking caps.

CAUTION: If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.

Do not disassemble further if removed for access only

Range Rover Evoque. Manual Transmission/Transaxle

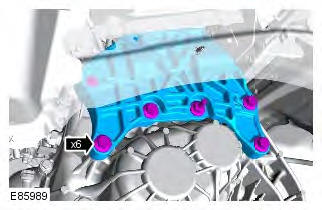

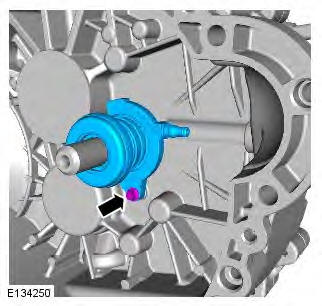

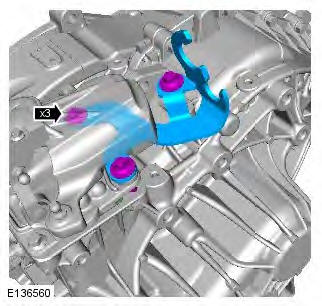

49.

Range Rover Evoque. Manual Transmission/Transaxle

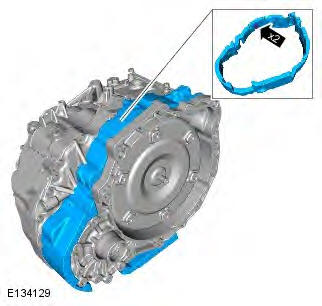

50.

Range Rover Evoque. Manual Transmission/Transaxle

51.

Range Rover Evoque. Manual Transmission/Transaxle
