Range Rover Evoque: Transmission Vehicles With: M66 6-Speed Manual Transmission FWD - Installation

Installation

Special Tool(s)

303-021
Engine support bracket

303-662
Support Beam Arm and Hook Assembly, Engine

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

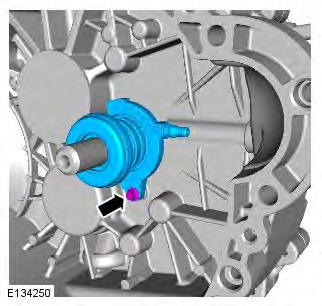

1. NOTE: This step is only required if previously removed.

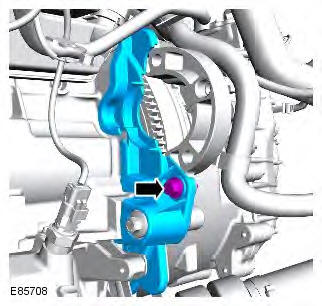

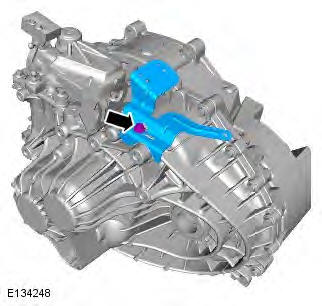

2. NOTE: This step is only required if previously removed.

Torque: 12 Nm

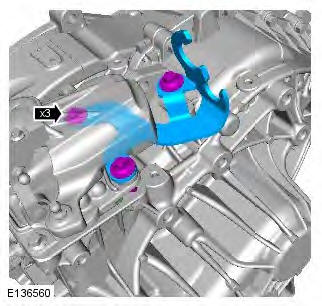

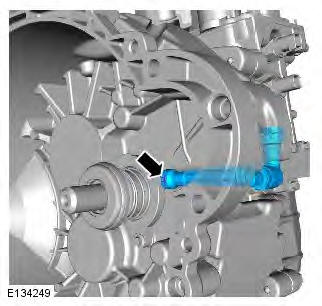

3. NOTE: This step is only required if previously removed.

Torque: 11 Nm

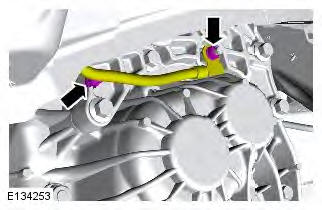

4. NOTE: This step is only required if previously removed.

5. CAUTIONS: On removal and installation of the transmission, make sure that the transsmission does not damage the brake pipe.

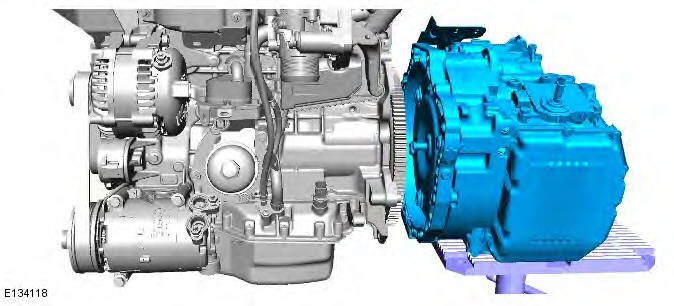

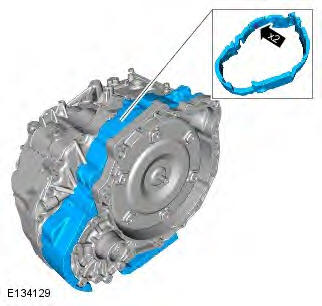

NOTE: Automatic transmission shown, manual is similar.

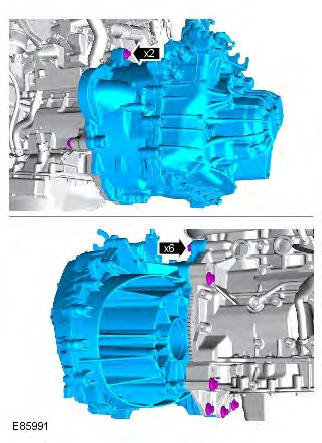

6. Torque: 65 Nm

7. Torque: 60 Nm

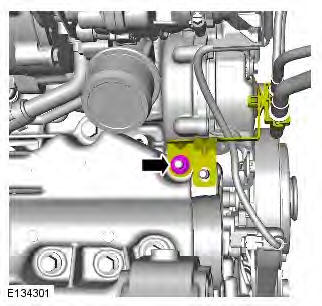

8. Torque: 24 Nm

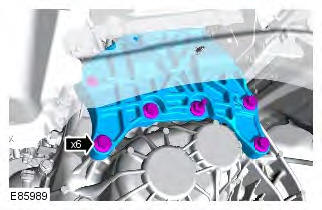

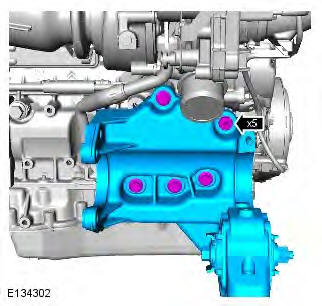

9. Torque:

• M12 80 Nm
• M8 24 Nm

10. Torque: 24 Nm

11. NOTE: Automatic transmission shown, manual is similar. Remove the transmission jack.

12. Torque: 65 Nm

13. Torque: 24 Nm

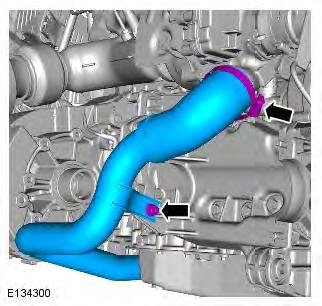

14. Torque:

• M8 12 Nm
• Clamp 3.5 Nm

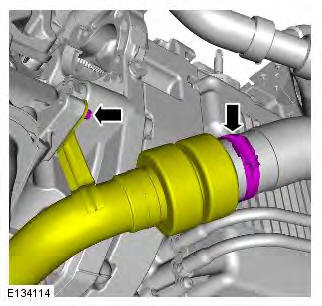

15. Torque:

• M6 12 Nm
• Clamp 3.5 Nm

16. NOTE: This step is only required if previously removed.

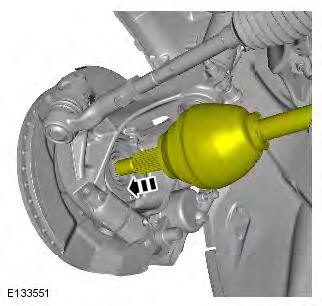

17. CAUTION: Keep the halfshaft horizontal to avoid damaging the oil seal.

18. CAUTION: LH illustration shown, RH is similar.

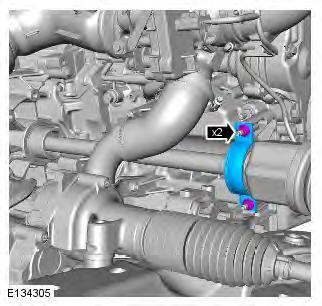

19. Torque: 25 Nm

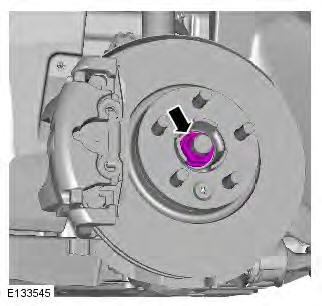

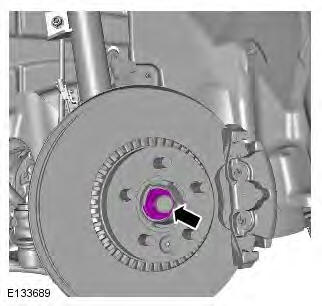

20. WARNING: Make sure that a new nut is installed.

Torque: 120 Nm

21. NOTES: This step is only required if previously removed.

Automatic transmission shown, manual is similar.

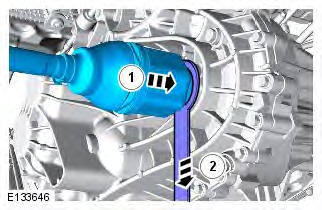

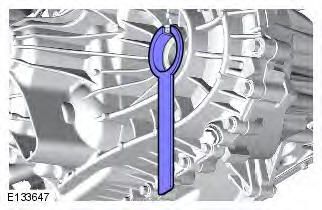

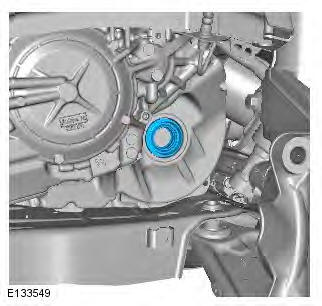

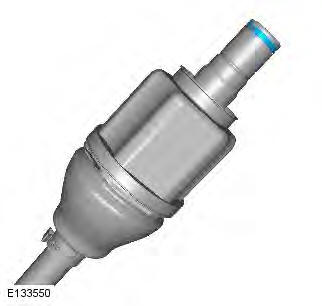

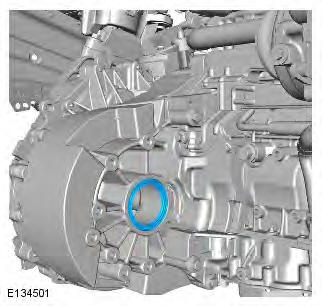

22. To prevent oil seal damage use the protector when installing the shaft into the transmission. It is not a special tool but is available from the Parts Catalogue.

23.

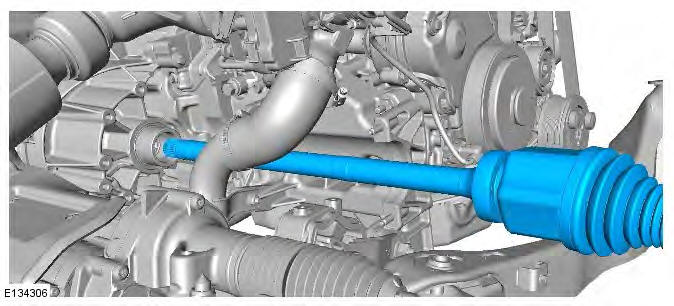

24. CAUTION: Keep the halfshaft horizontal to avoid damaging the oil seal.

NOTE: Do not fully engage the halfshaft until the oil seal protector has been removed.

25.

26. WARNING: Make sure that a new nut is installed.

Torque: 120 Nm

27. Refer to: Transmission Draining and Filling (308-03 Manual Transmission/Transaxle, General Procedures).

28. Refer to: Front Subframe (502-00 Uni-Body, Subframe and Mounting System, Removal and Installation).

29. Refer to: Engine Undershield (501-02 Front End Body Panels, Removal and Installation).

30. Install the front wheels and tires.

Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

31. Lower the vehicle.

32.

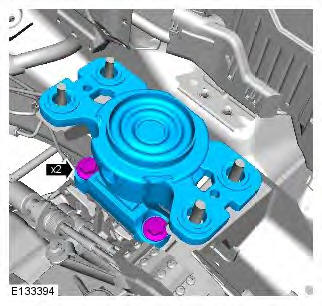

33. Torque: 175 Nm

34. Torque:

• M8 24 Nm
• M12 80 Nm

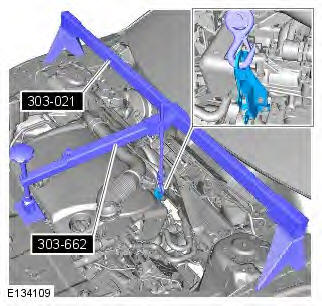

35. Remove the special tools.

Special Tool(s): 303-021, 303-662

36. Repeat the above step for the other side.

37.

• Repeat the above step for the other side.

38.

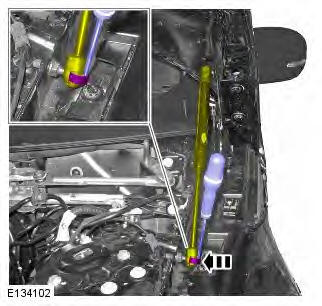

39.

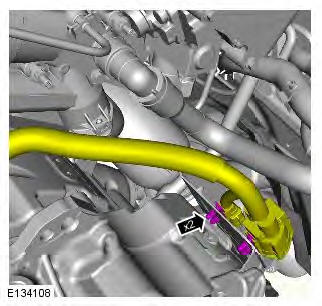

40.

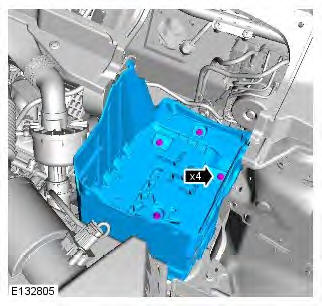

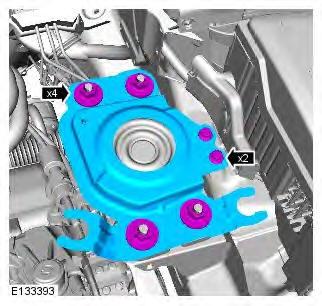

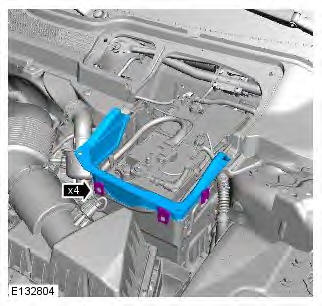

41. Torque: 10 Nm

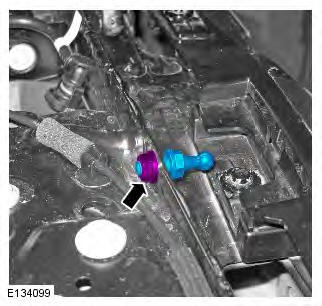

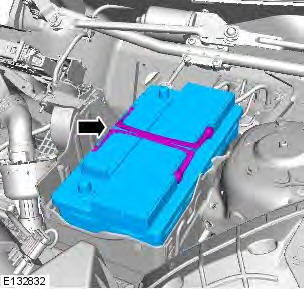

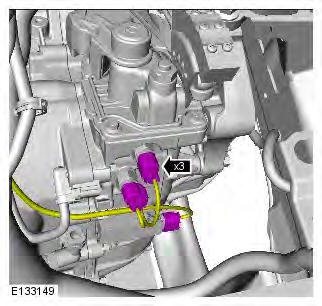

42.

43. Torque: 12 Nm

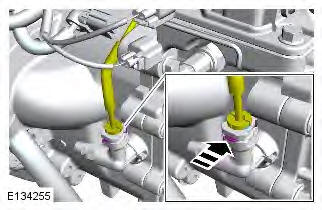

44.

45.

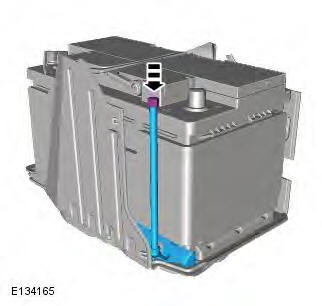

46.

47. Refer to: Starter Motor (303-06A Starting System - TD4 2.2L Diesel, Removal and Installation).

48. Refer to: Plenum Chamber (412-01 Climate Control, Removal and Installation).

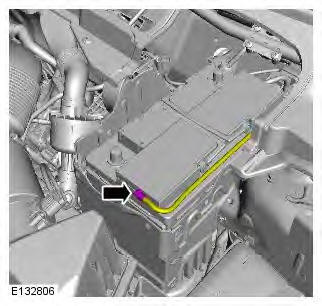

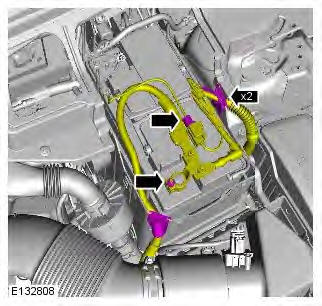

49. Connect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

50. Refer to: Clutch System Bleeding (308-00 Manual Transmission/Transaxle and Clutch - General Information, General Procedures).

Manual Transmission

Principles of Operation

For a detailed description of the manual transmission/transaxle and clutch, refer to the relevant Description and Operation section in the workshop manual.

Inspection and Verification

CAUTION: Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution of control modules does not guarantee confirmation of a fault and may also cause additional faults in the vehicle being checked and/or the donor vehicle.

1. Verify the customer concern.

2. Visually inspect for obvious signs of mechanical or electrical damage.

Visual Inspection

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.

4. If the cause is not visually evident, verify the symptom and refer to the Symptom Chart.

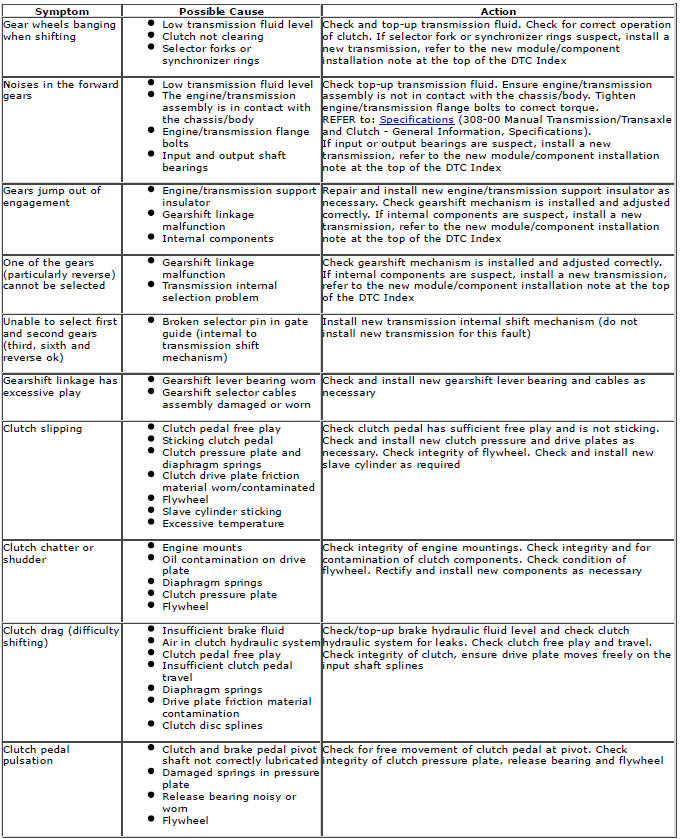

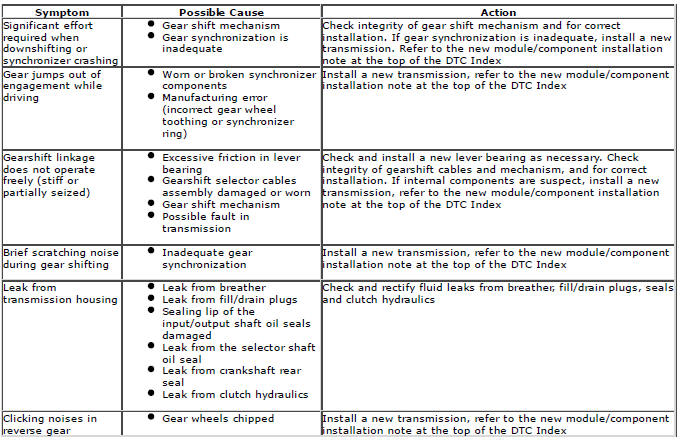

Symptom Chart

NOTE: Check transmission fluid level prior to carrying out any further diagnosis.
