Range Rover Evoque: Halfshaft Seal RH Vehicles With: M66 6-Speed Manual Transmission FWD
Land Rover Range Rover Evoque L538 (2011–2018) Service Manual / Manual Transmission & Transaxle / Manual Transmission/Transaxle / Halfshaft Seal RH Vehicles With: M66
6-Speed Manual Transmission FWD
Special Tool(s)
303-1300
Remover, Crankshaft Seal
307-594
Installer, Seal
Removal
1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.
2. Refer to: Front Halfshaft RH - FWD (205-04 Front Drive Halfshafts, Removal and Installation).
3. CAUTIONS: Make sure that the area around the component is clean and free of foreign material.
Take extra care not to damage the mating faces.

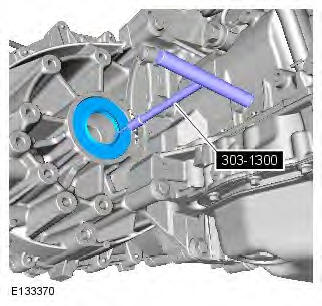

Special Tool(s): 303-1300
Installation

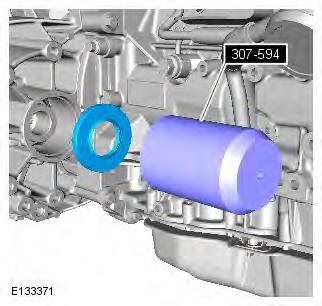

1. Special Tool(s): 307-594
2. Refer to: Front Halfshaft RH - FWD (205-04 Front Drive Halfshafts, Removal and Installation).
