Range Rover Evoque: Transmission Vehicles With: M66 6-Speed Manual Transmission FWD - Removal
Removal
Special Tool(s)
205-857
Remover, Halfshaft
303-021
Engine support bracket
303-662
Support Beam Arm and Hook Assembly, Engine
General Equipment
- Transmission jack

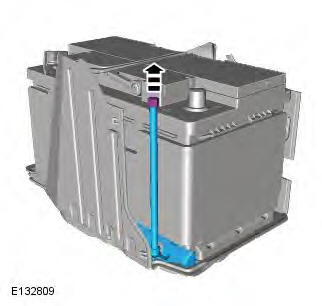

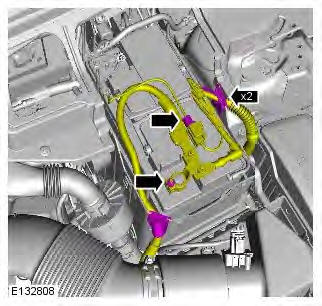

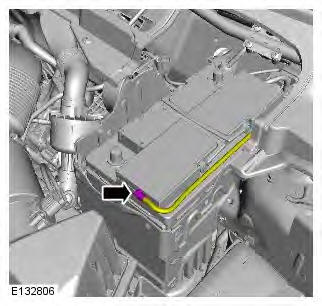

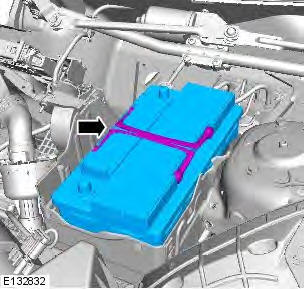

1. Disconnect the battery ground cable.
Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).
2. Refer to: Plenum Chamber (412-01 Climate Control, Removal and Installation).
3. Refer to: Starter Motor (303-06A Starting System - TD4 2.2L Diesel, Removal and Installation).

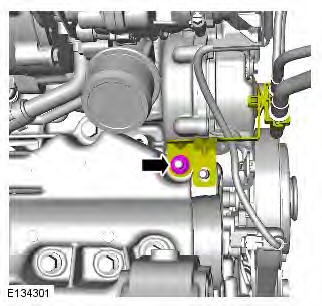

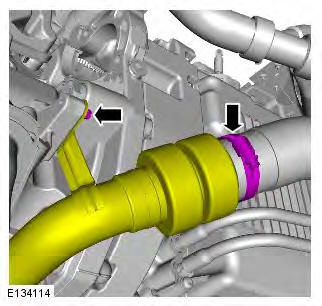

4.

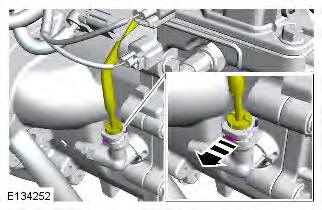

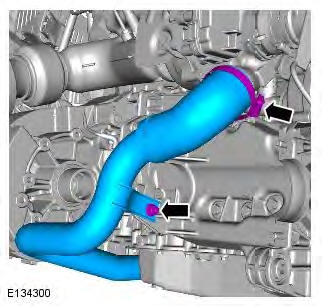

5.

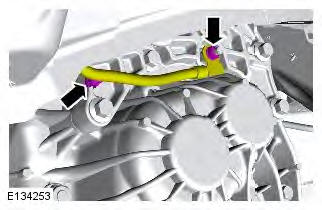

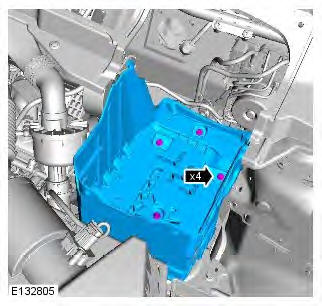

6.

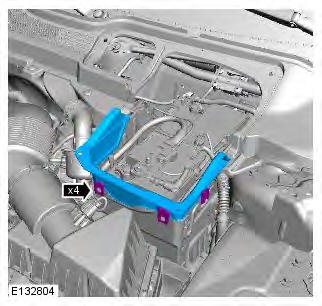

7.
8.
9.
10.
11.

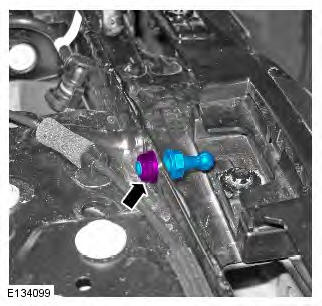

12. WARNING: Be prepared to catch escaping fluid.
CAUTIONS: If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.
Make sure that all openings are sealed. Use new blanking caps.

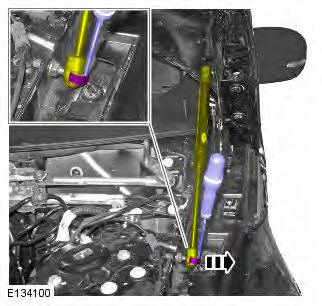

13.
- Repeat the above step for the other side.
- Secure the hood at the highest position.
14. Repeat the above step for the other side.
15. Support the engine.

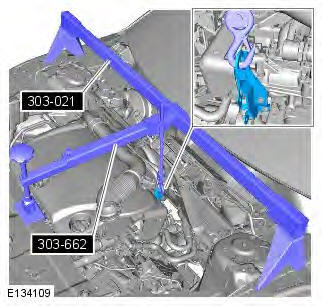

Special Tool(s): 303-021, 303-662

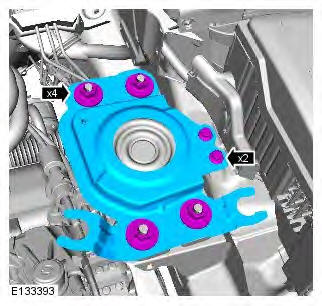

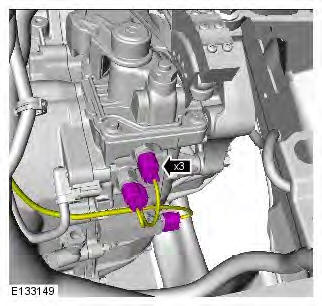

16.

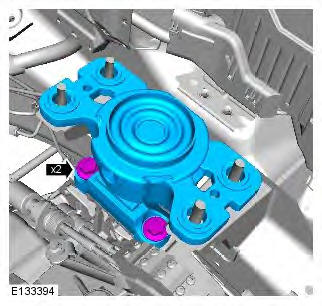

17.

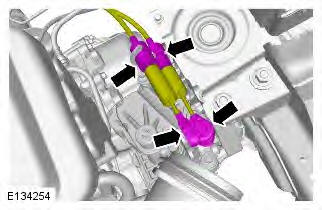

18. NOTE: Neutral must be selected before the cables are released to allow the cables to be correctly set on the install.
19. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.
20. Remove the front wheels and tires.
Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).
21. Refer to: Engine Undershield (501-02 Front End Body Panels, Removal and Installation).
22. Refer to: Front Subframe (502-00 Uni-Body, Subframe and Mounting System, Removal and Installation).
23. NOTE: This step is only necessary when installing a new component.

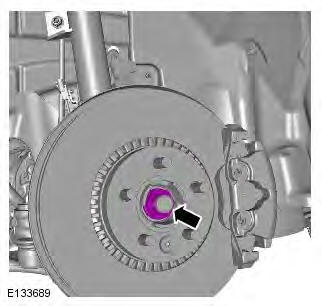

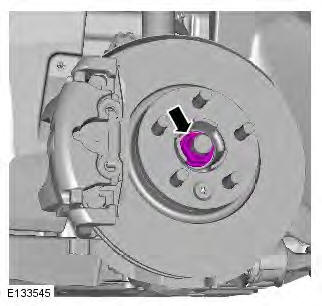

24. CAUTION: Discard the nut.

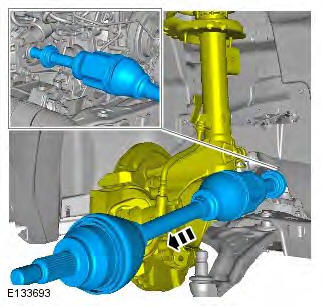

25. CAUTIONS: Make sure that the driveshaft is supported with suitable retaining straps.
Do not use a hammer to detach the halfshaft from the hub assembly, failure to follow this instruction may result in damage to the halfshaft.

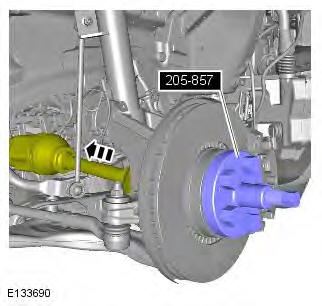

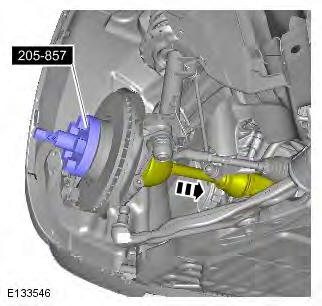

Special Tool(s): 205-857

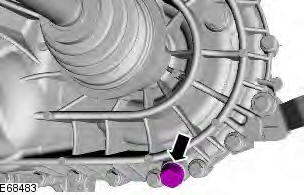

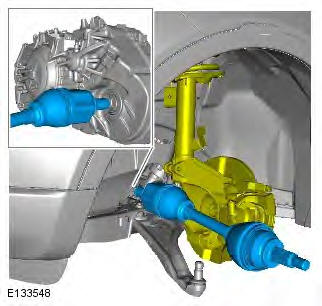

26. WARNING: Be prepared to collect escaping fluids.
CAUTION: Keep the halfshaft horizontal to avoid damaging the oil seal.
27.

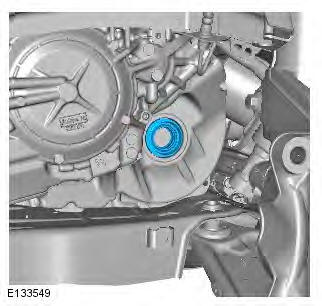

28. CAUTION: Inspect the seal, replace if damaged NOTE: Automatic transmission shown, manual is similar.
If removed for access only.
29. CAUTION: Discard the nut.
30. CAUTIONS: Make sure that the driveshaft is supported with suitable retaining straps.
Do not use a hammer to detach the halfshaft from the hub assembly, failure to follow this instruction may result in damage to the halfshaft.
Special Tool(s): 205-857
31.
32. WARNING: Be prepared to collect escaping fluids.
CAUTION: Keep the halfshaft horizontal to avoid damaging the oil seal.

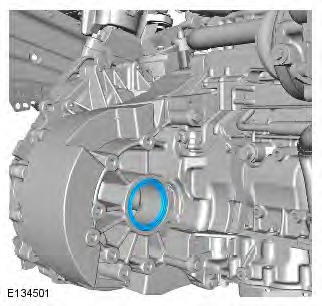

33. CAUTION: Inspect the seal, replace if damaged If removed for access only.
34. NOTE: Automatic transmission shown, manual is similar.
35.
36.
37.
38. NOTE: Automatic transmission shown, manual is similar.

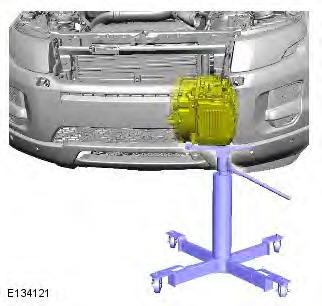

General Equipment: Transmission jack

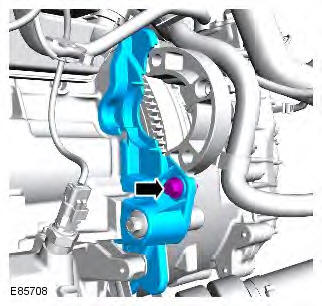

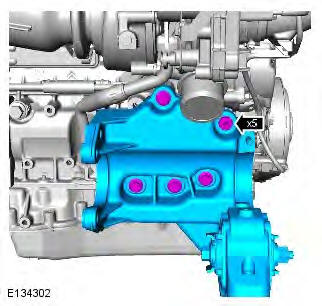

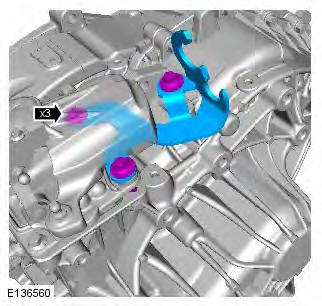

39.

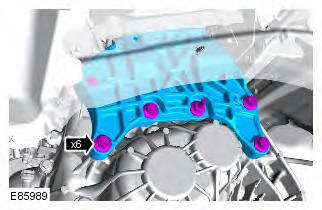

40.
41.
42.
43.

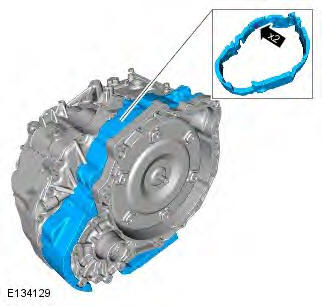

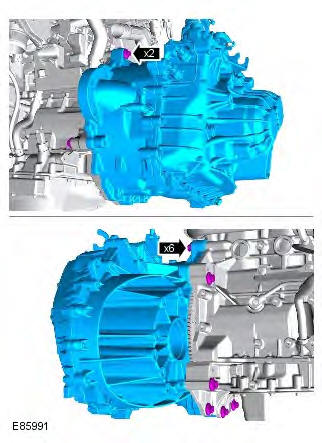

44. CAUTIONS: On removal and installation of the transmission, make sure that the transsmission does not damage the brake pipe.
Make sure that the dowels are still located on the engine and not the transmission.

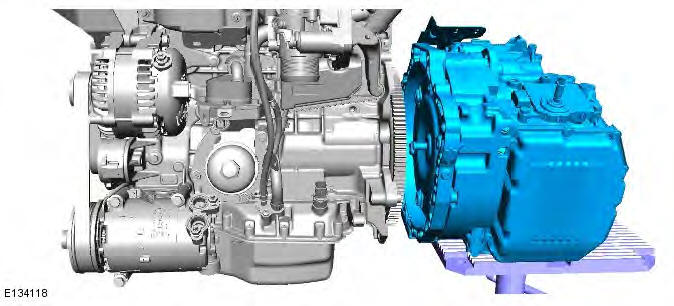

NOTE: Automatic transmission shown, manual is similar.

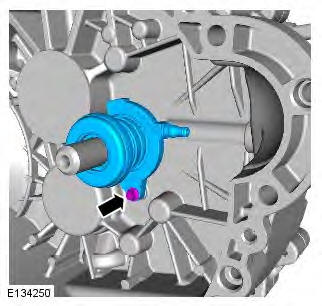

45. CAUTIONS: If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.
Make sure that all openings are sealed. Use new blanking caps.
Do not disassemble further if removed for access only

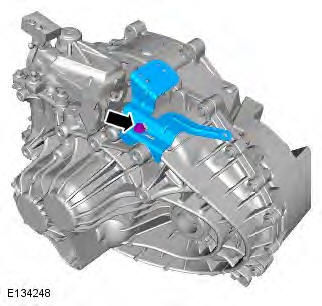

46.
47.
48.
