Range Rover Evoque: Wheel Knuckle Rear Bushing
Special Tool(s)
204-620-01
Installer, Wheel Knuckle Bushing
204-620-02
Remover/Installer, Wheel Knuckle Bushing
204-620-03
Remover, Wheel Knuckle Bushing
LR-121
Hydraulic Cylinder 10t
Removal
1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.
2. Remove the wheel and tire.
Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

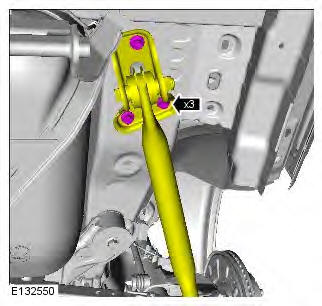

3.

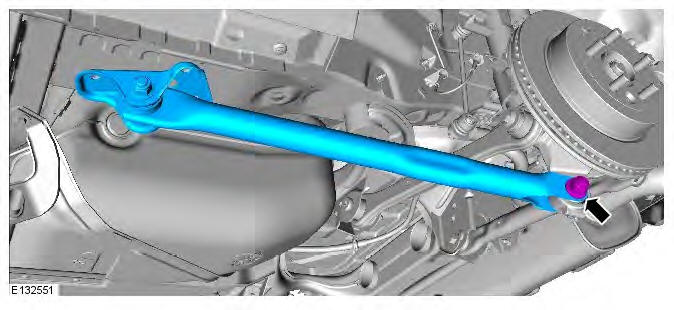

4.

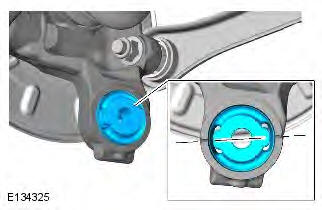

5. CAUTION: Note the position of the component and mark the surrounding area to aid installation.
6. Remove the bushing.

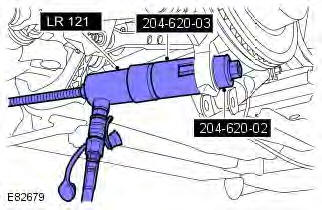

Special Tool(s): LR-121, 204-620-02, 204-620-03
Installation
1. CAUTION: Make sure that the component is installed to the position noted on removal.
2. CAUTION: Make sure the correct special tool is used to install the bushings to the correct depth.
Install the bushing.

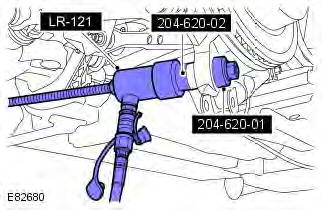

Special Tool(s): LR-121, 204-620-01, 204-620-02
3. Torque: 270 Nm
4. Torque: 110 Nm
5. Install the wheel and tire.
Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).
