Range Rover Evoque: Engine - Removal and Installation
Removal
Special Tool(s)
205-857
Remover, Halfshaft
1. Refer to: Battery Tray (414-01 Battery, Mounting and Cables, Removal and Installation).

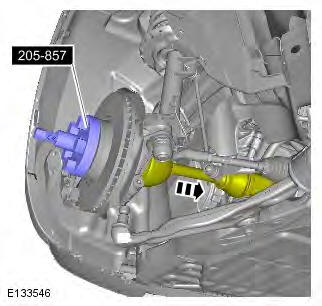

2. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - GTDi 2.0L Petrol (412-00 Climate Control System - General Information, General Procedures).
3. Refer to: Cooling System Draining, Filling and Bleeding (303-03B Engine Cooling - GTDi 2.0L Petrol, General Procedures).
4. Refer to: Front Subframe (502-00 Uni-Body, Subframe and Mounting System, Removal and Installation).

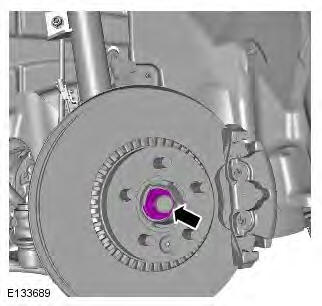

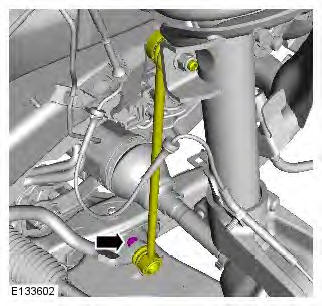

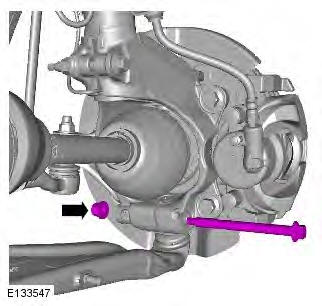

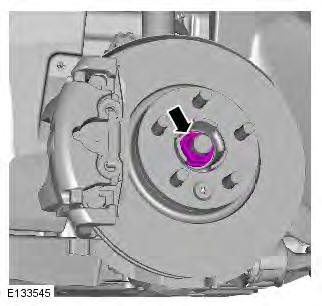

5. CAUTION: Discard the nut.
6. CAUTION: Discard the nut.

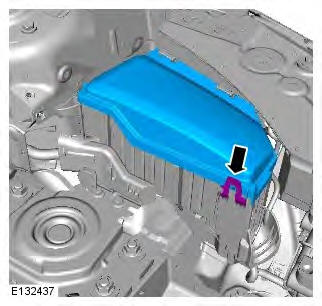

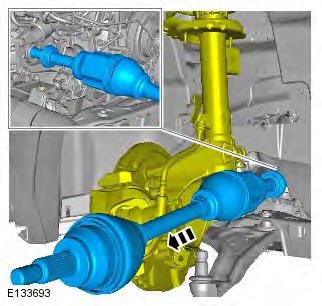

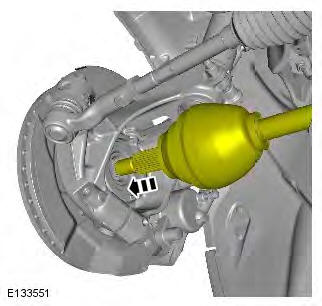

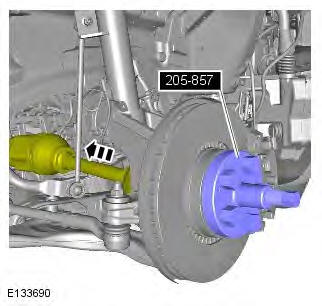

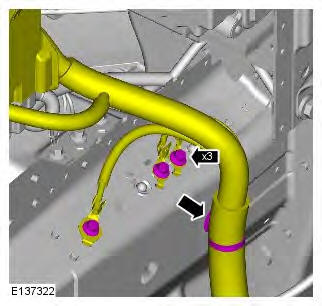

7. CAUTIONS:
Make sure that the driveshaft is supported with suitable retaining straps.

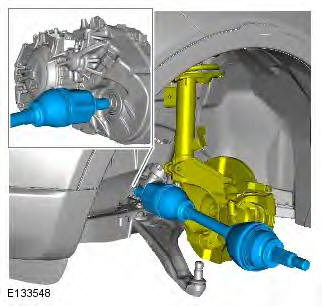

Do not use a hammer to detach the halfshaft from the hub assembly, failure to follow this instruction may result in damage to the halfshaft.
Special Tool(s): 205-857
8. WARNING: Be prepared to collect escaping fluids.

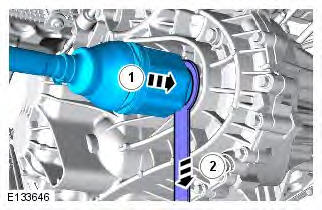

CAUTION: Keep the halfshaft horizontal to avoid damaging the oil seal.
9.

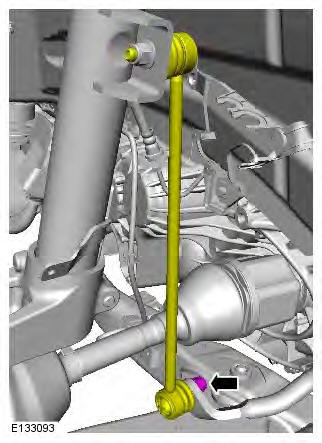

10. CAUTION: Discard the nut.
11. WARNING: Make sure that a new nut is installed.
CAUTION: Discard the nut.
12. CAUTIONS:
Make sure that the driveshaft is supported with suitable retaining straps.
Do not use a hammer to detach the halfshaft from the hub assembly, failure to follow this instruction may result in damage to the halfshaft.
Special Tool(s): 205-857

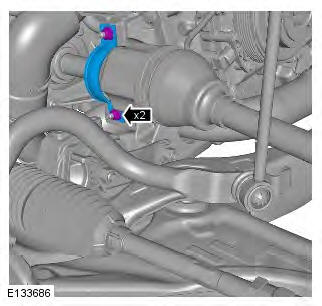

13.
14. WARNING: Be prepared to collect escaping fluids.
CAUTION: Keep the halfshaft horizontal to avoid damaging the oil seal.
15. Refer to: Engine Cover - GTDi 2.0L Petrol (501-05 Interior Trim and Ornamentation, Removal and Installation).
16. Refer to: Air Cleaner (303-12B Intake Air Distribution and Filtering - GTDi 2.0L Petrol, Removal and Installation).

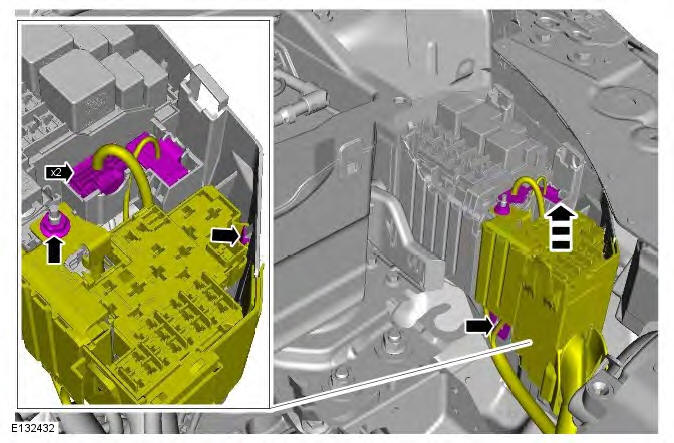

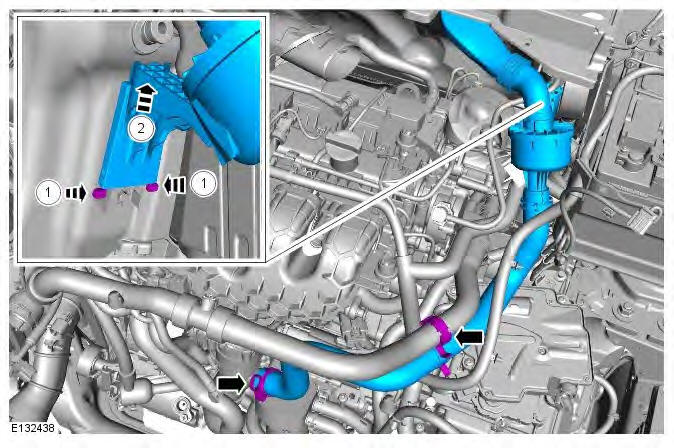

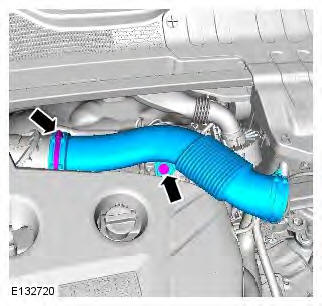

17.

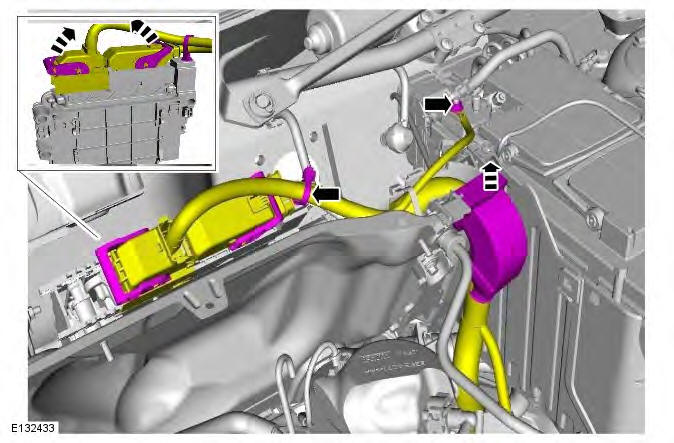

18.

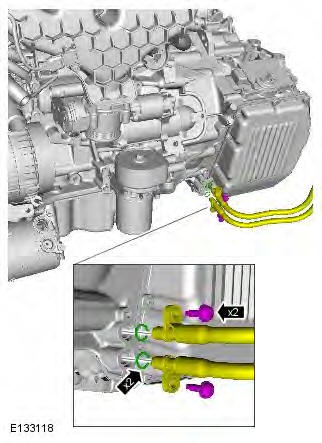

19. Refer to: Plenum Chamber (412-01 Climate Control, Removal and Installation).

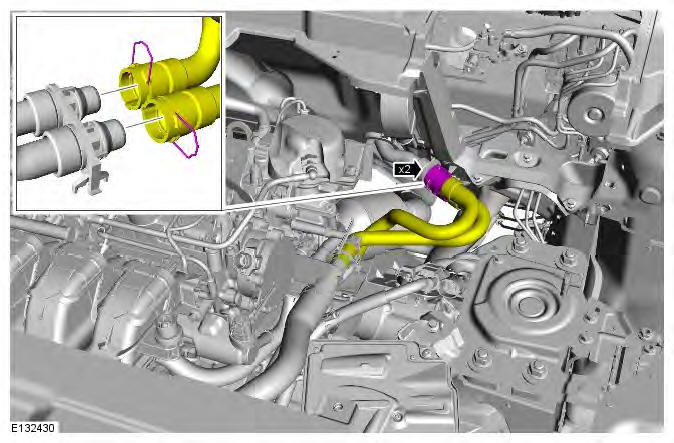

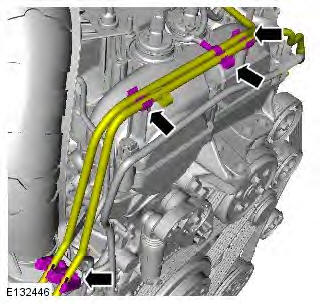

20.
21. WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable mixtures are always present and may ignite. Failure to follow these instructions may result in personal injury.
CAUTION: Make sure that all openings are sealed.
Use new blanking caps.
22. CAUTION: Be prepared to collect escaping fluids.

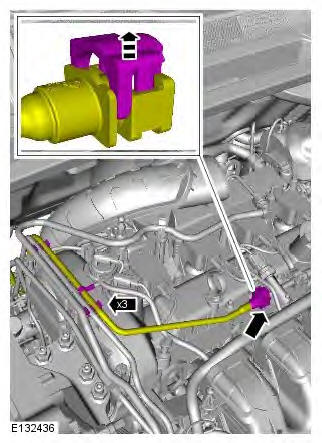

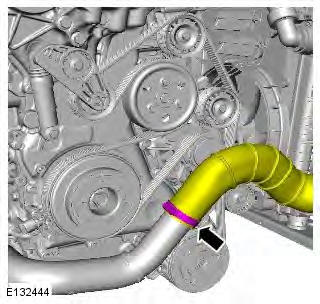

23.

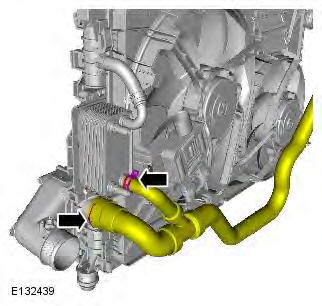

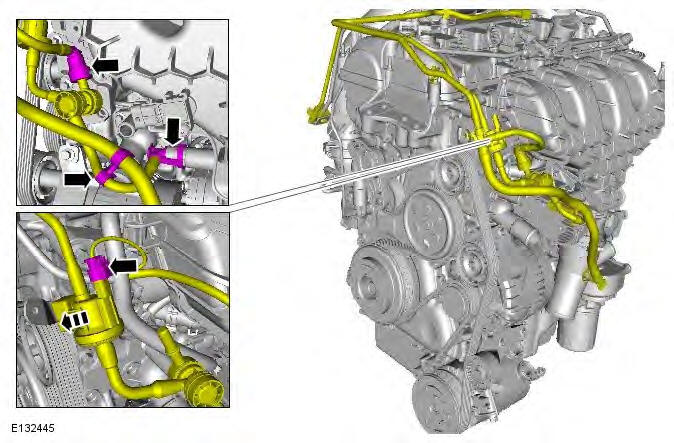

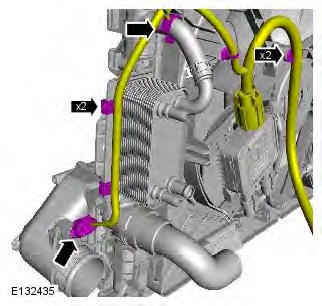

24.

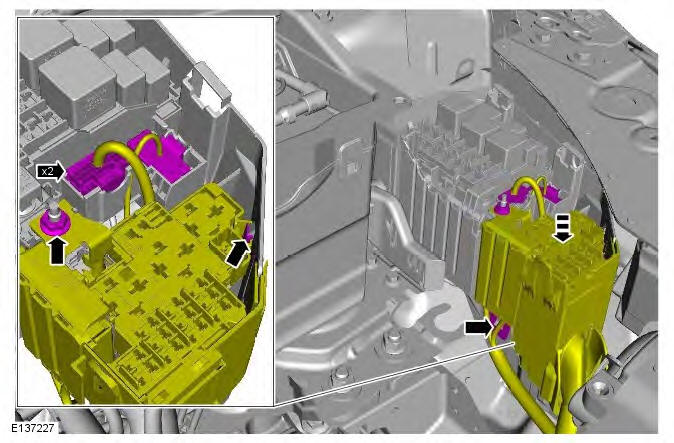

25.
26.
27.
28.
29.
30.

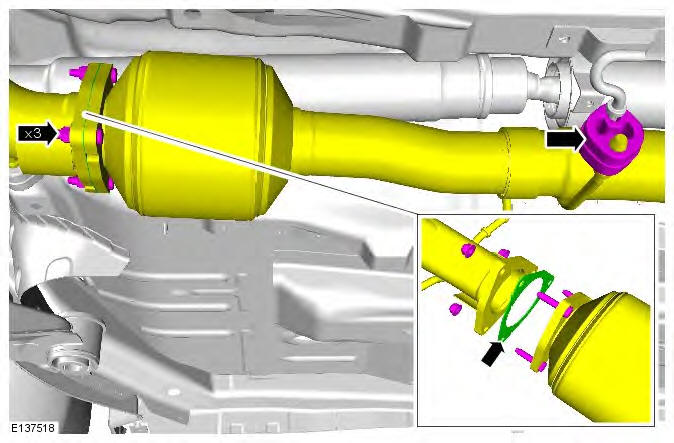

31. NOTE: Discard the gasket.

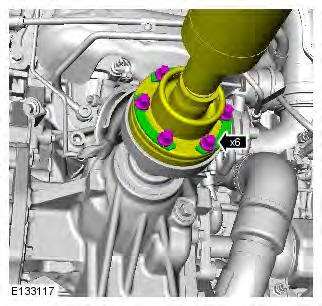

32. CAUTIONS:
To avoid damage to the joint or gaiter, do not allow the driveshaft to hang.
Mark the position of the driveshaft flange in relation to the drive pinion flange.
Make sure that the driveshaft is supported with suitable retaining straps.
33. WARNING: Be prepared to collect escaping fluid.
NOTE: Remove and discard the O-ring seals.

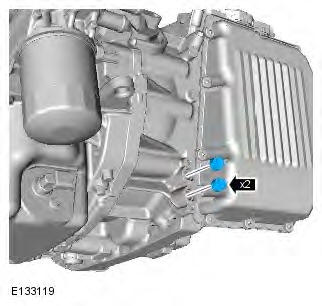

34. CAUTION: Make sure that all openings are sealed.
Use new blanking caps.

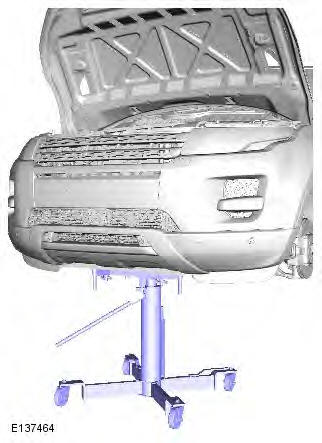

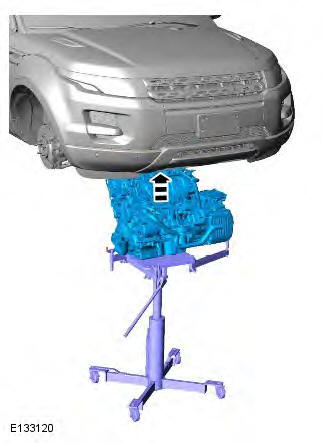

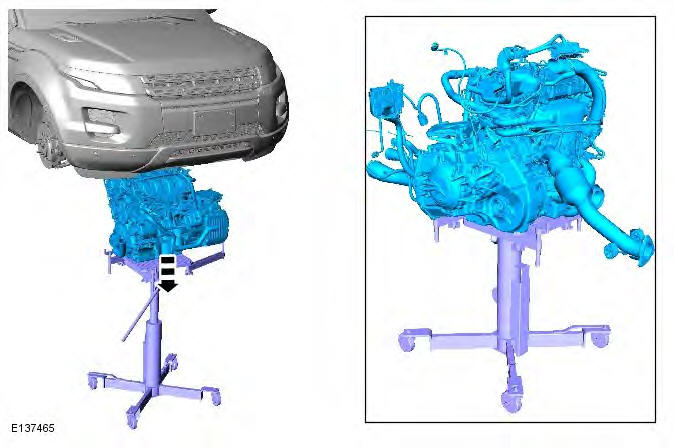

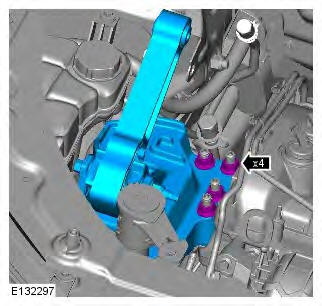

35. Using a suitable hydraulic platform, support the engine and transmission assembly.

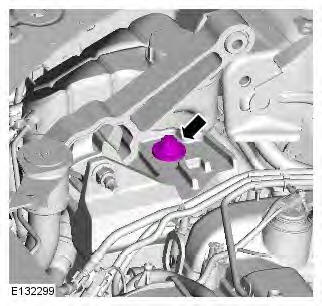

36.

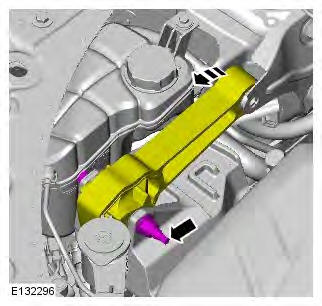

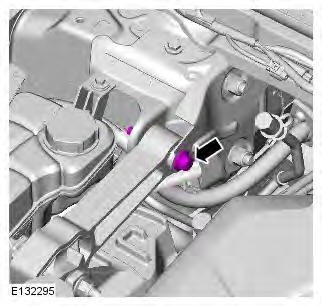

37. NOTE: Loosen the bolt, but do not fully remove.

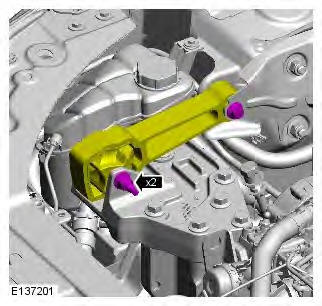

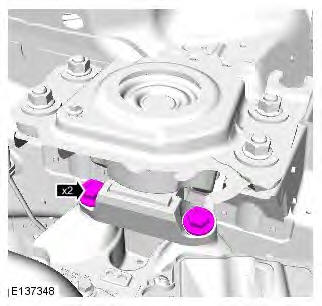

38.
39.

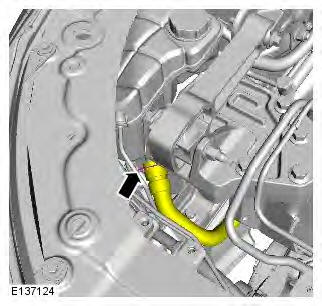

40. CAUTION: Be prepared to collect escaping coolant.
41.
42.
Installation
1.
2. Torque: 175 Nm
3.
4. Torque: 80 Nm
5. Torque: 80 Nm
6. Torque: 110 Nm
7. Remove the engine and transmission lifting equipment.
8. Remove the blanking plugs.
9. CAUTIONS:
Install new o-ring seals Make sure that the area around the component is clean and free of foreign material.
Torque: 10 Nm
10. CAUTION: The component must be aligned with the installation markings. Torque: 40 Nm
11. NOTE: Install a new gasket. Torque: 24 Nm
12.
13. Torque: 3 Nm
14.
15.
16. Torque: 8 Nm
17.

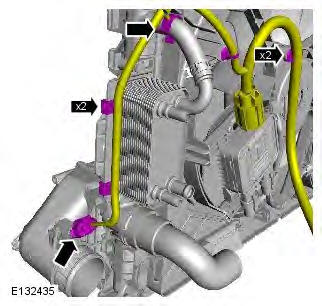

18.
19.
20.
21. WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable mixtures are always present and may ignite. Failure to follow these instructions may result in personal injury.
NOTE: Remove and discard all blanking caps.
22. Torque: 8 Nm
23. Refer to: Plenum Chamber (412-01 Climate Control, Removal and Installation).
24.
25. Torque: 10 Nm
26. Refer to: Air Cleaner (303-12B Intake Air Distribution and Filtering - GTDi 2.0L Petrol, Removal and Installation).
27. Refer to: Engine Cover - GTDi 2.0L Petrol (501-05 Interior Trim and Ornamentation, Removal and Installation).
28.

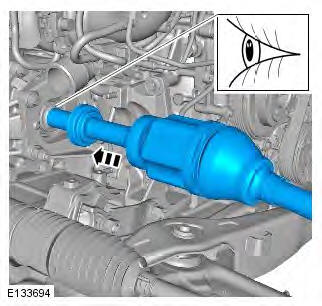

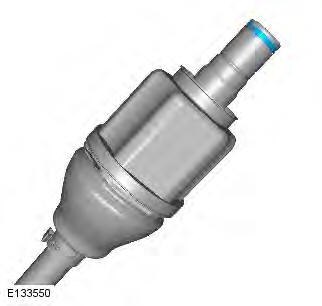

29. CAUTION: Keep the halfshaft horizontal to avoid damaging the oil seal.
NOTES:
Do not fully engage the halfshaft until the oil seal protector has been removed.
Manual transmission shown, automatic transmission is similar.
30.
31. WARNING: Make sure that a new nut is installed.
CAUTIONS:
Do not use air tools to install the nut. Failure to follow this instruction may result in damage to the component.
Install the halfshaft nut finger tight.
Torque: 120 Nm
32. WARNING: Make sure that a new nut is installed. Torque: 60 Nm
33. CAUTION: Keep the halfshaft horizontal to avoid damaging the oil seal.
34. CAUTION: LH illustration shown, RH is similar.
35. Torque: 25 Nm
36. WARNING: Make sure that a new nut is installed.
CAUTIONS:
Do not use air tools to install the nut. Failure to follow this instruction may result in damage to the component.
Install the halfshaft nut finger tight.
Torque: 120 Nm
37. WARNING: Make sure that a new nut is installed. Torque: 60 Nm
38. Refer to: Front Subframe (502-00 Uni-Body, Subframe and Mounting System, Removal and Installation).
39. Torque: 110 Nm
40. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - GTDi 2.0L Petrol (412-00 Climate Control System - General Information, General Procedures).
41. Refer to: Battery Tray (414-01 Battery, Mounting and Cables, Removal and Installation).
