Range Rover Evoque: Engine Mount LH/RH
Engine Mount LH
Removal
NOTES:
Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.
1. Disconnect the battery ground cable.
Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).
2. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.
3. Refer to: Engine Undershield (501-02 Front End Body Panels, Removal and Installation).
4. Using a suitable hydraulic jack, support the transmission.
5. Refer to: Air Cleaner (303-12B Intake Air Distribution and Filtering - GTDi 2.0L Petrol, Removal and Installation).
6. Refer to: Battery Tray (414-01 Battery, Mounting and Cables, Removal and Installation).

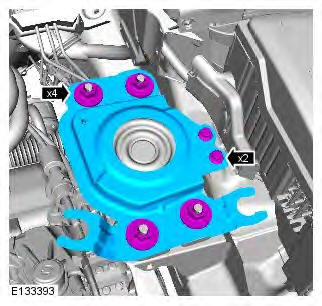

7. Torque:
- M12 80 Nm
- M8 25 Nm

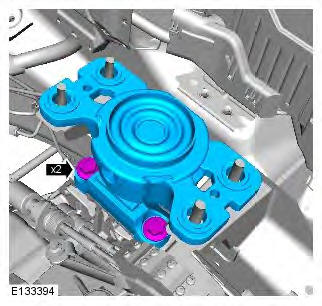

8. Torque: 175 Nm
Installation
1. To install, reverse the removal procedure.
Engine Mount RH
Removal
NOTE: Removal steps in this procedure may contain installation details.
1. Refer to: Engine Undershield (501-02 Front End Body Panels, Removal and Installation).
2. Refer to: Engine Cover - GTDi 2.0L Petrol (501-05 Interior Trim and Ornamentation, Removal and Installation).
3. Support the engine.

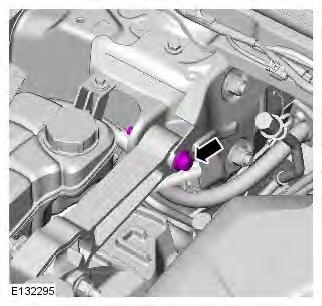

4. Torque: 110 Nm

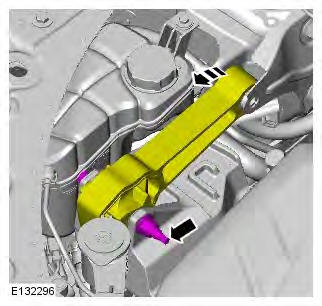

5. NOTE: Loosen the bolt, but do not fully remove. Torque: 110 Nm

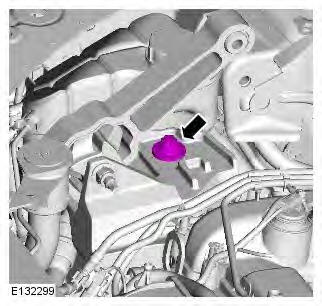

6. Torque: 80 Nm
7. Torque: 80 Nm

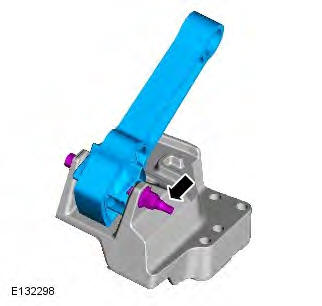

8. NOTE: Do not disassemble further if the component is removed for access only. Torque: 110 Nm
Installation
1. To install, reverse the removal procedure.
Flexplate
Removal
1. Refer to: Transmission - GTDi 2.0L Petrol (307-01 Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission, Removal).

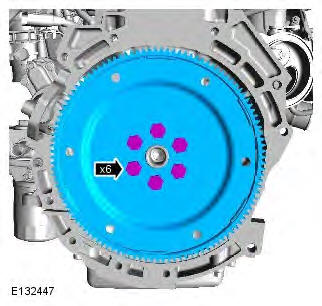

2.
Installation
1. CAUTION: Make sure that new bolts are installed.

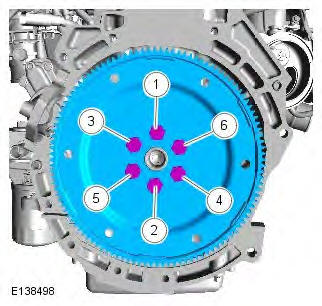

NOTE: Tighten the retaining bolts in the sequence shown.
- Torque: 112 Nm
2. Refer to: Transmission - GTDi 2.0L Petrol (307-01 Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission, Removal).
