Range Rover Evoque: Steering Gear

Special Tool(s)

205-754A
Splitter, Ball Joints

502-012
Alignment Pins, Subframe

General Equipment

Removal

CAUTION: Nuts and bolts must be tightened with the weight of the vehicle on the suspension.

NOTES:

Removal steps in this procedure may contain installation details.

LHD illustration shown, RHD is similar.

All vehicles

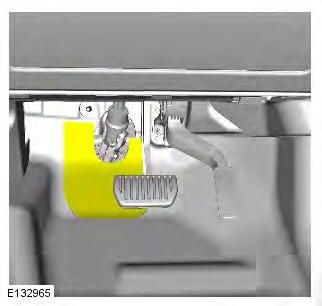

1.

Range Rover Evoque. Power Steering

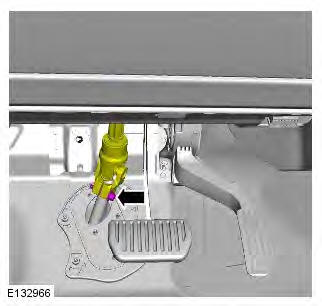

2. WARNING: Make sure that a new steering column flexible coupling bolt is installed. Torque: 25 Nm

Range Rover Evoque. Power Steering

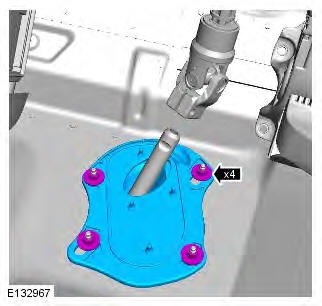

3. WARNING: Make sure that new nuts are installed.

CAUTION: Make sure that the specified torque is not exceeded, or the retaining studs may shear and damage the body panel. Torque: 2.8 Nm

Range Rover Evoque. Power Steering

4. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

5. Repeat for the other wheel.

Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

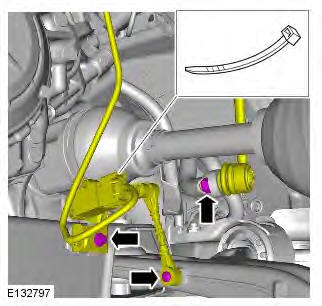

6.

Range Rover Evoque. Power Steering

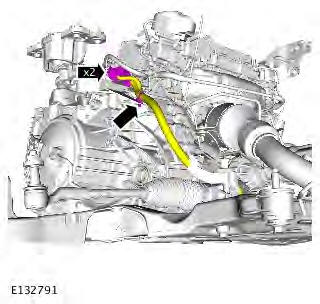

7. Torque: 12 Nm

Range Rover Evoque. Power Steering

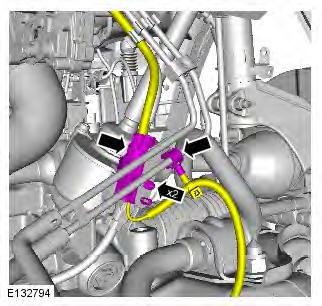

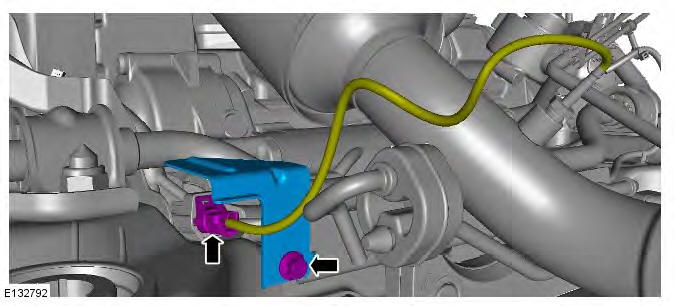

8.

Range Rover Evoque. Power Steering

Vehicles with diesel particulate filter (DPF)

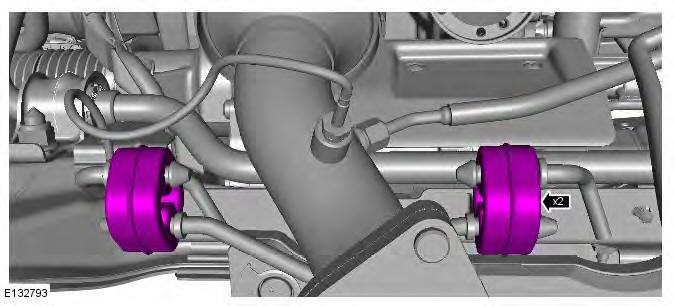

9.

Range Rover Evoque. Power Steering

All vehicles

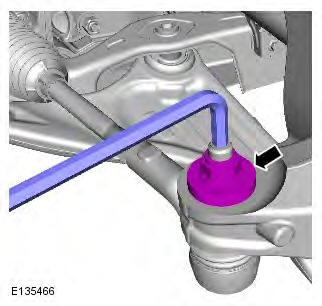

10. WARNING: Make sure that a new nut is installed.

CAUTION: Make sure that the ball joint ball does not rotate.

Range Rover Evoque. Power Steering

11. WARNING: Make sure that a new nut is installed.

CAUTION: Make sure that the ball joint ball does not rotate.

Range Rover Evoque. Power Steering

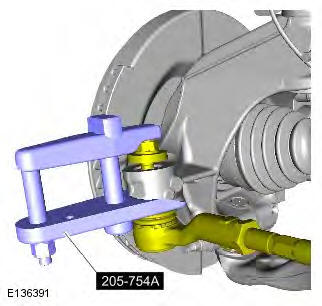

12. CAUTION: Make sure that the ball joint seal is not damaged.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Range Rover Evoque. Power Steering

13. Torque: 110 Nm

Range Rover Evoque. Power Steering

14.

Range Rover Evoque. Power Steering

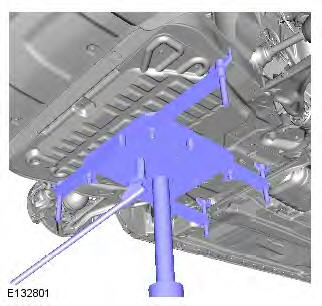

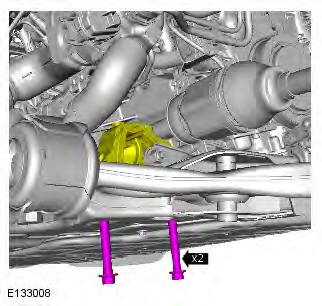

15. General Equipment: Transmission jack

Range Rover Evoque. Power Steering

16.

Range Rover Evoque. Power Steering

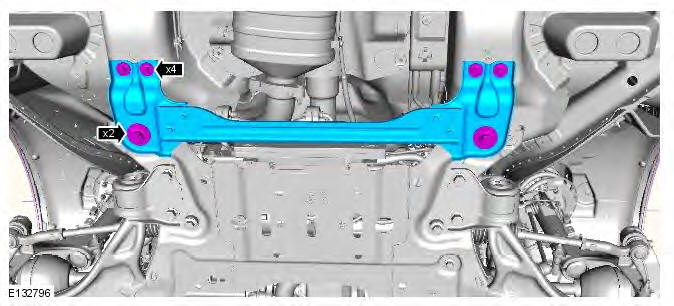

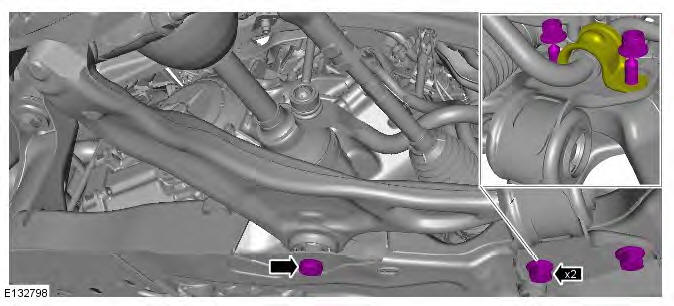

17. CAUTION: Make sure that new subframe bolts are installed.

Torque:
