Range Rover Evoque: Rear Quarter Window Glass 3-Door

Land Rover Range Rover Evoque L538 (2011–2018) Service Manual / Body and Paint / Glass, Frames and Mechanisms / Rear Quarter Window Glass 3-Door

Removal

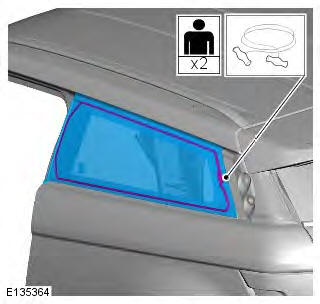

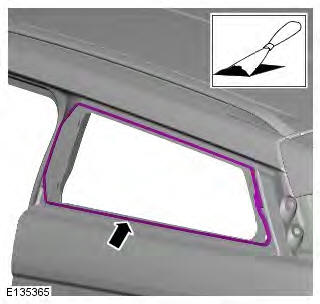

1. Refer to: Rear Quarter Panel Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).

2. Refer to: B-Pillar Upper Trim Panel - 3-Door (501-05 Interior Trim and Ornamentation, Removal and Installation).

3. Refer to: D-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

4. Refer to: Rear Quarter Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

5.

Range Rover Evoque. Glass, Frames and Mechanisms

6.

Range Rover Evoque. Glass, Frames and Mechanisms

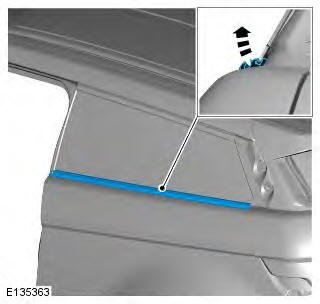

7. CAUTIONS:

Protect the surrounding components.

Protect the surrounding paintwork to avoid damage.

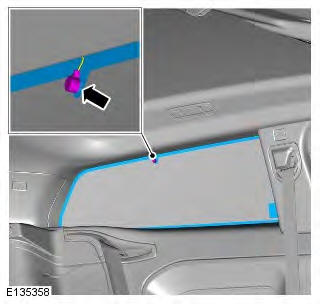

Pull glazing wire through windshield sealant to the inside of the vehicle.

Range Rover Evoque. Glass, Frames and Mechanisms

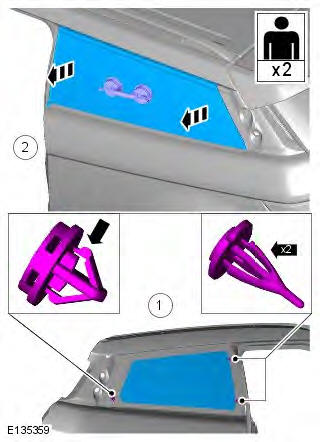

8. NOTE: This step requires the aid of another technician.

Range Rover Evoque. Glass, Frames and Mechanisms

Installation

1. CAUTIONS:

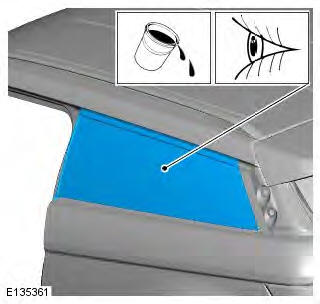

Make sure that the mating faces are clean and free of foreign material.

Correct preparation of body apertures 'post painting' to ensure satisfactory glass adhesion, must be carried out in line with industry practise.

Range Rover Evoque. Glass, Frames and Mechanisms

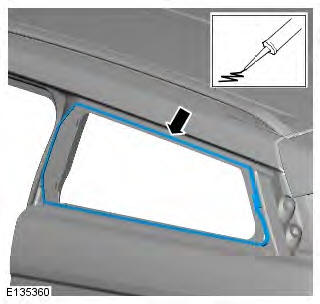

2. NOTE: Make sure that a Hi-modulus sealer (for example, Wurth Ultimate adhesive) is used when bonding the component to the vehicle.

Prepare the window glass, window glass flange and trimmed PU adhesive in accordance with the instructions included with the PU adhesive kit.

Range Rover Evoque. Glass, Frames and Mechanisms

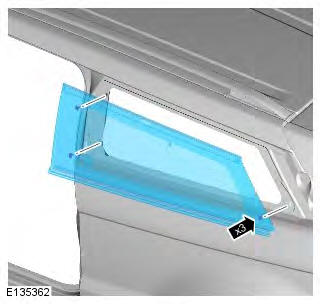

3.

Range Rover Evoque. Glass, Frames and Mechanisms

4. Test the sealer for leaks, apply additional sealer if necessary. If water is used, allow sealer to dry before testing. Spray water around the glass and check for leaks. Mark any area that leaks. Dry the glass and sealer then apply additional sealer.

Range Rover Evoque. Glass, Frames and Mechanisms

5. To install, reverse the removal procedure.
