Range Rover Evoque: Glass Roof Panel Blind

Land Rover Range Rover Evoque L538 (2011–2018) Service Manual / Body and Paint / Glass, Frames and Mechanisms / Glass Roof Panel Blind

Removal

CAUTION: When removing and installing the glass roof panel blind, extreme cleanliness must be observed at all times.

NOTE: Removal steps in this procedure may contain installation details.

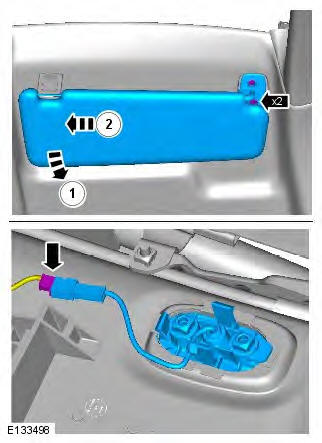

All vehicles

1. NOTE: The procedure must be carried out on both sides. Refer to: A-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

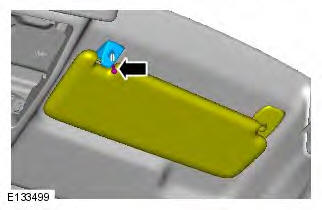

3-door

2. NOTE: The procedure must be carried out on both sides. Refer to: B-Pillar Upper Trim Panel - 3-Door (501-05 Interior Trim and Ornamentation, Removal and Installation).

5-door

3. NOTE: The procedure must be carried out on both sides. Refer to: B-Pillar Upper Trim Panel - 5-Door (501-05 Interior Trim and Ornamentation, Removal and Installation).

4. NOTE: The procedure must be carried out on both sides. Refer to: C-Pillar Upper Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

All vehicles

5. NOTE: The procedure must be carried out on both sides. Refer to: D-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

6. Refer to: Overhead Console (501-12 Instrument Panel and Console, Removal and Installation).

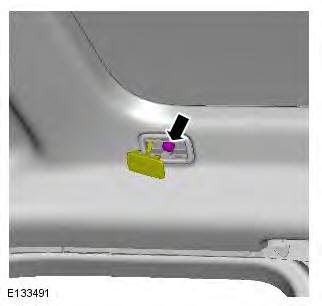

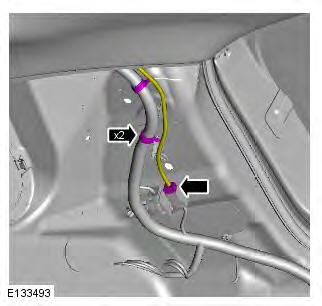

7. NOTE: The step must be carried out on both sides.

Range Rover Evoque. Glass, Frames and Mechanisms

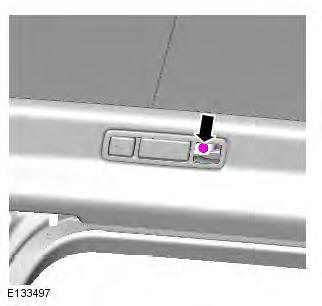

8. NOTE: The step must be carried out on both sides.

Range Rover Evoque. Glass, Frames and Mechanisms

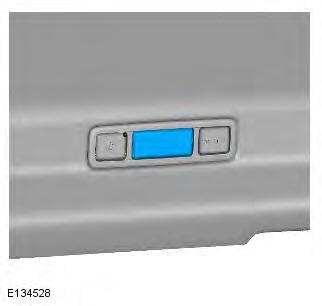

9. NOTE: The step must be carried out on both sides.

Range Rover Evoque. Glass, Frames and Mechanisms

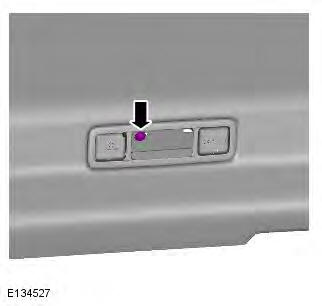

10. NOTE: The step must be carried out on both sides.

Range Rover Evoque. Glass, Frames and Mechanisms

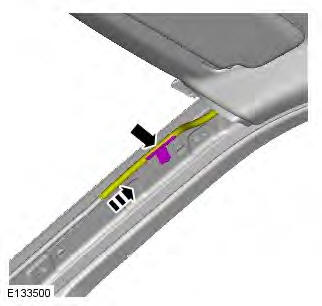

11.

Range Rover Evoque. Glass, Frames and Mechanisms

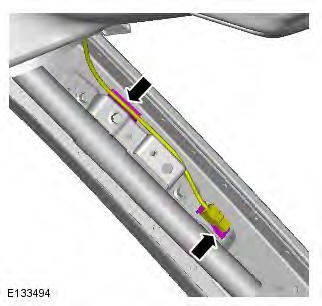

12.

Range Rover Evoque. Glass, Frames and Mechanisms

13. NOTE: The procedure must be carried out on both sides.

Range Rover Evoque. Glass, Frames and Mechanisms

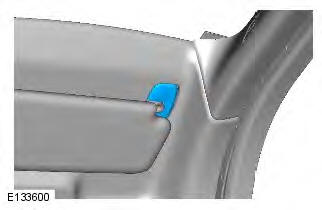

14. NOTE: The step must be carried out on both sides.

Range Rover Evoque. Glass, Frames and Mechanisms

15. NOTE: The step must be carried out on both sides.

Range Rover Evoque. Glass, Frames and Mechanisms

16.

Range Rover Evoque. Glass, Frames and Mechanisms

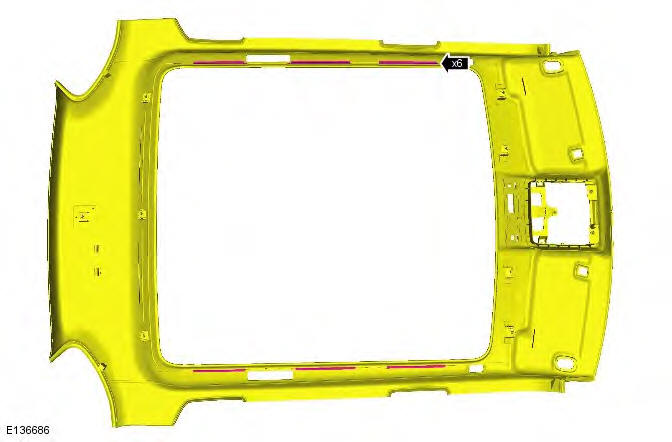

17. CAUTION: Do not use excessive force to release the headliner from the side retaining brackets.

NOTE: Headliner shown removed for clarity.

Range Rover Evoque. Glass, Frames and Mechanisms

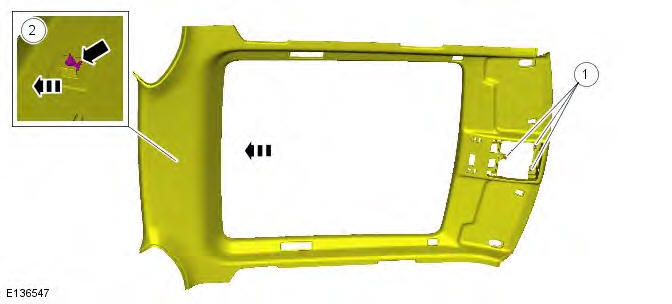

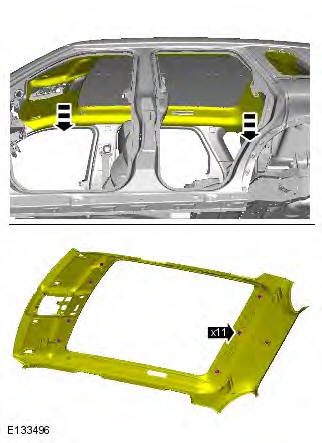

18. CAUTION: Extra care must be taken at this point, as the headliner is still retained by a locating clip at the rear and the 3 retaining clips at the front.

NOTE: This step requires the aid of another technician.

Release the headliner retaining clips.

Range Rover Evoque. Glass, Frames and Mechanisms

19. NOTES:

Headliner shown removed for clarity.

This step requires the aid of another technician.

Range Rover Evoque. Glass, Frames and Mechanisms

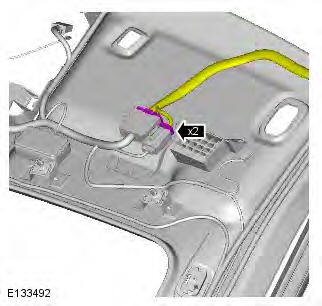

20.

Range Rover Evoque. Glass, Frames and Mechanisms

21. Lower the headliner for access.

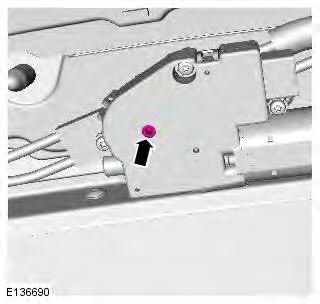

22. Using a suitable tool, rotate the glass roof panel blind motor to adjust the blind.

Range Rover Evoque. Glass, Frames and Mechanisms

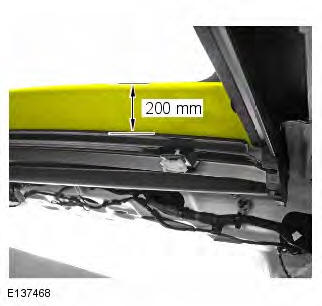

23. Position the glass roof panel blind 200mm from the rear bracket.

Range Rover Evoque. Glass, Frames and Mechanisms

24. CAUTION: Make sure that extreme cleanliness is observed with the following steps.

NOTE: The step must be carried out on both sides.

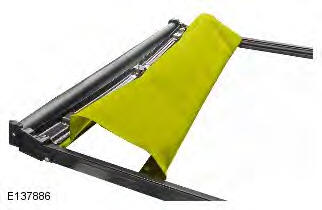

Position the glass roof panel blind fabric to one side to access the retaining tangs on the feet.

Range Rover Evoque. Glass, Frames and Mechanisms

25.

Range Rover Evoque. Glass, Frames and Mechanisms

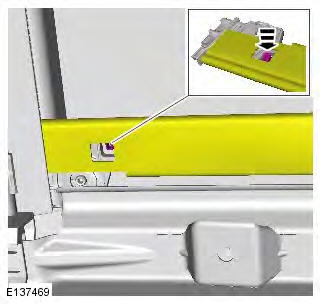

26. NOTE: The step must be carried out on both sides. Release the locking tang from the top of the glass roof panel blind.

Range Rover Evoque. Glass, Frames and Mechanisms

27.

Range Rover Evoque. Glass, Frames and Mechanisms

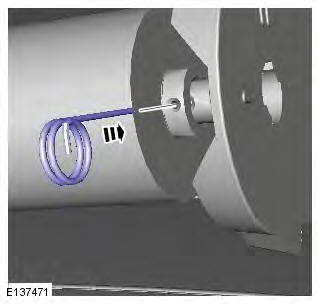

28. NOTES:

Make sure that the alignment marks are correctly aligned to remove the collet.

Discard the component.

Use a suitable tool, remove the collet.

Range Rover Evoque. Glass, Frames and Mechanisms

29.

Range Rover Evoque. Glass, Frames and Mechanisms

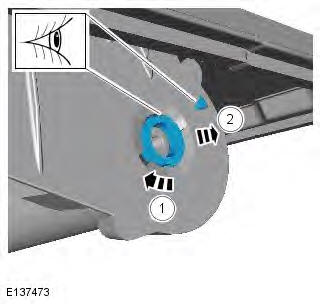

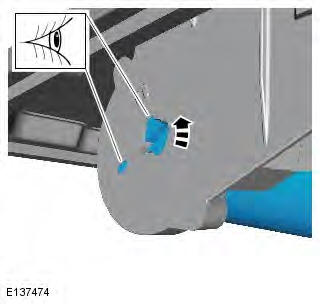

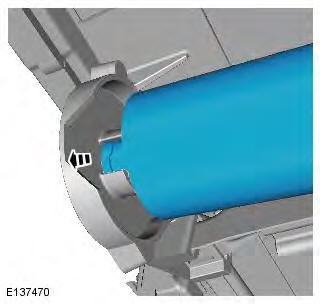

30. NOTE: Make sure that the alignment mark and glass roof panel blind are correctly aligned to remove the glass roof panel blind.

Rotate the glass roof panel blind until the blind tang is aligned to the mark, as illustrated.

Range Rover Evoque. Glass, Frames and Mechanisms

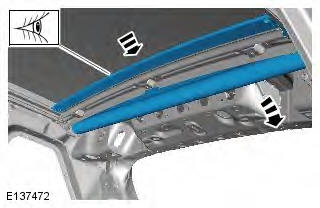

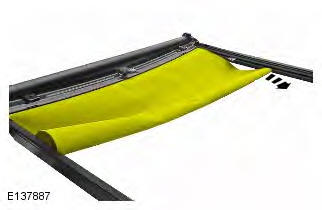

31. CAUTION: Care must be taken when feeding the blind behind the roof panel bracket.

Range Rover Evoque. Glass, Frames and Mechanisms

Installation

1. CAUTION: When removing and installing the glass roof panel blind, extreme cleanliness must be observed at all times.

NOTE: Install new components where necessary.

To install, reverse the removal procedure.
