Removal
NOTES:
Some variation in the illustrations may occur, but the essential information is always correct.
Removal steps in this procedure may contain installation details.
1. Raise the front seat to the highest position.
2. Disconnect the battery ground cable.
Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).
3. WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute. Failure to follow this instruction may result in personal injury.
Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).
4. Refer to: Front Seat (501-10 Seating, Removal and Installation).

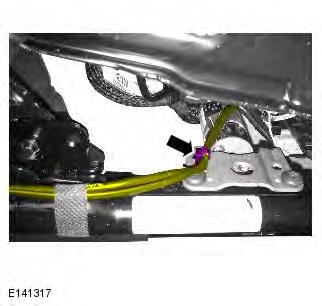

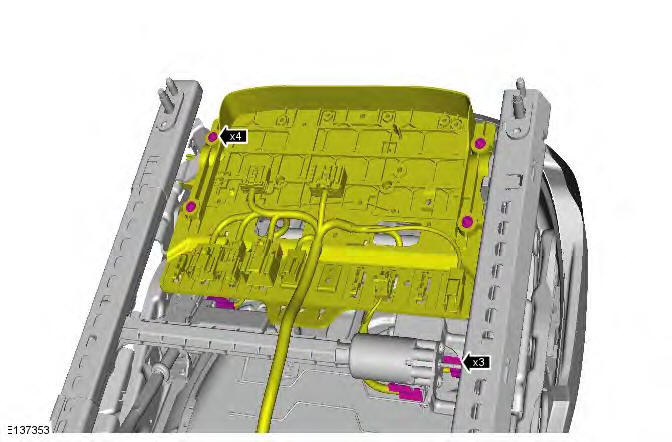

5.
6.

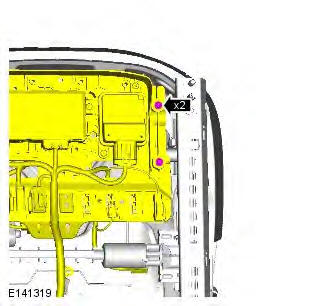

7. Torque: 10 Nm

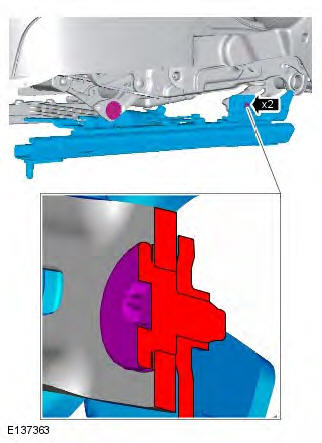

8. NOTES:
Front seat track shown removed for clarity.
Install the rear reatining bolt first.
Torque: 28 Nm

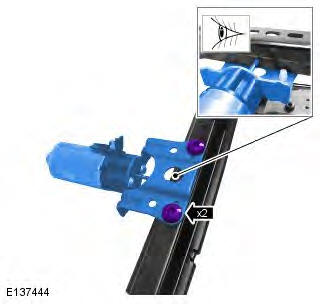

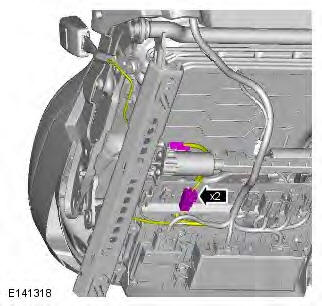

9. NOTE: Note the orientation of the electrical connetor and wiring harness.

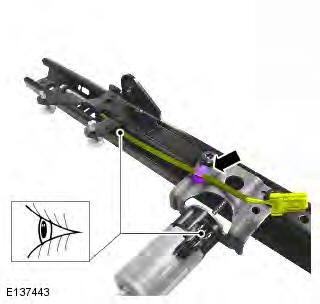

10. NOTES:
Make a note of the orientation of the front seat track motor cable.
Do not remove the front seat track motor cable guide or cable from the seat frame.
Torque: 10 Nm

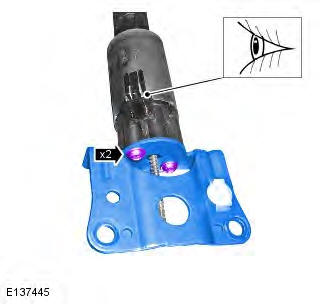

11. NOTE: Make a note of the orientation of the electrical connector.
Torque: 1.7 Nm
Installation

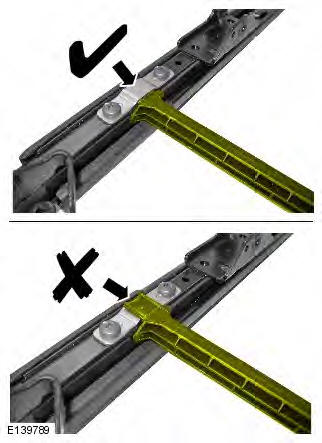

1. CAUTIONS:
Make sure that the front seat track motor is correctly installed to the front seat track.
Make sure that these components are installed to the noted removal position.
2. To install, reverse the removal procedure.
Front Seat Tilt Motor
Removal
NOTE: Removal steps in this procedure may contain installation details.
1. Raise the front seat to the highest position.
2. Disconnect the battery ground cable.
Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).
3. WARNING: To avoid accidental deployment, the restraints control module backup power supply must be depleted. Wait at least two minutes after disconnecting the battery ground cable(s) before commencing any repair or adjustment to the supplemental restraint system (SRS), or any component(s) adjacent to the SRS sensors.
Failure to follow these instructions may result in personal injury.
Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).
4. Refer to: Front Seat (501-10 Seating, Removal and Installation).
5. Torque: 10 Nm

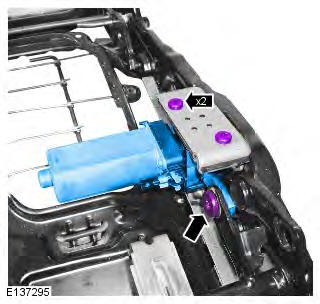

6. NOTE: Front seat track shown removed for clarity.
Torque:
Bolt 22 Nm
Screws 10 Nm
Installation
1. To install, reverse the removal procedure.
