Range Rover Evoque: Front Seat Cushion Cover
Removal
NOTE: Removal steps in this procedure may contain installation details.
All vehicles
1. Prior to carrying out the step by step procedure below, Steps 2 and 3 must be followed for knowledge on how to correctly install and care for the seat cover.
2.
3.
4. If required, follow the steps below to carry out the removal and installation procedure.
5. Disconnect the battery ground cable.
Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).
6. Refer to: Front Seat Control Switch (501-10 Seating, Removal and Installation).
7. Refer to: Front Seat (501-10 Seating, Removal and Installation).

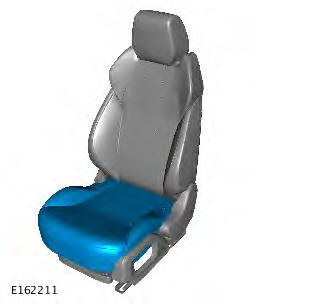

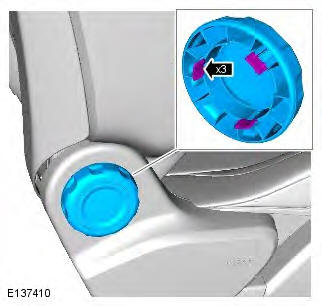

8. NOTE: If equipped.

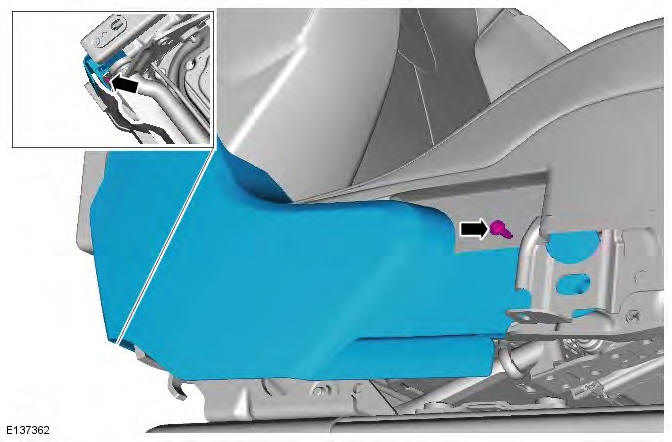

9.

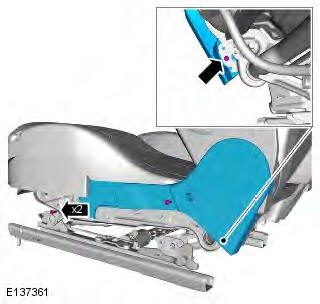

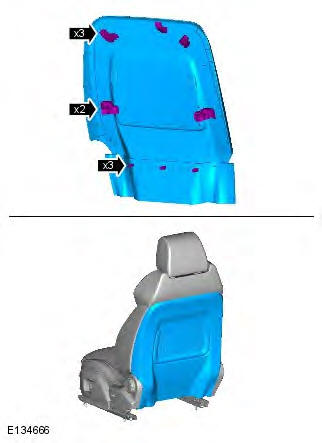

10.

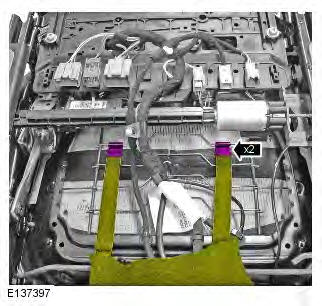

11.
12.
Vehicles with heated front seats

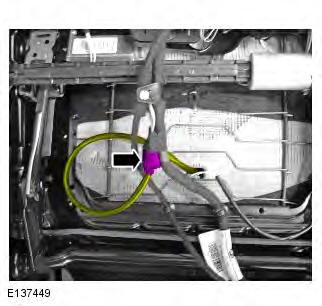

13. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
Non NAS vehicles

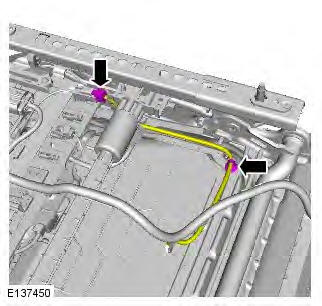

14. CAUTION: Make sure the component is aligned as shown.
All vehicles

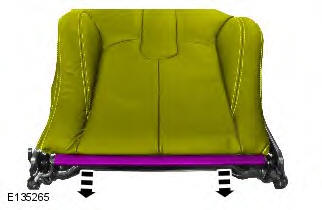

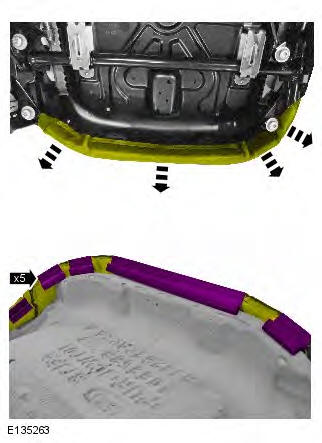

15.

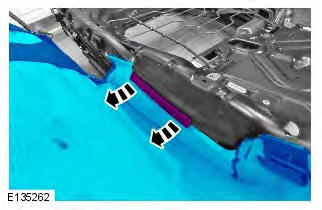

16.
17.

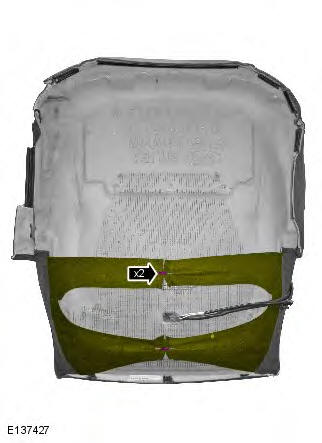

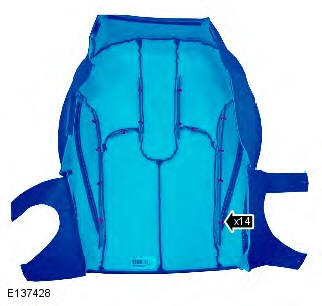

18. WARNING: Wear safety goggles and protective gloves.
19. WARNING: Wear safety goggles and protective gloves.
Installation
1. NOTES:
Make sure that new hog rings are installed.

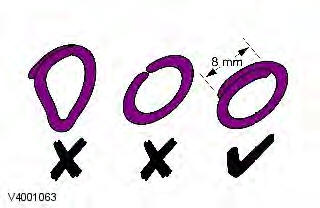

Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed to overlap as illustrated.

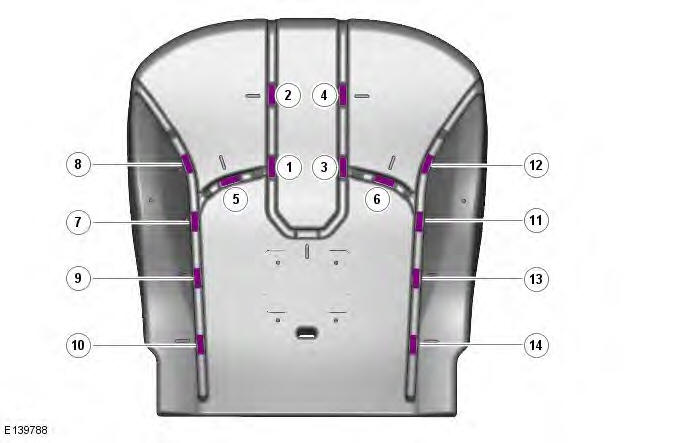

2. NOTE: Make sure that the hogrings are installed in the sequence shown.
3. To install, reverse the removal procedure.
