Removal
WARNINGS:
To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute. Failure to follow this instruction may result in personal injury.
Never probe the electrical connectors of air bag modules or any other supplemental restraint system component.
Failure to follow this instruction may result in personal injury.
NOTE: Removal steps in this procedure may contain installation details.
All vehicles
1. Prior to carrying out the step by step procedure below, Steps 2 and 3 must be followed for knowledge on how to correctly install and care for the seat cover.

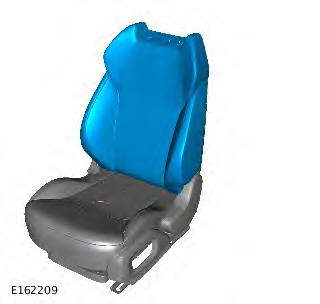

2.
3.
4. If required, follow the steps below to carry out the removal and installation procedure.
5. Disconnect the battery ground cable.
Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).
6. Make the SRS system safe.
Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).
7. Refer to: Front Seat Control Switch (501-10 Seating, Removal and Installation).
8. Refer to: Front Seat (501-10 Seating, Removal and Installation).

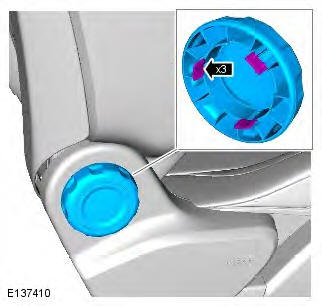

9. NOTE: If equipped.

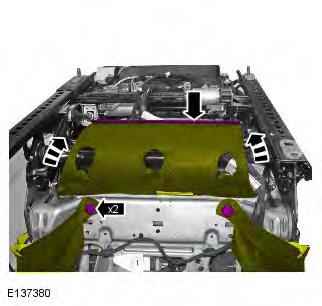

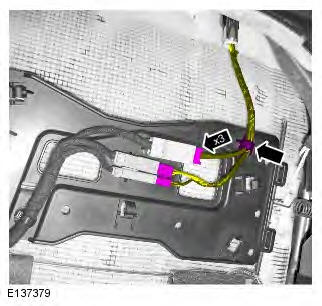

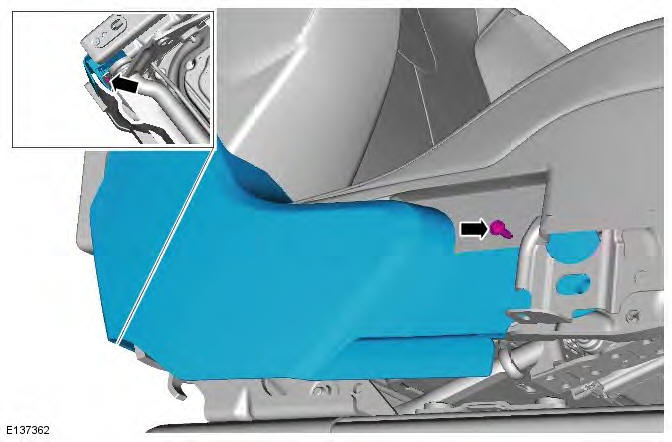

10.

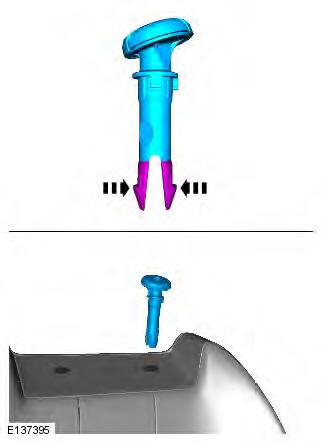

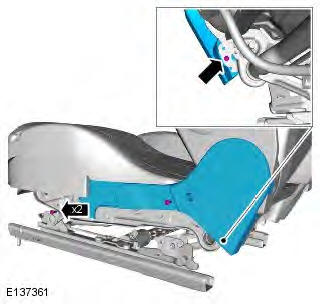

11.

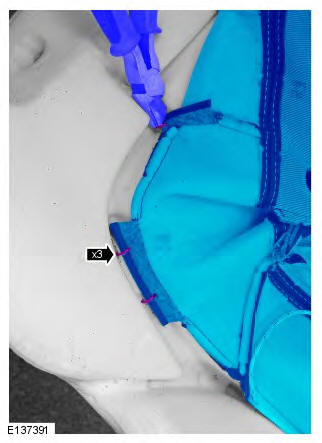

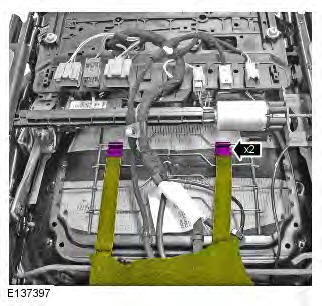

12.

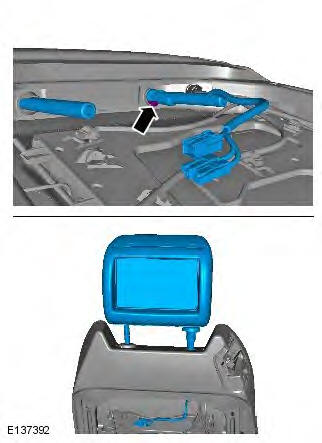

13.

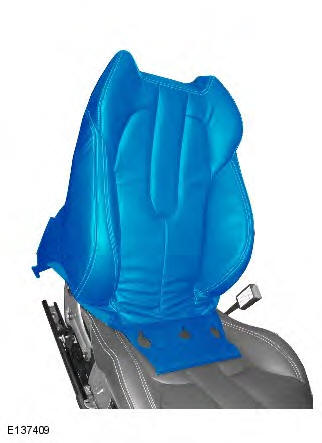

14.

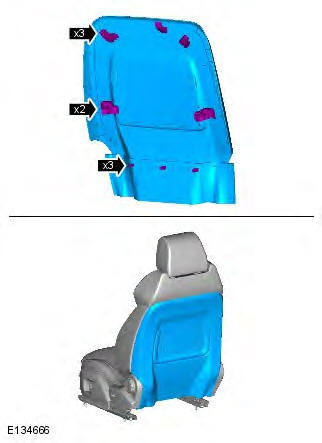

15.

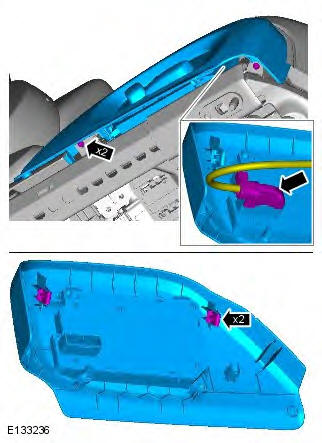

16.
3-door
17. NOTE: Using suitable tools remove the front seat release lever.
All vehicles

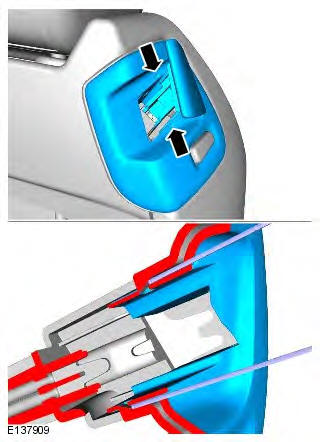

18.

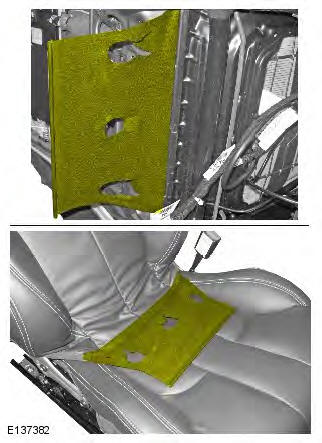

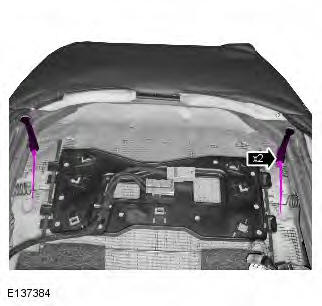

19.

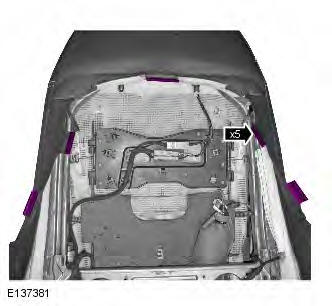

20.

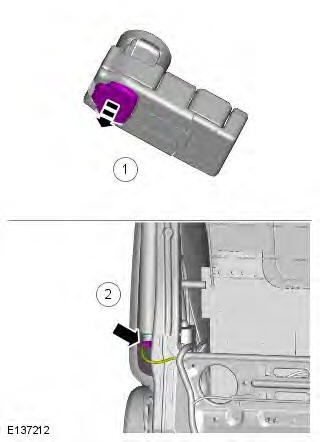

21. WARNING: The SRS electrical connectors are unique. DO NOT force, or attempt to connect electrical connectors to the wrong sockets.

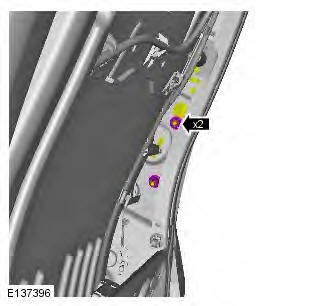

22. WARNING: Make sure that the air bag is correctly installed in to the fabric chute. Failure to follow this instruction may result in incorrect operation of the air bag.
Torque: 7 Nm

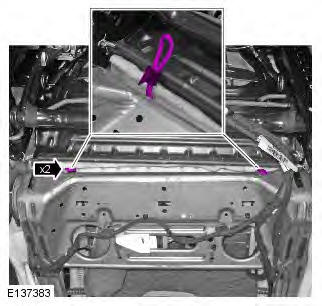

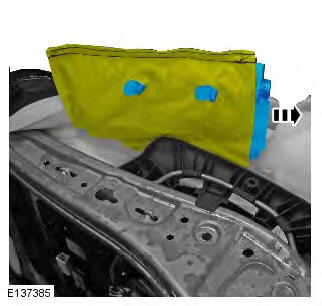

23.
24.
25.
Vehicles with heated front seats
26.
27.
All vehicles

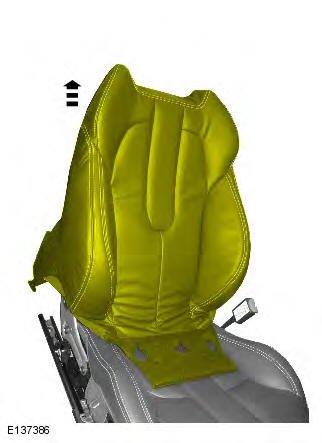

28.

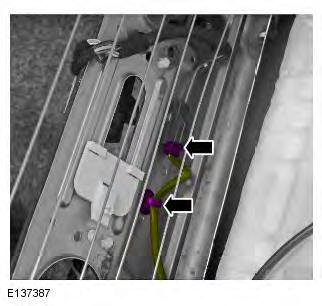

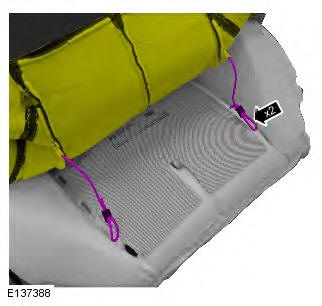

29.

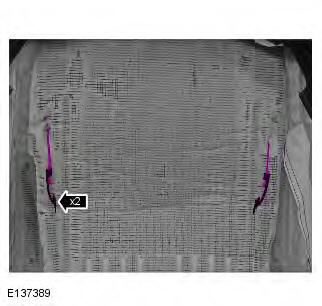

30.

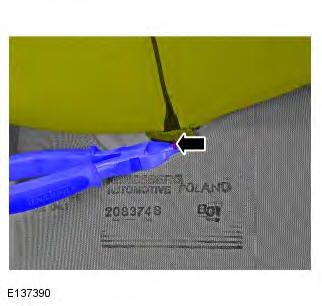

31. WARNING: Wear safety goggles and protective gloves.
32. WARNING: Wear safety goggles and protective gloves.
Installation
1. NOTES:
Make sure that new hog rings are installed.

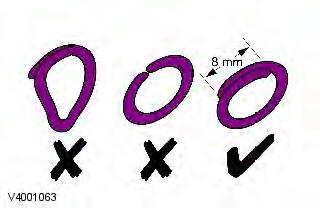

Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed to overlap as illustrated.

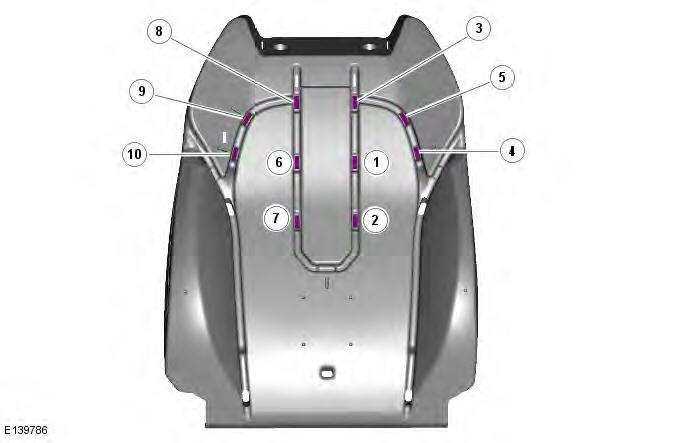

2. NOTE: Make sure that the hogrings are installed in the sequence shown.
3. To install, reverse the removal procedure.
Front Seat Control Switch
Removal
NOTE: Removal steps in this procedure may contain installation details.

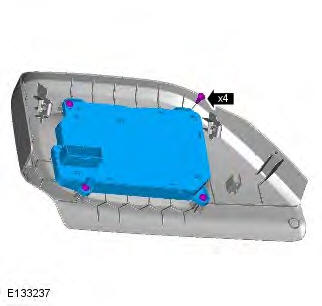

2. NOTE: Do not disassemble further if the component is removed for access only.
Installation
1. To install, reverse the removal procedure.
