Range Rover Evoque: Crankshaft Position (CKP) Sensor

Special Tool(s)

303-1390A
CKP Sensor Alignment Tool

JLR-303-1595
Alignment Tool, Crankshaft Damper

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

2. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

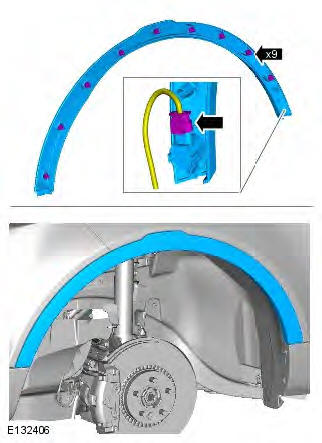

3. CAUTION: Take extra care not to damage the component.

NOTE: LH illustration shown, RH is similar.

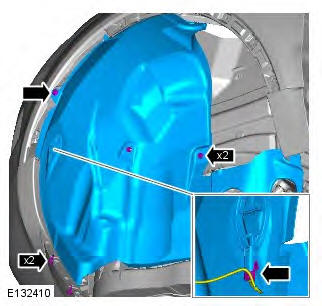

4. NOTE: LH illustration shown, RH is similar.

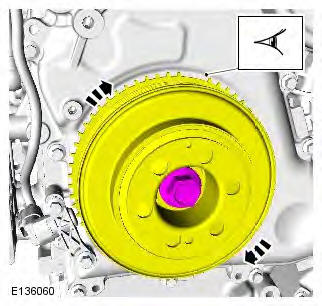

5. Rotate the crankshaft damper until the trigger wheel gap is positioned as shown.

6. CAUTIONS:

The special tool must only be used to align the crankshaft timing.

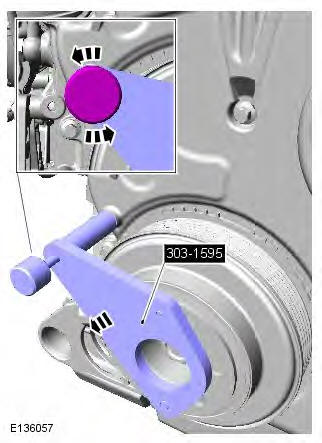

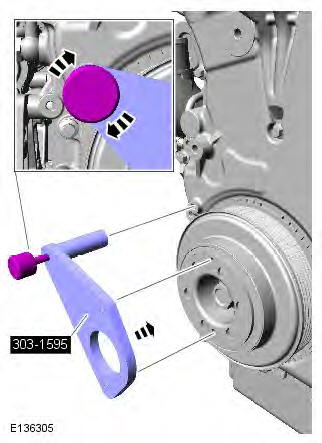

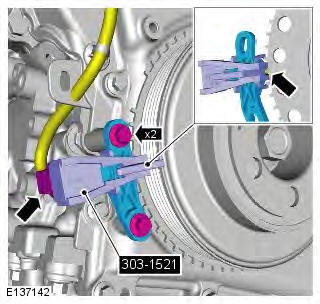

Align the two locating dowels and install the special tool to the crankshaft damper. Install the pin into the engine front cover.

Special Tool(s): JLR-303-1595

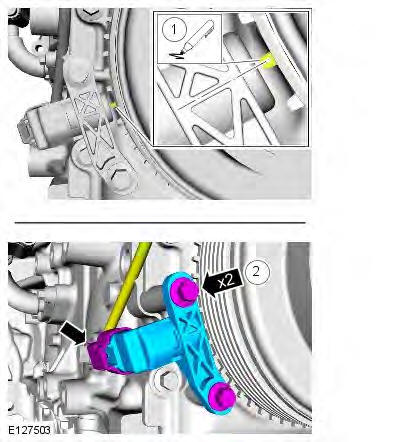

7.

Installation

1. CAUTION: Make sure that the wiring harnesses are correctly located.

NOTE: LH illustration shown, RH is similar. Install the special tool.

Special Tool(s): 303-1390A

2. Remove the special tool.

3. NOTE: LH illustration shown, RH is similar.

4. CAUTION: Take extra care not to damage the component.

5. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

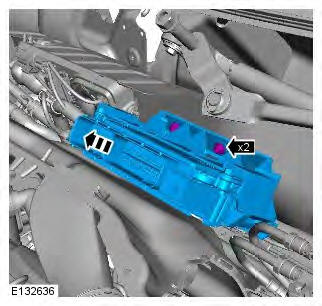

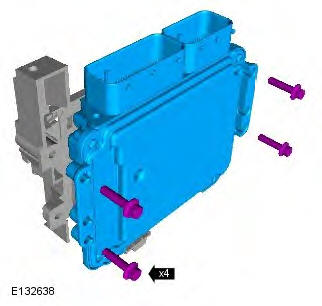

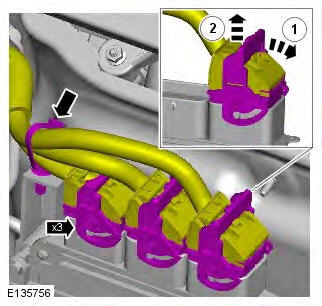

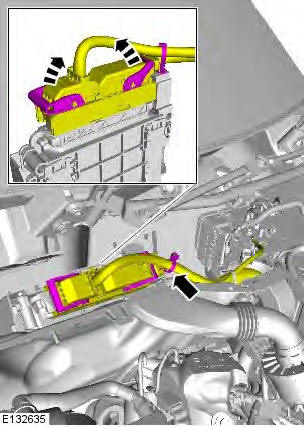

Engine Control Module (ECM)

Removal

NOTES:

Some variation in the illustrations may occur, but the essential information is always correct.

Removal steps in this procedure may contain installation details.

All vehicles

1. Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

2. Refer to: Plenum Chamber (412-01 Climate Control, Removal and Installation).

Vehicles with petrol engine

3.

Vehicles with diesel engine

4.

All vehicles

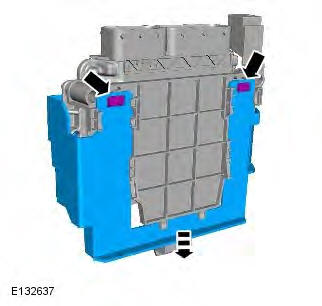

5. Torque: 7 Nm

6. NOTE: Do not disassemble further if the component is removed for access only.

7. Torque: 7 Nm

Installation

1. To install, reverse the removal procedure.

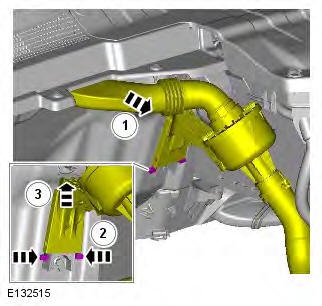

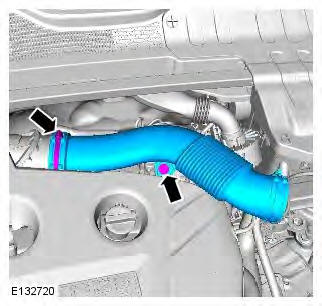

Mass Air Flow (MAF) Sensor

Removal

NOTE: Removal steps in this procedure may contain installation details.

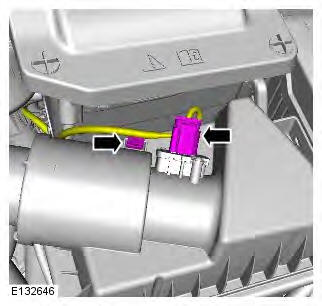

1.

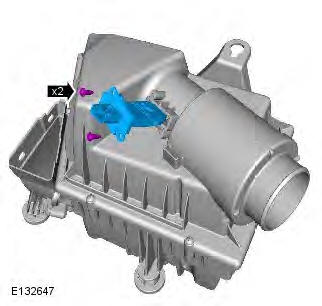

2. Torque: 1.5 Nm

Installation

1. To install, reverse the removal procedure.

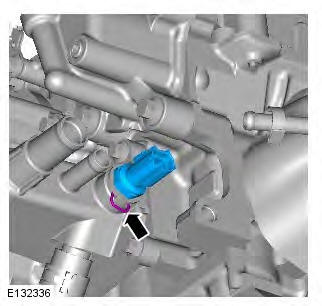

Engine Coolant Temperature (ECT) Sensor

Removal

NOTES:

Removal steps in this procedure may contain installation details.

Some variation in the illustrations may occur, but the essential information is always correct.

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

2. Refer to: Air Cleaner (303-12A Intake Air Distribution and Filtering - TD4 2.2L Diesel, Removal and Installation).

3. Torque: 10 Nm

4.

5. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

6. Refer to: Cooling System Partial Draining, Filling and Bleeding (303-03B Engine Cooling - GTDi 2.0L Petrol, General Procedures).

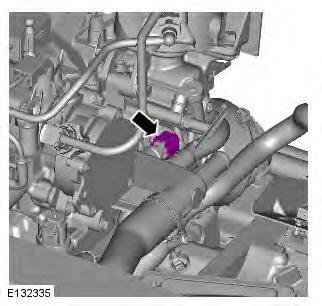

7.

8. NOTES:

Some fluid spillage is inevitable during this operation.

Position cloth to collect fluid spillage.

Installation

1. To install, reverse the removal procedure.

Heated Oxygen Sensor (HO2S)

Removal

WARNING: Observe due care when working near a hot exhaust system.

NOTE: Removal steps in this procedure may contain installation details.

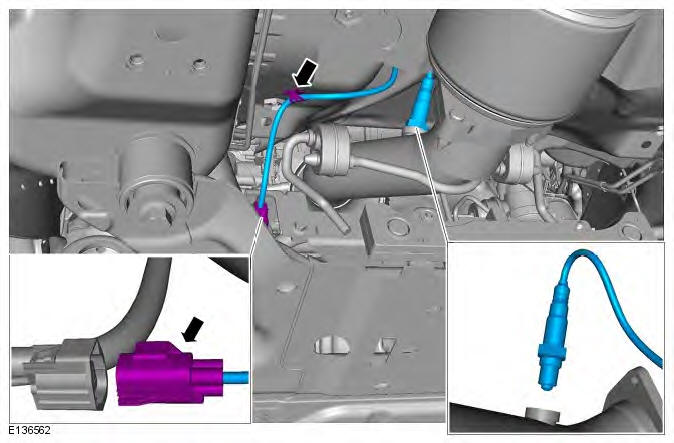

1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

2. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

3. CAUTIONS:

Note the fitted position of the component prior to removal.

Make sure that the mating faces are clean and free of corrosion and foreign material. Torque: 48 Nm

Installation

1. CAUTIONS:

If accidentally dropped or knocked install a new sensor.

To install, reverse the removal procedure.
