Range Rover Evoque: Battery Junction Box (BJB) GTDi 2.0L
Removal
NOTES:
Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.
All vehicles
1. Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).
2. Refer to: Central Junction Box (CJB) (418-00 Module Communications Network, Removal and Installation).
3. Refer to: Instrument Panel Upper Section (501-12 Instrument Panel and Console, Removal and Installation).

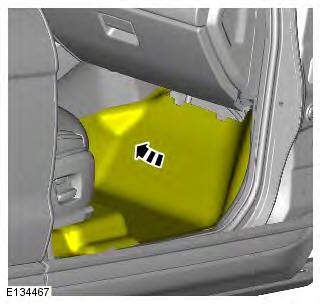

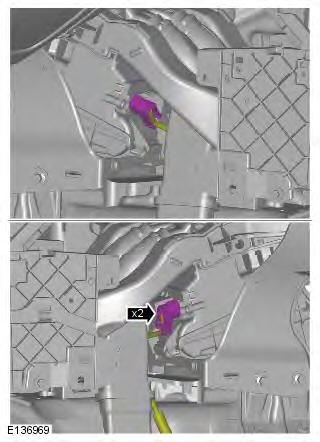

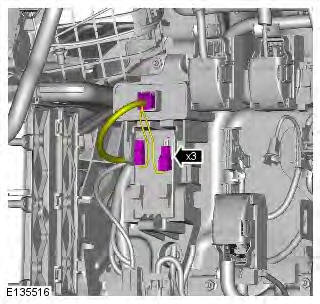

4.
5.

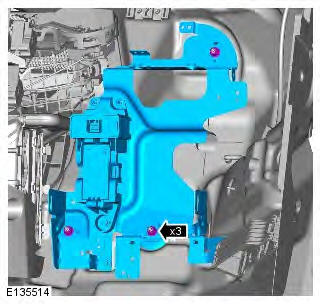

6. Torque: 10 Nm

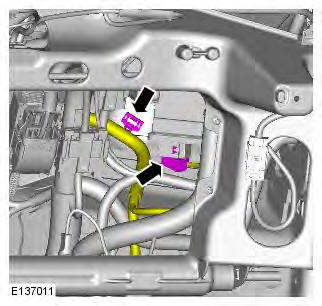

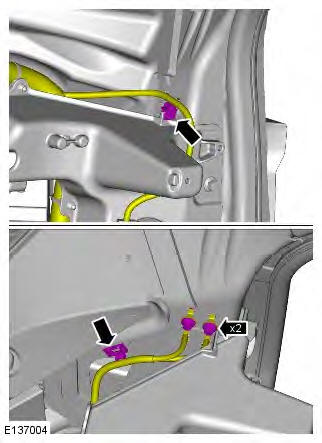

7.

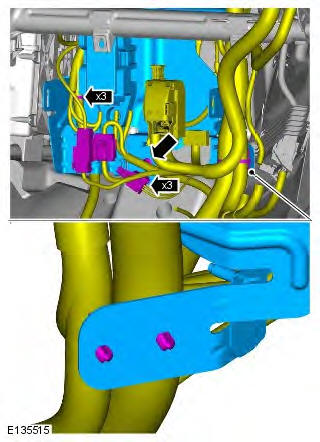

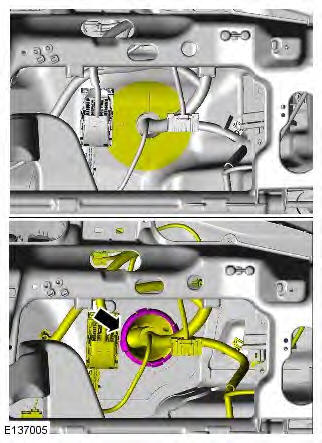

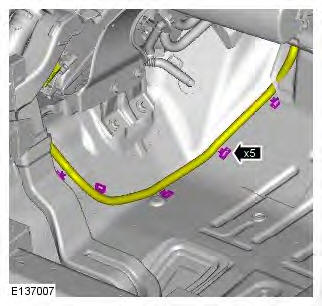

8.

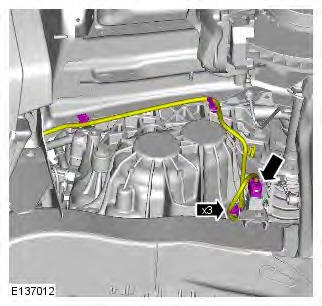

9.
10. Torque: 10 Nm
11.
Vehicles with auxiliary heating

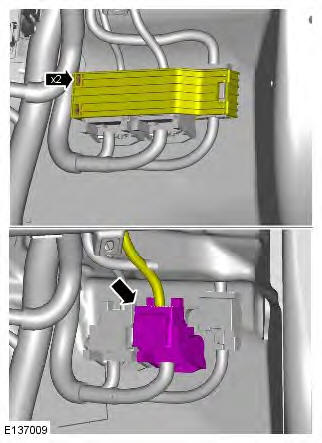

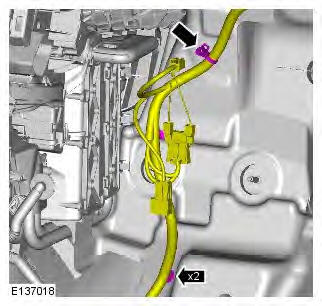

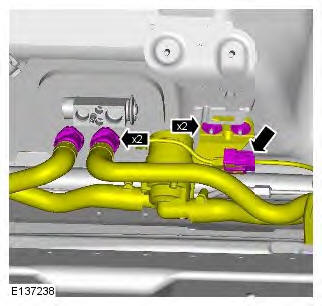

12.
13.
All vehicles
14.
15.
16. Refer to: Anti-Theft Alarm Horn with Integral Battery (419-01A Anti-Theft - Active, Removal and Installation).
17.
18. Torque: 10 Nm
19. WARNING: Be prepared to collect escaping fluid.

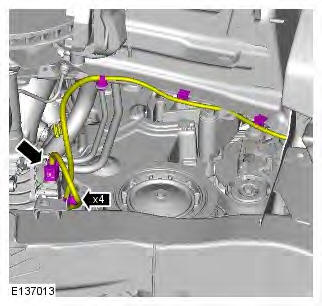

20.

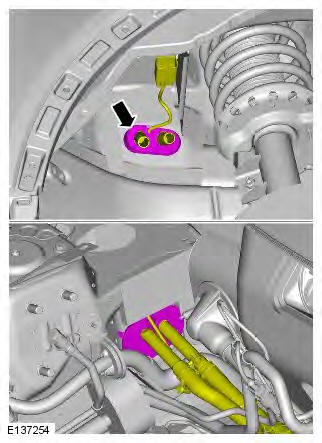

21. NOTE: LH illustration shown, RH is similar. Remove the front RH wheel arch liner.
Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
Vehicles with fuel fired booster heater
22. Refer to: Fuel Fired Booster Heater - GTDi 2.0L Petrol (412-02 Auxiliary Climate Control, Removal and Installation).
All vehicles

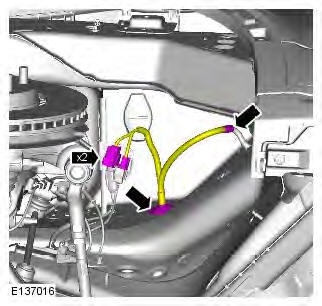

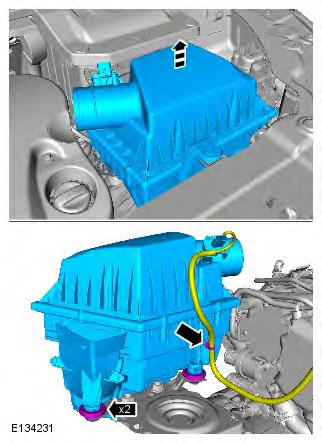

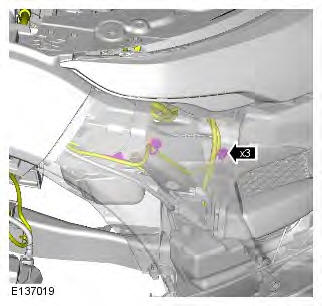

23.

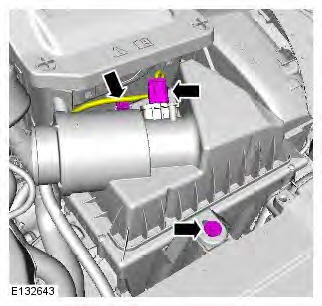

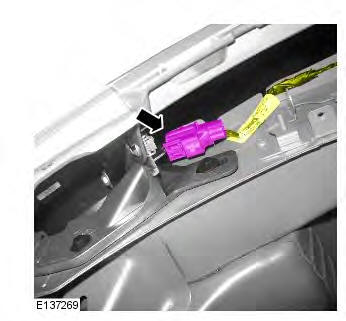

24.

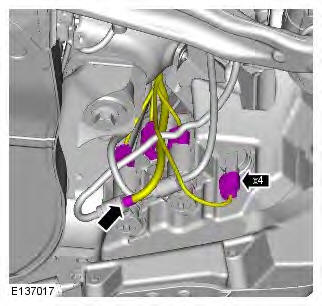

25. WARNING: Be prepared to collect escaping fluid.

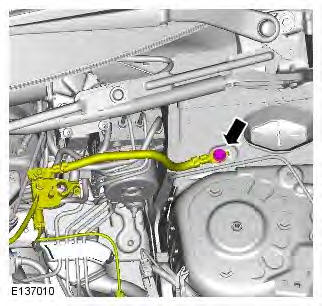

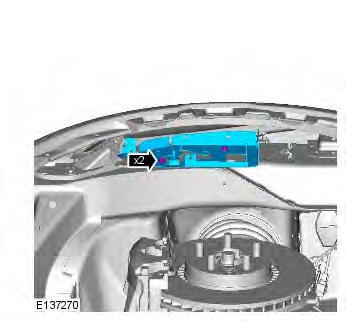

26.
27. Refer to: Secondary Bulkhead Center Panel - GTDi 2.0L Petrol (501-02 Front End Body Panels, Removal and Installation).
28. Refer to: Anti-Lock Brake System (ABS) Module (206-09A Anti-Lock Control, Removal and Installation).
29. Refer to: Brake Booster (206-07 Power Brake Actuation, Removal and Installation).

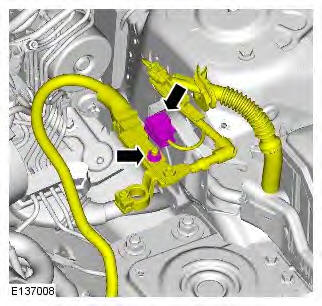

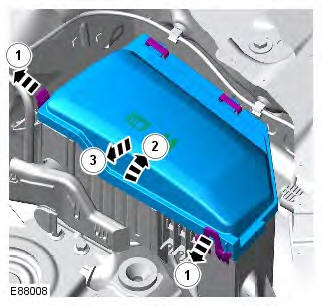

30.

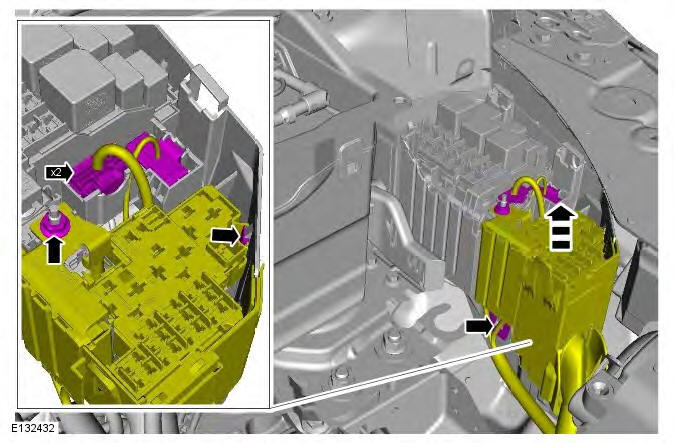

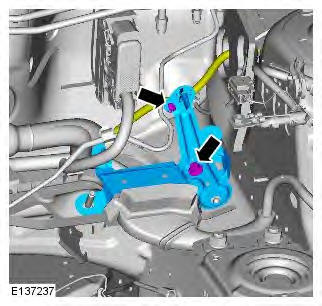

31. Torque: 10 Nm

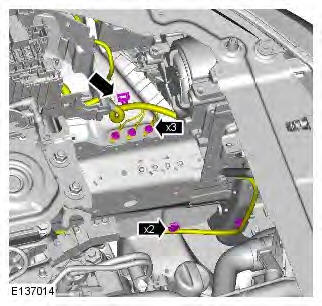

32.
33. Torque: 25 Nm
34. Torque: 10 Nm

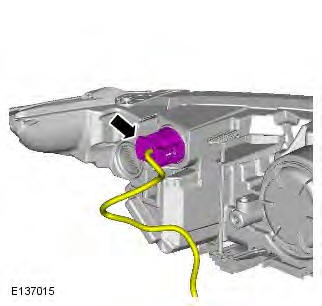

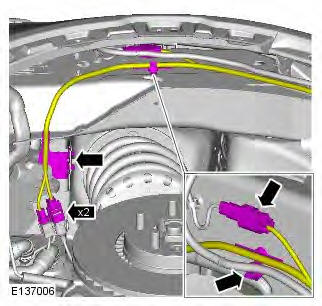

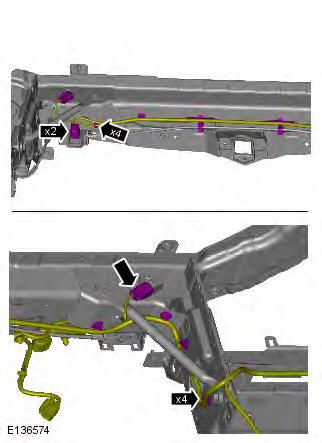

35.

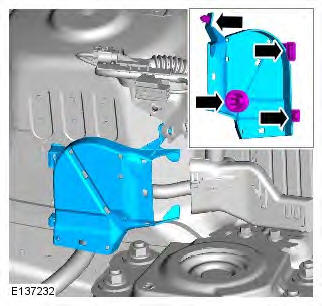

36. Torque: 10 Nm
37. Torque: 10 Nm

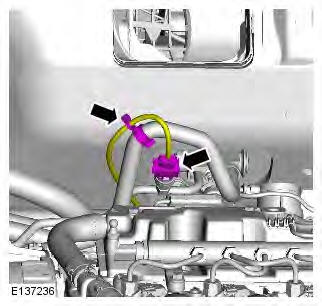

38.
39.

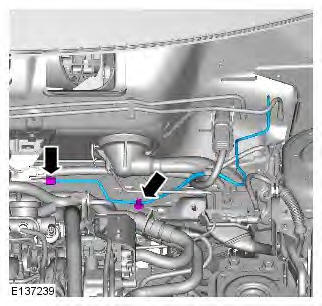

40. Torque: 10 Nm

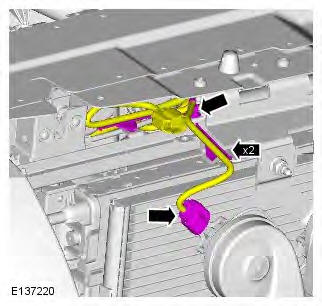

41.

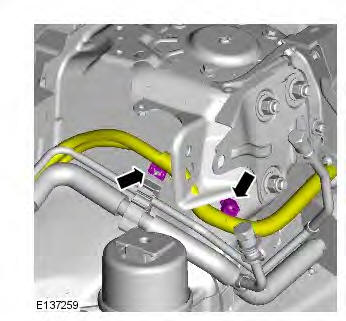

42. WARNING: Be prepared to collect escaping fluid.
CAUTION: If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.
Torque: 14 Nm
43. WARNING: Be prepared to collect escaping fluid.
CAUTION: If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water. Torque: 14 Nm

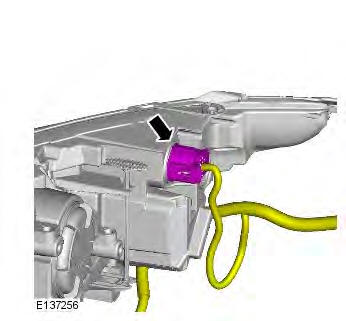

44. Torque: 25 Nm

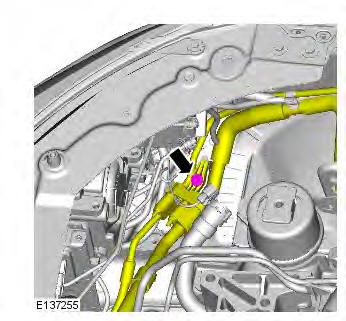

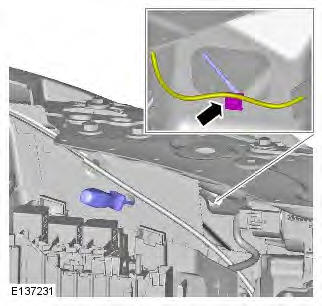

45.
46. WARNING: Be prepared to collect escaping fluid.

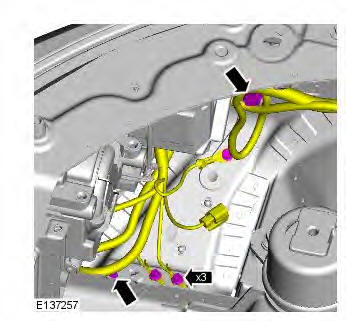

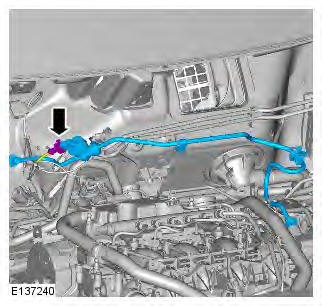

47.

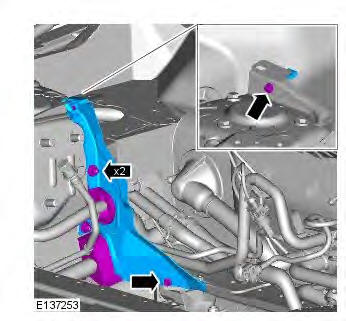

48.

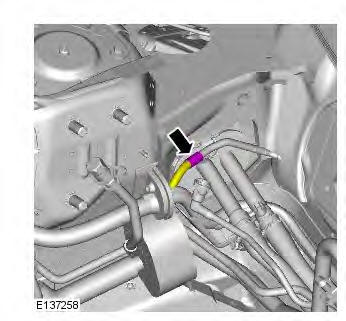

49. Refer to: Coolant Expansion Tank (303-03B Engine Cooling - GTDi 2.0L Petrol, Removal and Installation).

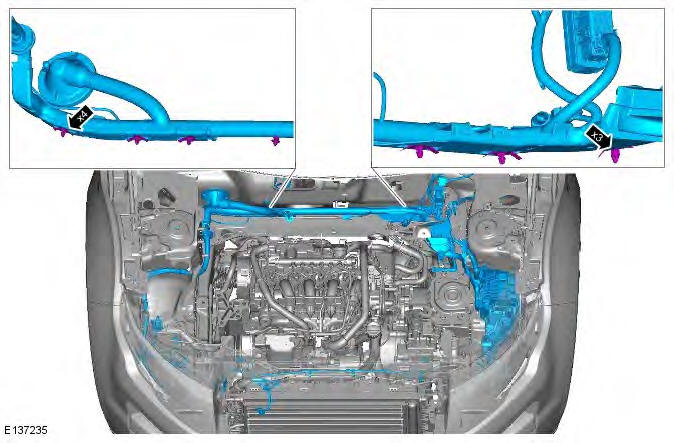

50.
51. Torque: 7 Nm
52. Torque: 10 Nm

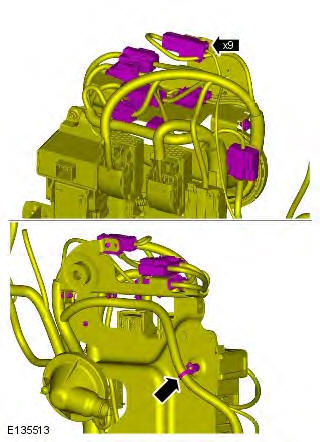

53.
54. Torque: Bolt 10 Nm
Right-hand drive vehicles
55. WARNING: Be prepared to collect escaping fluid.
Vehicles with fuel fired booster heater
56.
All vehicles

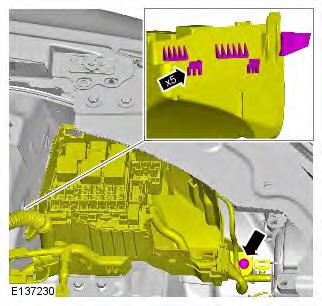

57.
Installation
1. To install, reverse the removal procedure.
