Range Rover Evoque: Passenger Seat Cushion Heater Mat

Removal

WARNINGS:

To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute. Failure to follow this instruction may result in personal injury.

Never probe the electrical connectors of air bag modules or any other supplemental restraint system component.

Failure to follow this instruction may result in personal injury.

NOTE: Removal steps in this procedure may contain installation details.

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

2. Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

3. Refer to: Front Seat Cushion Cover (501-10 Seating, Removal and Installation).

4.

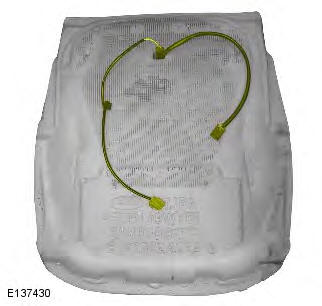

Range Rover Evoque. Passenger Seat Cushion Heater Mat

5.

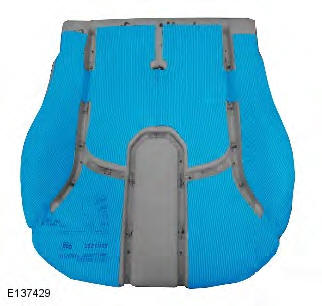

Range Rover Evoque. Passenger Seat Cushion Heater Mat

Installation

1. To install, reverse the removal procedure.

Driver Seat Cushion Heater Mat

Removal

WARNINGS:

To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute. Failure to follow this instruction may result in personal injury.

Never probe the electrical connectors of air bag modules or any other supplemental restraint system component.

Failure to follow this instruction may result in personal injury.

NOTE: Removal steps in this procedure may contain installation details.

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

2. Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

3. Refer to: Front Seat Cushion Cover (501-10 Seating, Removal and Installation).

4. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

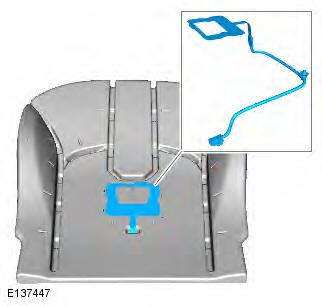

Range Rover Evoque. Driver Seat Cushion Heater Mat

5.

Range Rover Evoque. Driver Seat Cushion Heater Mat

Installation

1. To install, reverse the removal procedure.

Driver Seat Cushion

Removal

WARNINGS:

To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute. Failure to follow this instruction may result in personal injury.

Never probe the electrical connectors of air bag modules or any other supplemental restraint system component.

Failure to follow this instruction may result in personal injury.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

2. Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

3. Refer to: Front Seat Cushion Cover (501-10 Seating, Removal and Installation).

Vehicles with heated front seats

4. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Range Rover Evoque. Driver Seat Cushion

5.

Range Rover Evoque. Driver Seat Cushion

Installation

1. To install, reverse the removal procedure.

Passenger Seat Cushion

Removal

WARNINGS:

To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute. Failure to follow this instruction may result in personal injury.

Never probe the electrical connectors of air bag modules or any other supplemental restraint system component.

Failure to follow this instruction may result in personal injury.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

2. Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

3. Refer to: Front Seat Cushion Cover (501-10 Seating, Removal and Installation).

4. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Range Rover Evoque. Passenger Seat Cushion

Vehicles with heated front seats

5.

Range Rover Evoque. Passenger Seat Cushion

All vehicles

6.

Range Rover Evoque. Passenger Seat Cushion

Installation

1. To install, reverse the removal procedure.

Passenger Seat Cushion Heater Mat

Removal

WARNINGS:

To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute. Failure to follow this instruction may result in personal injury.

Never probe the electrical connectors of air bag modules or any other supplemental restraint system component.

Failure to follow this instruction may result in personal injury.

CAUTION: The front passenger seat occupant classification sensor is available only as a service kit. No attempt should be made to replace individual components. Failure to follow this instruction may result in personal injury.

NOTE: Removal steps in this procedure may contain installation details.

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

2. Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

3. Refer to: Occupant Classification Sensor (501-20B Supplemental Restraint System, Removal and Installation).

Installation

1. To install, reverse the removal procedure.

Passenger Seat Cushion

Removal

WARNINGS:

To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute. Failure to follow this instruction may result in personal injury.

Never probe the electrical connectors of air bag modules or any other supplemental restraint system component.

Failure to follow this instruction may result in personal injury.

CAUTION: The front passenger seat occupant classification sensor is available only as a service kit. No attempt should be made to replace individual components. Failure to follow this instruction may result in personal injury.

NOTE: Removal steps in this procedure may contain installation details.

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

2. Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

3. Refer to: Occupant Classification Sensor (501-20B Supplemental Restraint System, Removal and Installation).

Installation

1. To install, reverse the removal procedure.
