Range Rover Evoque: Wheel Knuckle

Special Tool(s)

205-754A
Splitter, Ball Joints

205-857
Remover, Halfshaft

Range Rover Evoque. Front SuspensionJLR-204-804
Lever, Wheel Knuckle

Removal

CAUTIONS:

Nuts and bolts must be tightened with the weight of the vehicle on the suspension.

Do not allow halfshafts to hang unsupported at one end or joint damage will occur.

Make sure the halfshaft constant velocity (CV) joints do not over articulate. Failure to follow this instruction may result in damage to the CV joints.

NOTE: If a new knuckle is installed a new wheel bearing must be installed.

All vehicles

1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

2. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

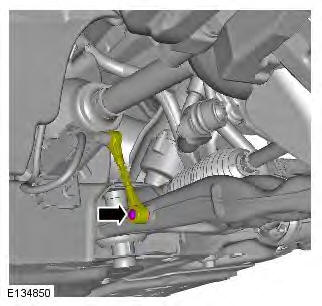

3. CAUTION: Discard the nut.

Range Rover Evoque. Front Suspension

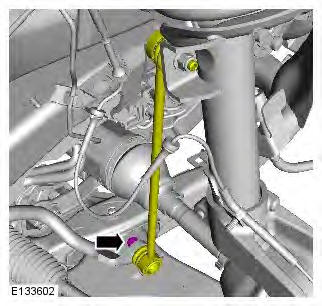

4.

Range Rover Evoque. Front Suspension

5. CAUTIONS:

Do not use air tools to remove the nut.

Discard the nut.

Range Rover Evoque. Front Suspension

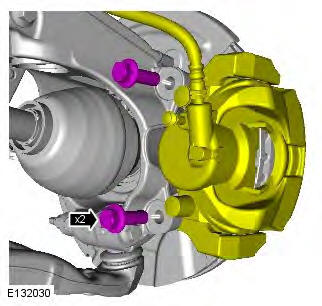

6. CAUTIONS:

Make sure that no load is placed on the brake hose.

Discard the bolts.

Tie aside with a suitable tie strap.

Range Rover Evoque. Front Suspension

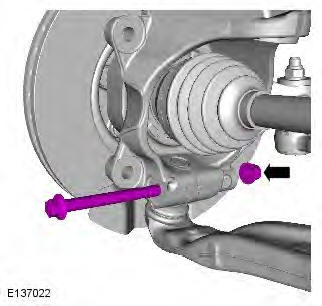

7. CAUTION: Discard the bolt.

Range Rover Evoque. Front Suspension

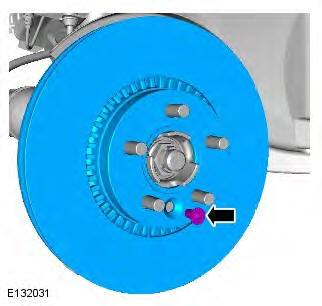

8.

Range Rover Evoque. Front Suspension

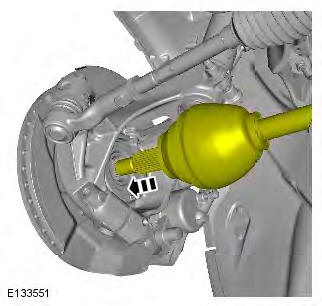

9. CAUTIONS:

Make sure that the driveshaft is supported with suitable retaining straps.

Do not use a hammer to detach the halfshaft from the hub assembly, failure to follow this instruction may result in damage to the halfshaft.

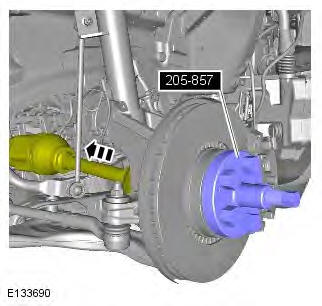

Special Tool(s): 205-857

Range Rover Evoque. Front Suspension

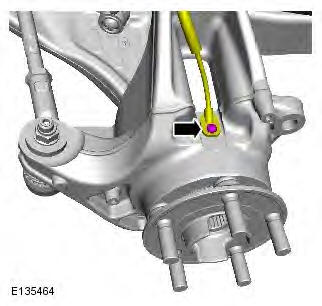

10.

Range Rover Evoque. Front Suspension

11.

Range Rover Evoque. Front Suspension

12.

Range Rover Evoque. Front Suspension

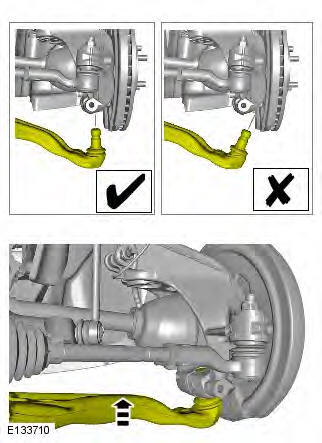

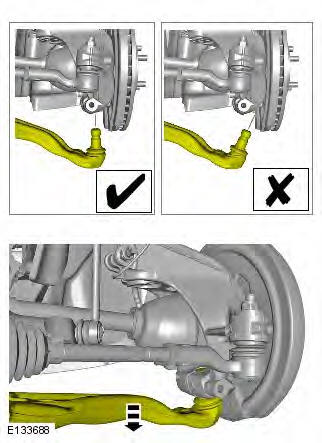

13. CAUTIONS:

Make sure that the ball joint ball does not rotate.

Discard the nut.

Range Rover Evoque. Front Suspension

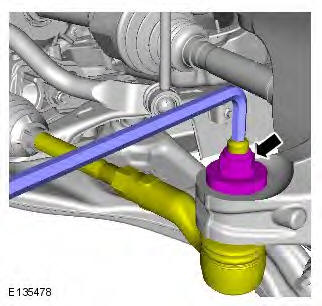

14. CAUTION: Make sure that the ball joint seal is not damaged.

Special Tool(s): 205-754A

Range Rover Evoque. Front Suspension

15.

Range Rover Evoque. Front Suspension

16.

Range Rover Evoque. Front Suspension

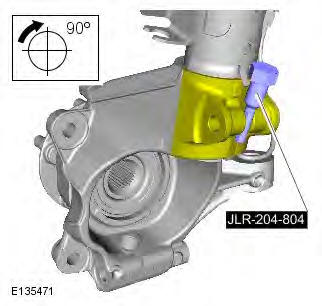

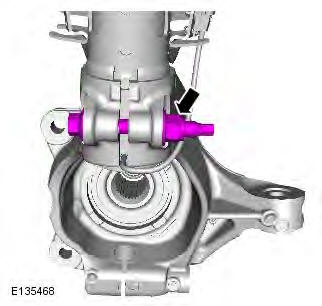

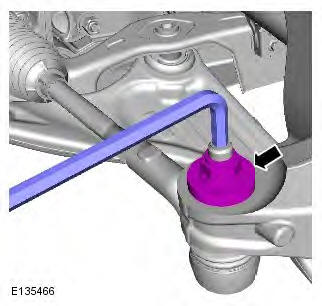

17. Special Tool(s): JLR-204-804

Range Rover Evoque. Front Suspension

Vehicles with dynamic suspension

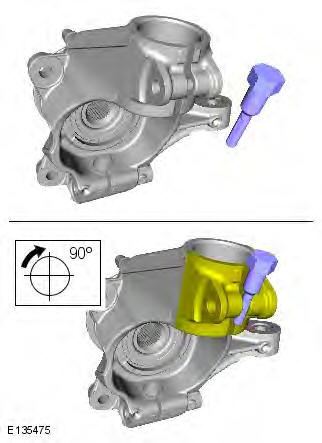

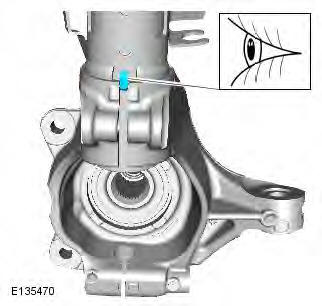

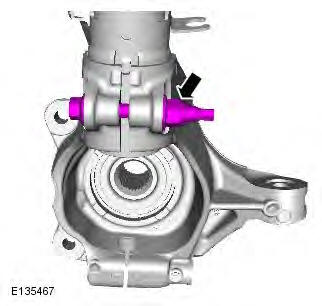

18.

Range Rover Evoque. Front Suspension

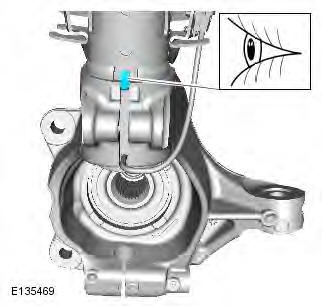

19.

Range Rover Evoque. Front Suspension

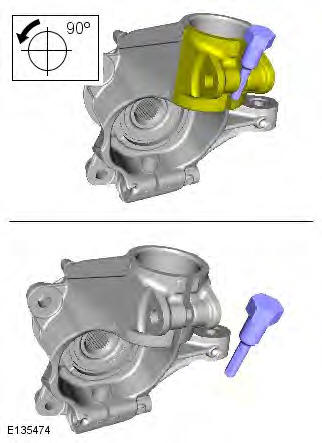

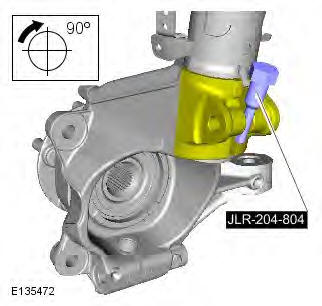

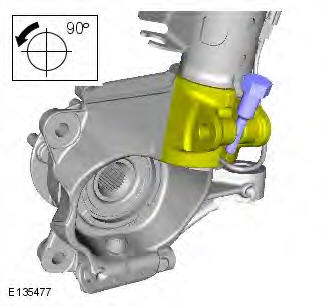

20. CAUTION: Care must be taken not to damage the surrounding components when inserting the special tool. Special Tool(s): JLR-204-804

Range Rover Evoque. Front Suspension

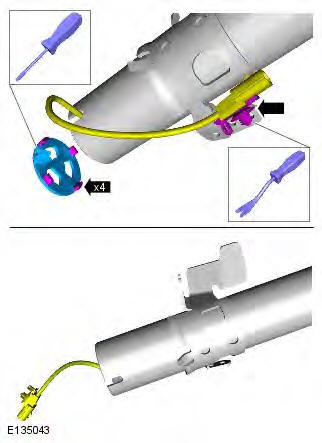

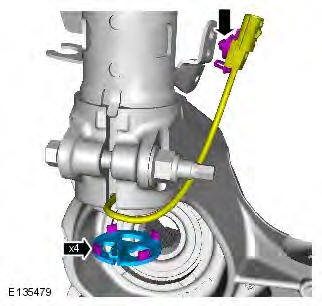

21. CAUTION: Make sure the wiring harness and electrical connectors are not damaged during this operation.

Range Rover Evoque. Front Suspension

All vehicles

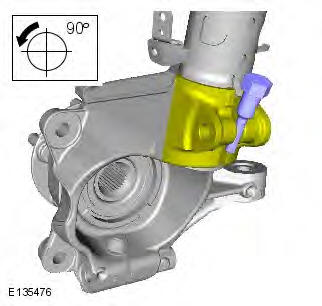

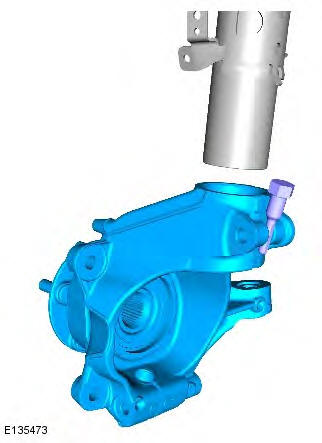

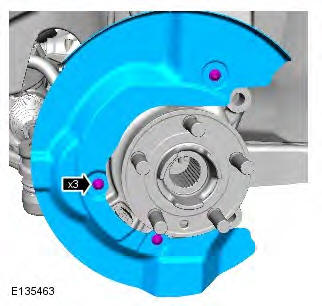

22.

Range Rover Evoque. Front Suspension

23. NOTE: Do not disassemble further if the component is removed for access only. Remove the special tool.

Range Rover Evoque. Front Suspension

Installation

All vehicles

1. NOTE: This step is only required if previously removed. Install the special tool.

Range Rover Evoque. Front Suspension

2.

Range Rover Evoque. Front Suspension

Vehicles with dynamic suspension

3. Remove the special tool.

Range Rover Evoque. Front Suspension

4.

Range Rover Evoque. Front Suspension

5. Torque: 110 Nm

Range Rover Evoque. Front Suspension

6. CAUTION: Make sure the wiring harness and electrical connectors are not damaged during this operation.

Range Rover Evoque. Front Suspension

All vehicles

7. Remove the special tool.

Range Rover Evoque. Front Suspension

8.

Range Rover Evoque. Front Suspension

9. Torque: 110 Nm

Range Rover Evoque. Front Suspension

10. WARNING: Make sure that a new nut is installed.

CAUTION: Make sure that the ball joint ball does not rotate.

Torque: 133 Nm

Range Rover Evoque. Front Suspension

11. Torque: 10 Nm

Range Rover Evoque. Front Suspension

12. Torque: 10 Nm

Range Rover Evoque. Front Suspension

13. Torque: 35 Nm

Range Rover Evoque. Front Suspension

14. CAUTION: LH illustration shown, RH is similar.

Range Rover Evoque. Front Suspension

15.

Range Rover Evoque. Front Suspension

16. CAUTION: Make sure that a new bolt is installed.

Torque:

Stage 1: 48 Nm
Stage 2: 180
