Range Rover Evoque: Inner Constant Velocity (CV) Joint Boot
Special Tool(s)
303-D121
Puller, General Purpose
General Equipment
- Vise
Removal
NOTE: RH inner constant velocity joint boot shown, LH is similar.
1. Refer to: Front Halfshaft LH (205-04 Front Drive Halfshafts, Removal and Installation).
Refer to: Front Halfshaft RH - LHD AWD/RHD AWD (205-04 Front Drive Halfshafts, Removal and Installation).
Refer to: Front Halfshaft RH - FWD (205-04 Front Drive Halfshafts, Removal and Installation).

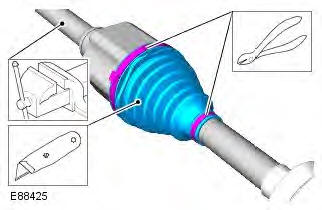

2. NOTE: Discard the retaining clips. General Equipment: Vise

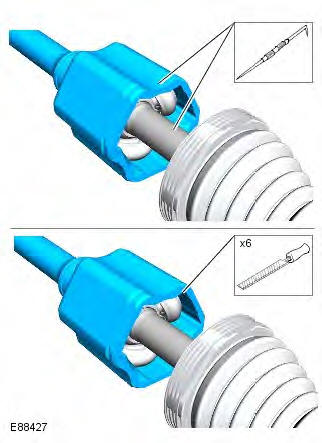

3. CAUTION: Make sure that filings and swarf do not enter the component.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

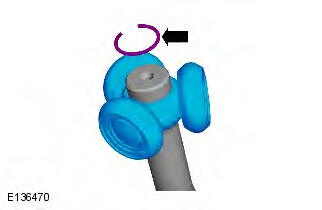

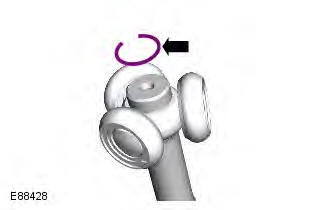

4. NOTE: Discard the retaining clip.

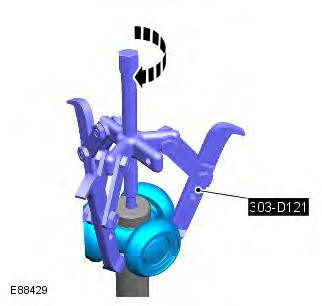

5. Special Tool(s): 303-D121
Installation
1. CAUTION: Extreme cleanliness must be exercised when handling these components. Clean and inspect the components for deterioration.
2.
3. NOTE: Install a new retaining clip.

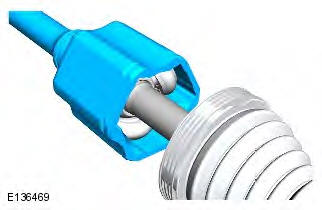

4. CAUTION: Make sure that these components are installed to the noted removal position.
5. Pack the inner CV joint with the grease supplied.
6. NOTE: Install new retaining clips.
7. Refer to: Front Halfshaft LH (205-04 Front Drive Halfshafts, Removal and Installation).
Refer to: Front Halfshaft RH - LHD AWD/RHD AWD (205-04 Front Drive Halfshafts, Removal and Installation).
Refer to: Front Halfshaft RH - FWD (205-04 Front Drive Halfshafts, Removal and Installation).

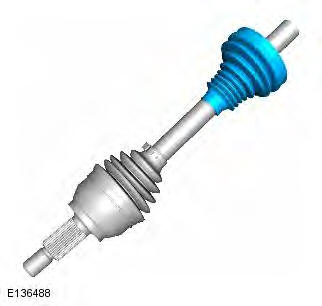

Outer Constant Velocity (CV) Joint Boot
General Equipment
- Vise
Removal
1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.
2. Refer to: Inner Constant Velocity (CV) Joint Boot (205-04 Front Drive Halfshafts, Removal and Installation).

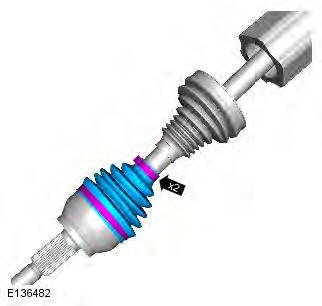

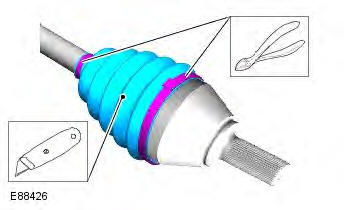

3. NOTE: Discard the retaining clips. General Equipment: Vise
Installation
1. CAUTION: Extreme cleanliness must be exercised when handling these components. Clean and inspect the components for deterioration.
2. Pack the outer CV joint with the grease supplied.

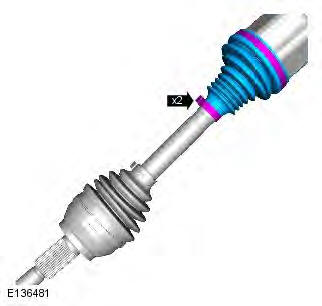

3. NOTES:
Install new retaining clips.
Some variation in the illustrations may occur, but the essential information is always correct.
4. Refer to: Inner Constant Velocity (CV) Joint Boot (205-04 Front Drive Halfshafts, Removal and Installation).
