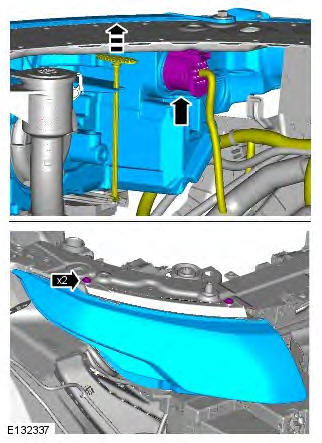

Range Rover Evoque: Headlamp Assembly
Removal
NOTE: Removal steps in this procedure may contain installation details.
1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

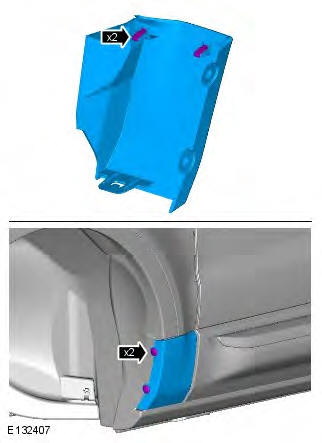

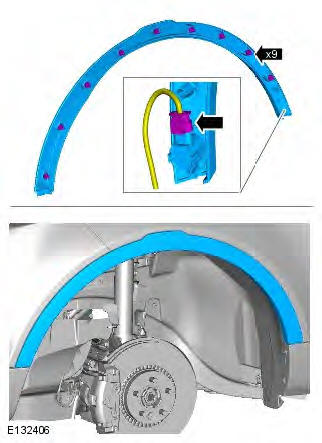

2.
3.
4. NOTE: Some components shown removed for clarity.
5.
6.
7.
8.

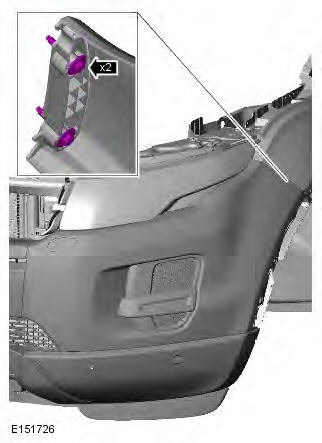

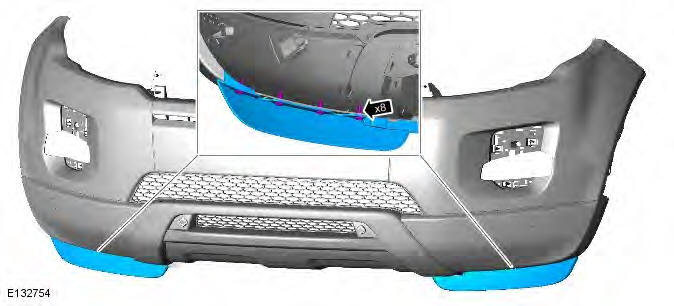

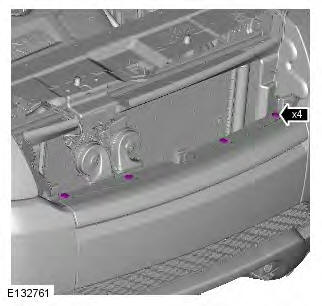

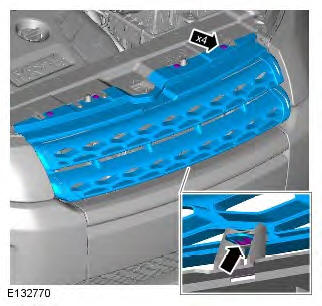

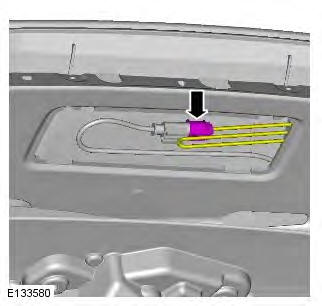

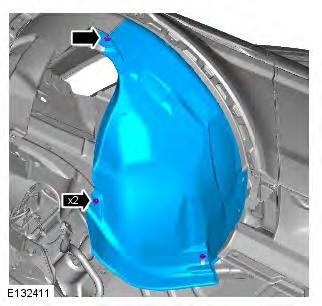

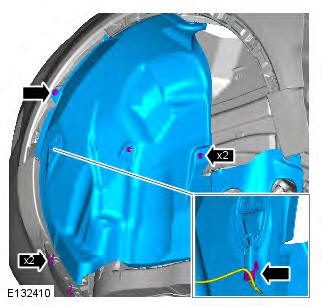

9. Remove all bumper lower fixing to assist the partial removal of the bumper.
10. Torque: 4 Nm

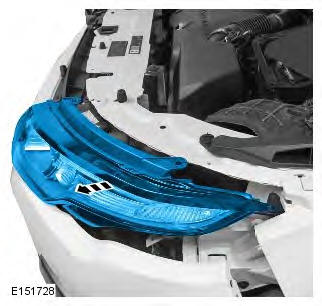

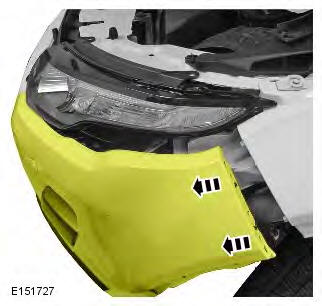

11. Carefully move the bumper to gain access to the headlamp assembly.
12.
Installation
1. To install, reverse the removal procedure.
2. Check the headlamp alignment and adjust if necessary.
Refer to: Headlamp Adjustment (417-01 Exterior Lighting, General Procedures).
Rear Lamp Assembly
Removal

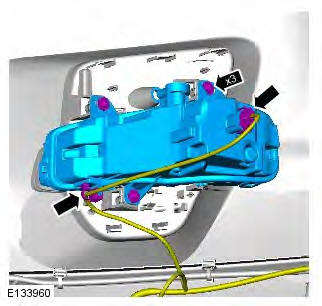

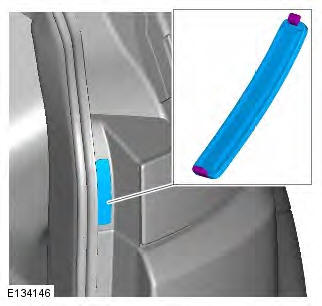

1.
2. Torque: 1 Nm
3. NOTE: Do not disassemble further if the component is removed for access only.
Installation
1. To install, reverse the removal procedure.
High Mounted Stoplamp
Removal
NOTE: Removal steps in this procedure may contain installation details.

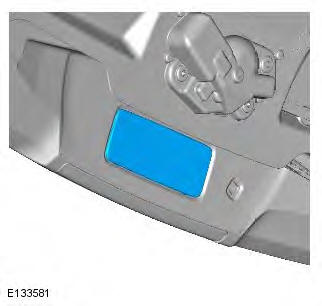

1.
2.
3. Torque: 1.5 Nm
Installation
1. To install, reverse the removal procedure.

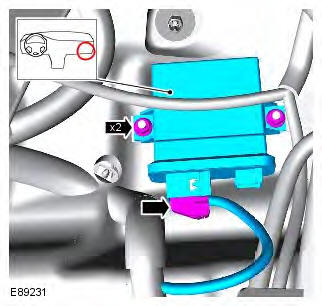

Headlamp Leveling Module
Removal
NOTES:
Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.
1. Refer to: Glove Compartment (501-12 Instrument Panel and Console, Removal and Installation).
2. NOTE: LHD illustration shown, RHD is similar. Torque: 7 Nm
Installation
1. To install, reverse the removal procedure.
2. Using the diagnostic tool, configure the new unit using the Programmable Module Installation Routine.
Stoplamp Switch
Removal
NOTES:
Removal steps in this procedure may contain installation details.
LHD illustration shown, RHD is similar.

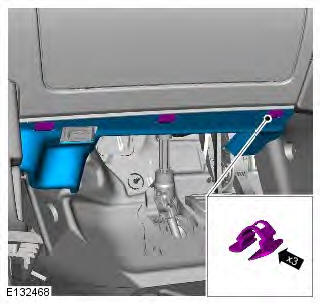

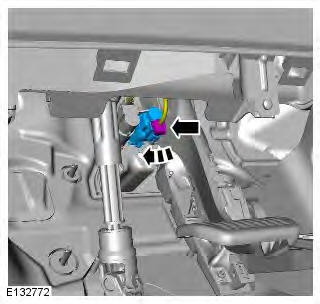

1.
2.
Installation
1. To install, reverse the removal procedure.
Front Fog Lamp RH
Removal
NOTE: Removal steps in this procedure may contain installation details.
1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.
2. Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).
3. Torque: 2 Nm
Installation
1. To install, reverse the removal procedure.
2. Check the fog lamp beam alignment.
Refer to: Front Fog Lamp Adjustment (417-01 Exterior Lighting, General Procedures).
