Range Rover Evoque: Front/Rear Door Latch
Front Door Latch
Removal
NOTES:
Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.
Make sure the door window glass is in the fully closed position.
1. Refer to: Exterior Front Door Handle (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).

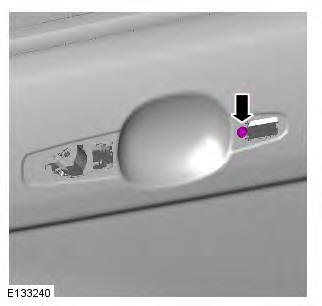

2.

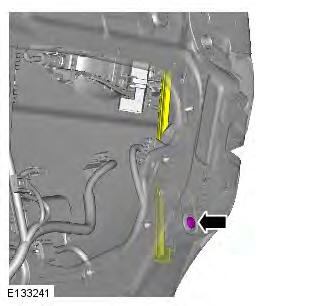

3. Torque: 1 2 Nm

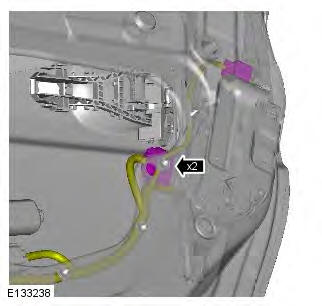

4. NOTE: Loosen the bolt, but do not fully remove.
Torque: 3.2 Nm

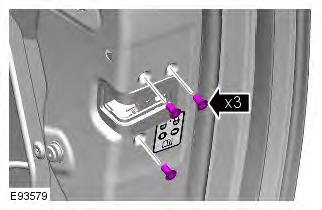

5. Torque: 7 Nm

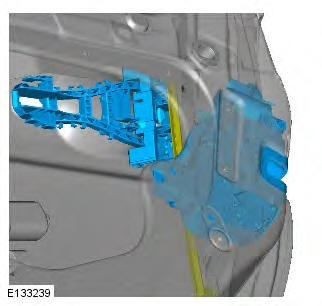

6. CAUTION: Take extra care not to damage the component.

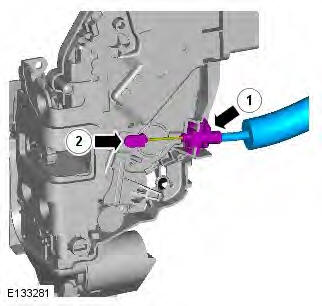

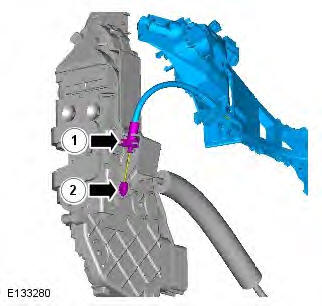

7. NOTE: Do not disassemble further if the component is removed for access only.
8.
Installation
1. To install, reverse the removal procedure.
Rear Door Latch
Removal
NOTES:
Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.
1. Refer to: Exterior Rear Door Handle (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).
2.
3. Torque: 1.2 Nm
4. NOTE: Loosen the bolt, but do not fully remove.
Torque: 3.2 Nm
5. Torque: 7 Nm
6. CAUTION: Take extra care not to damage the component.
7. NOTE: Do not disassemble further if the component is removed for access only.
8.
Installation
1. To install, reverse the removal procedure.
Liftgate Latch
Removal
NOTE: Removal steps in this procedure may contain installation details.

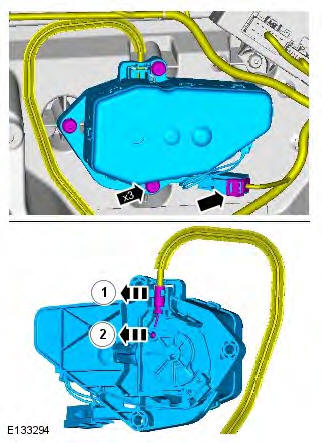

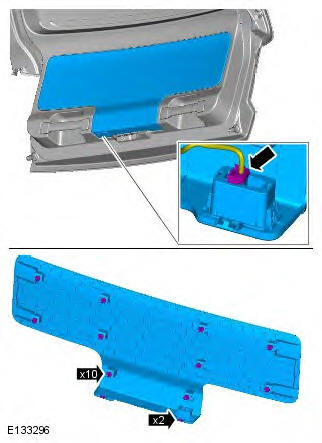

1.
2. Torque: 25 Nm
3. Torque: 25 Nm
Installation
1. To install, reverse the removal procedure.
