Range Rover Evoque: Brake/clutch fluid check
Seek qualified assistance
immediately if brake pedal travel is
unusually long or if there is any
significant loss of brake fluid. Driving
under such conditions could result in
extended stopping distances or
complete brake failure.
Brake fluid is highly toxic - keep
containers sealed and out of the reach
of children. If accidental consumption
of fluid is suspected, seek medical
attention immediately.
If the fluid comes into contact with the
skin or eyes, rinse immediately with
plenty of water.
Brake fluid is highly inflammable. Do
not allow brake fluid to come into
contact with naked flames or other
sources of ignition (e.g. a hot engine).
Do not drive the vehicle with the fluid
level below the MIN mark.
If the quantity of fluid in the brake reservoir drops below the recommended level, a red warning lamp in the instrument panel will illuminate.
Note: If the warning lamp illuminates while the
vehicle is being driven, stop the vehicle as soon
as safety permits by gently applying the brakes.
Check and top-up the fluid level if necessary.
With the vehicle on level ground, check the fluid level at least every week (more frequently in high mileage or arduous operating conditions).

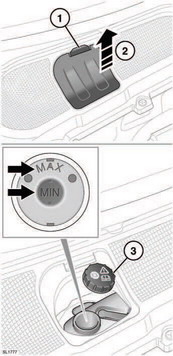

Right hand drive:
1. Release the catch and pull forwards.
2. Pull up to release and lift the cover clear.
3. Clean the filler cap before removing to prevent dirt from entering the reservoir.
Remove the cap.
The brake fluid level should be between the MIN and the MAX marks.

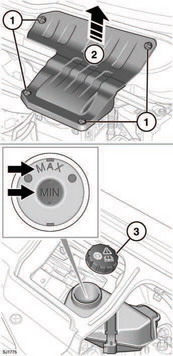

Left hand drive:
1. Remove the battery cover. Turn the four fasteners 90 degrees counter-clockwise to release.
2. Lift the cover clear.
3. Clean the filler cap before removing to prevent dirt from entering the reservoir.
Remove the cap.
The brake fluid level should be between the MIN and the MAX marks.
Note: The fluid level may drop slightly during normal use as a result of brake pad wear, but should not be allowed to drop below the MIN mark.
