Range Rover Evoque: Body Repairs - Vehicle Specific Information and Tolerance Checks
Body
and Frame

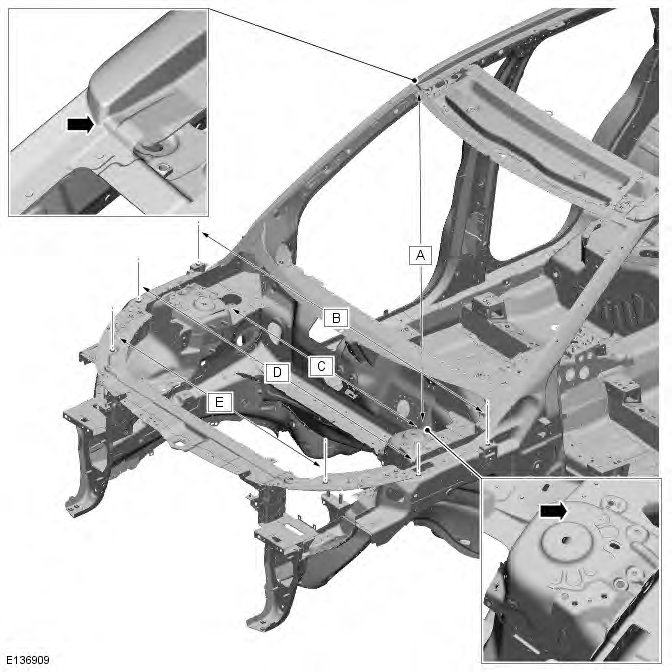

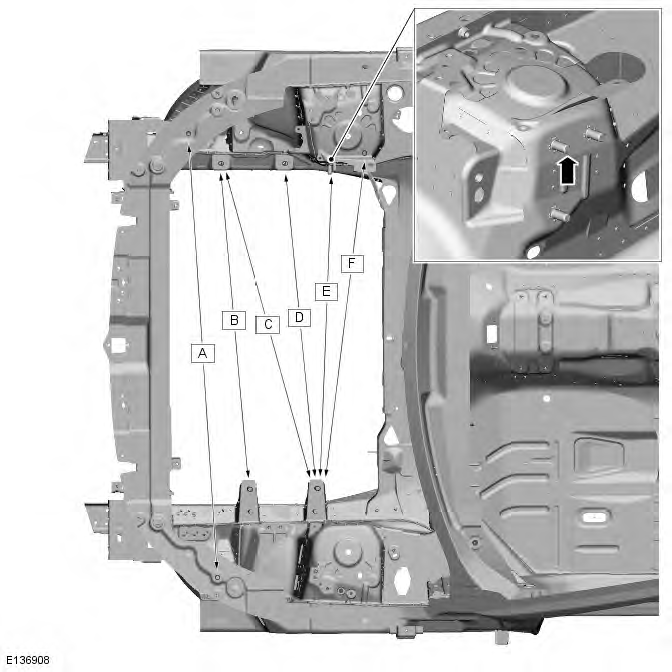

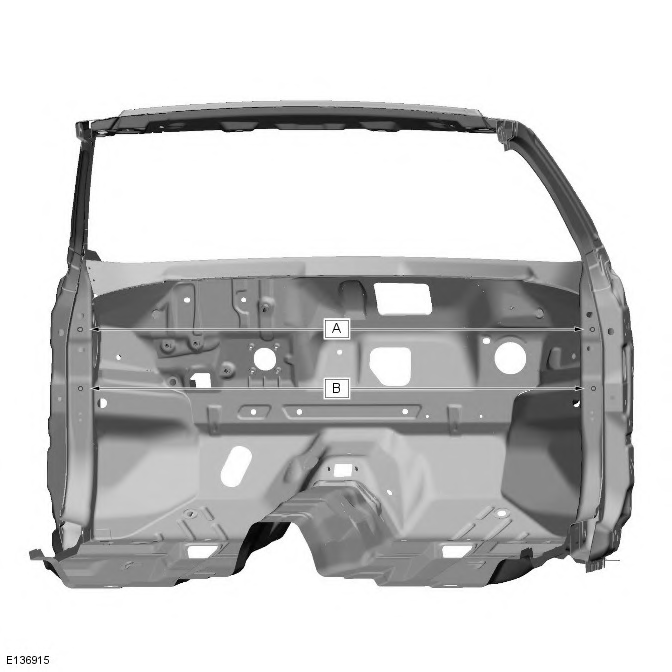

Front End Body Dimensions
NOTES:
All dimensions shown are in millimetres (mm).
Dimensions shown to holes, are always taken from/to the hole centre. They are
also always to the body panel
surface, not to the top of bolts or components.

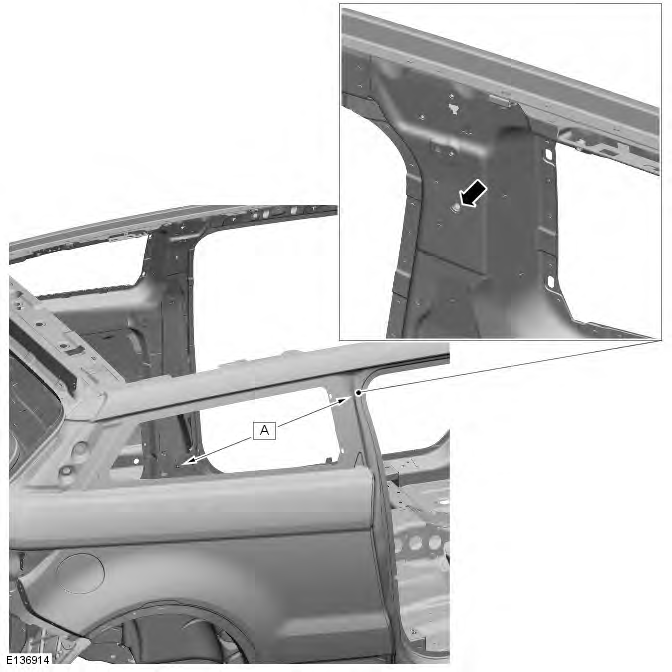

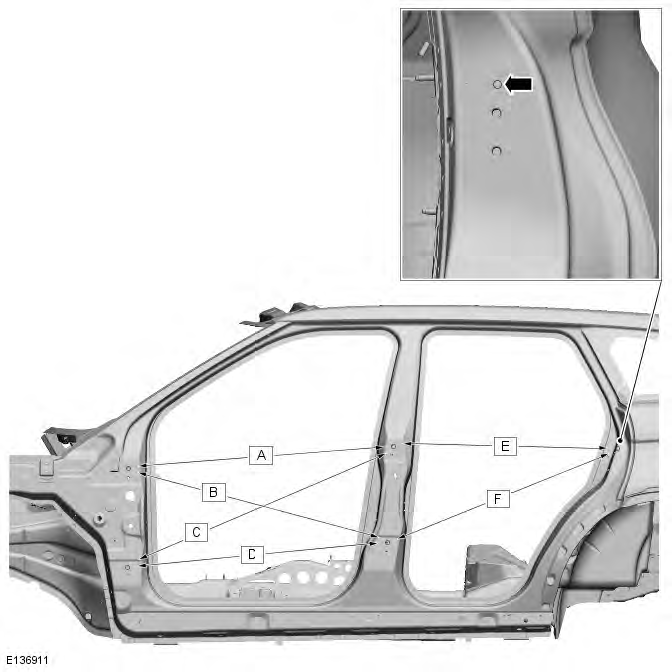

Side Panel Dimensions

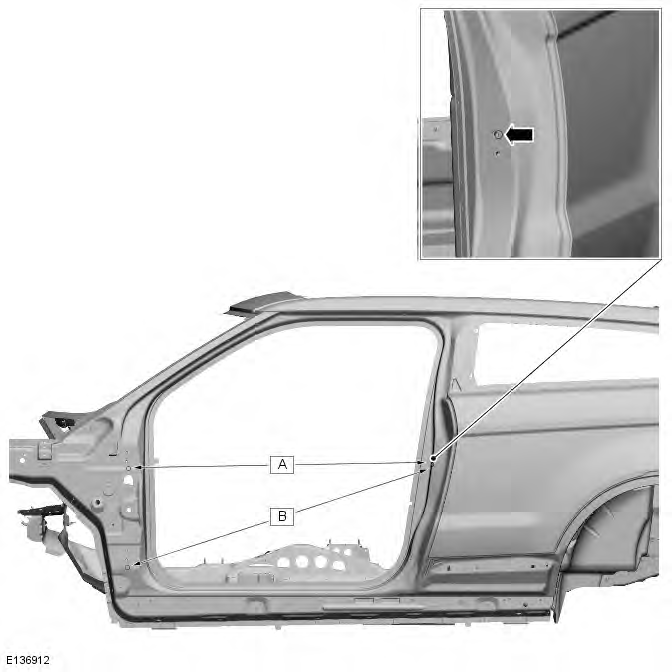

3-door version

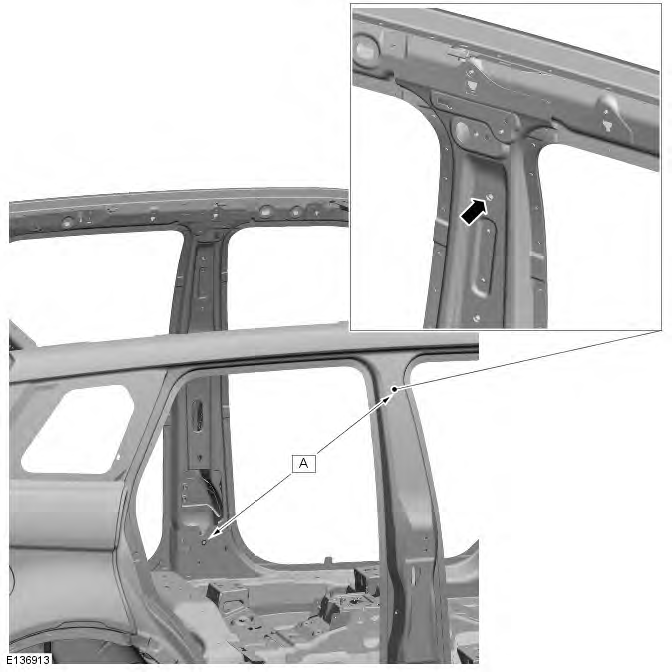

5-door version


3-door version


5-door version

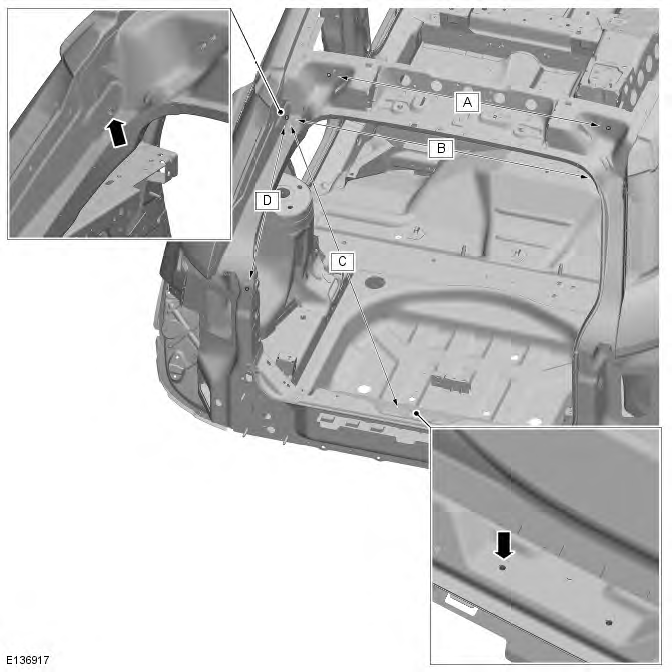

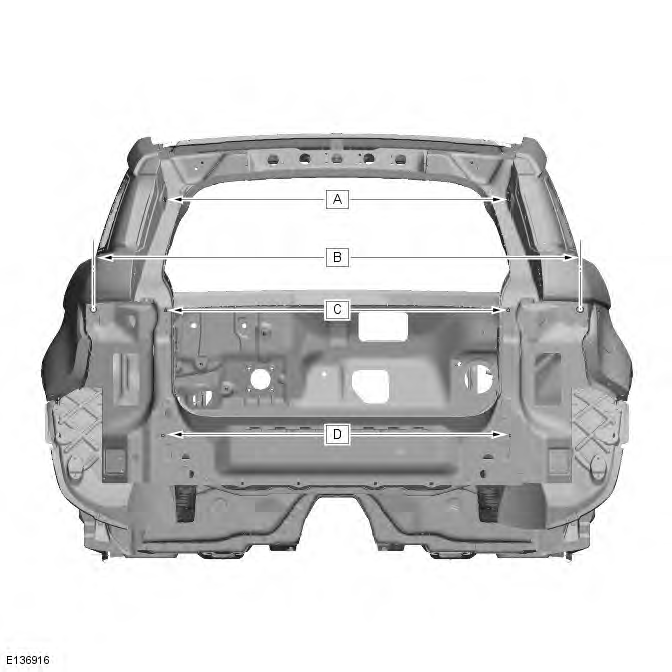

Rear End Body Dimensions

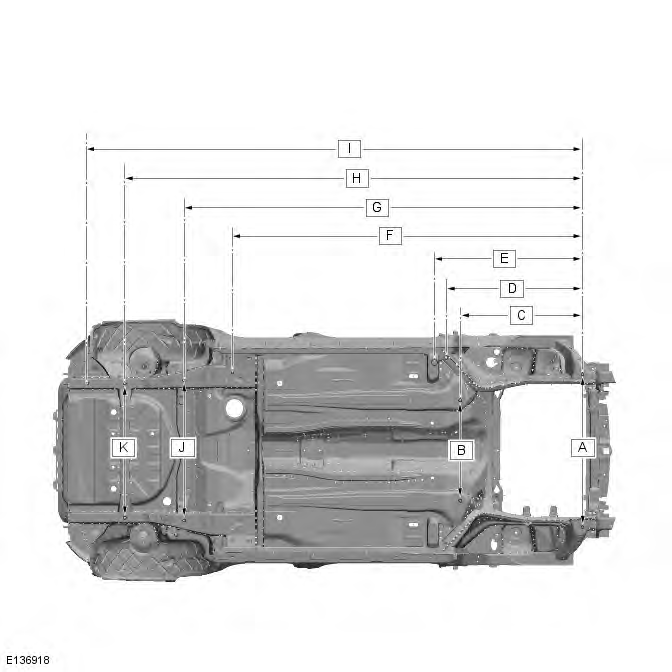

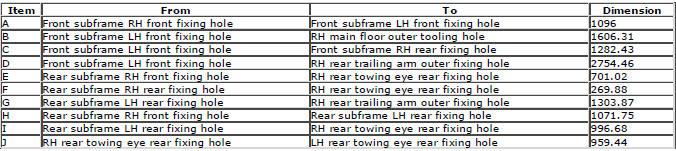

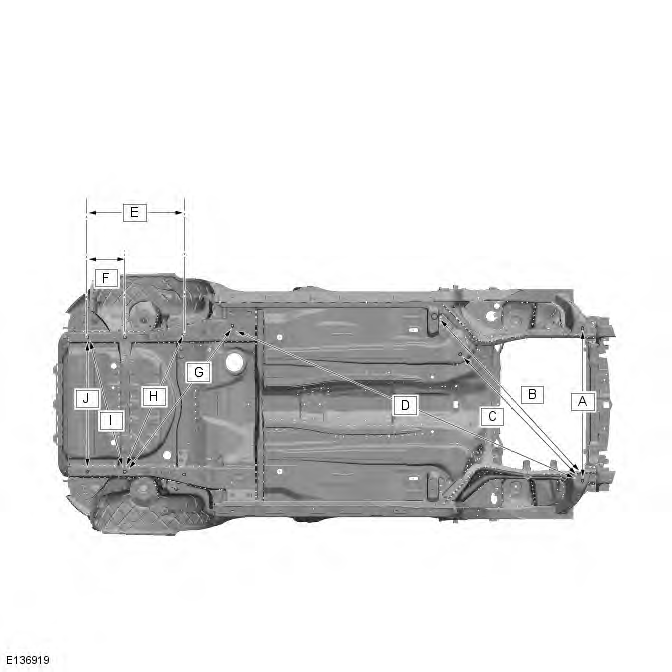

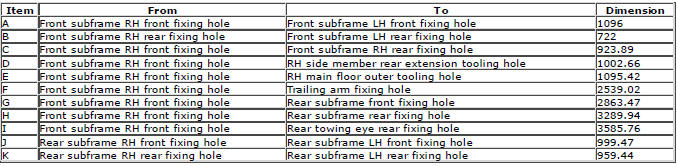

Under Body Dimensions

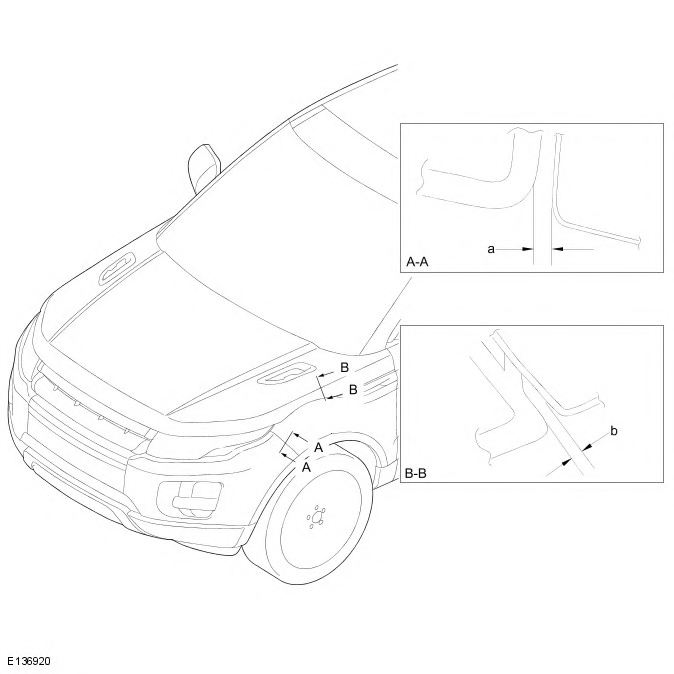

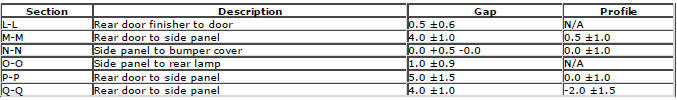

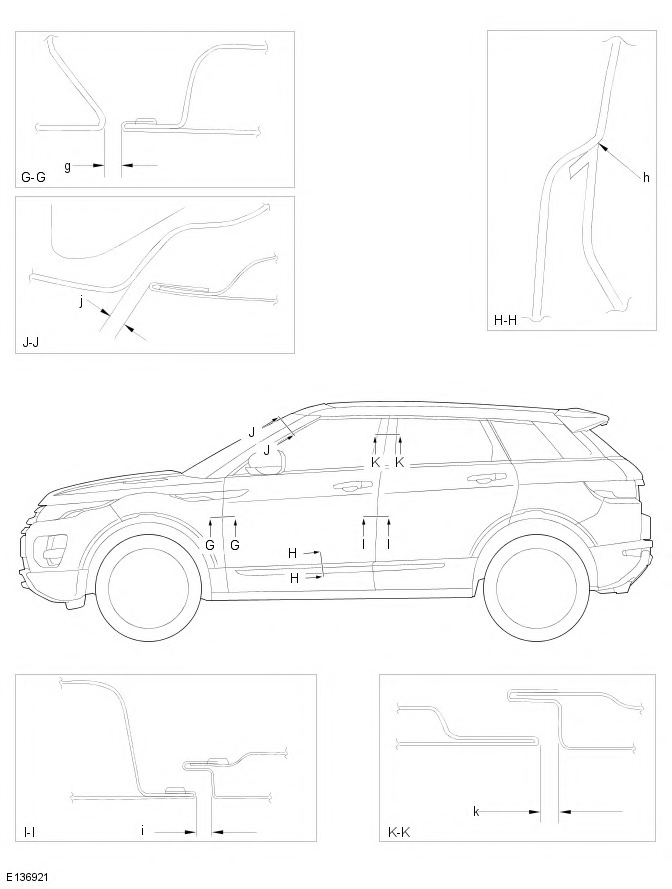

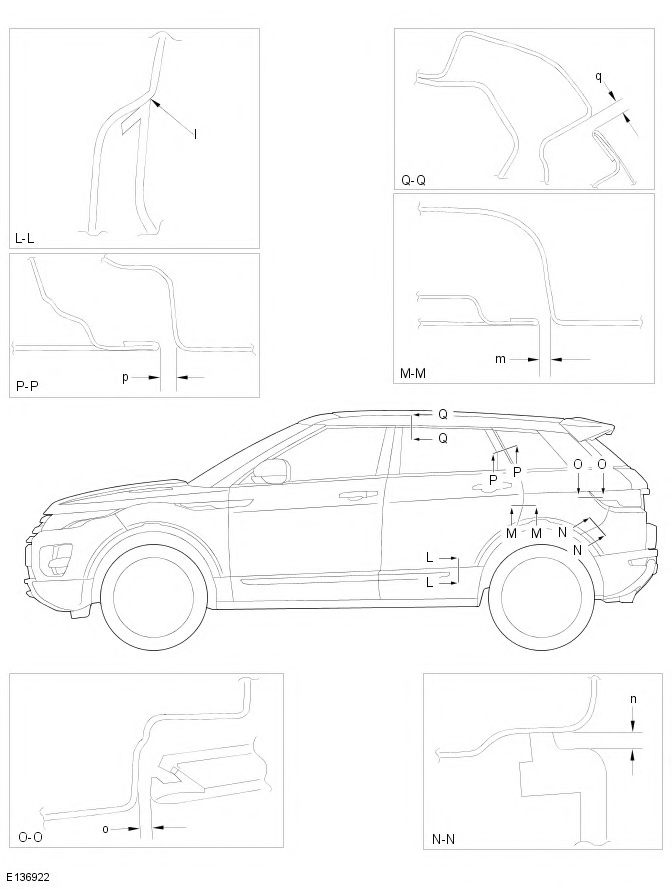

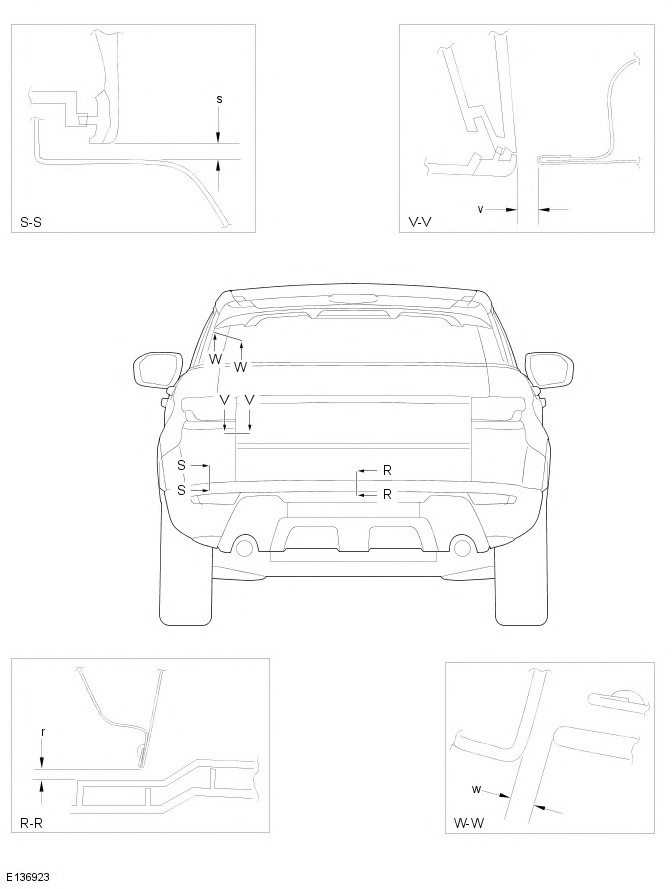

Gap and Profile measurements
The following information is to be used as a guide to assist the technician
in installing exterior body panels and trim items
so as to achieve a correctly aligned and cosmetically acceptable vehicle.
NOTE: All dimensions shown are in millimetres (mm).
