Range Rover Evoque: Cooling Fan
Removal
NOTES:
Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.
1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.
2. Refer to: Cooling System Partial Draining, Filling and Bleeding (303-03B Engine Cooling - GTDi 2.0L Petrol, General Procedures).
3. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - GTDi 2.0L Petrol (412-00 Climate Control System - General Information, General Procedures).
4. Refer to: Condenser - GTDi 2.0L Petrol (412-01 Climate Control, Removal and Installation).

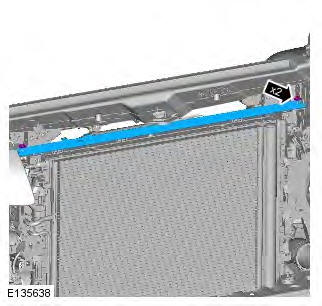

5. Torque: 5 Nm

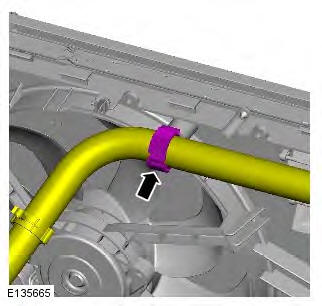

6.

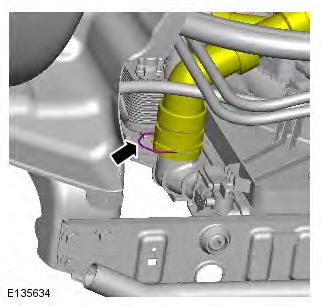

7.

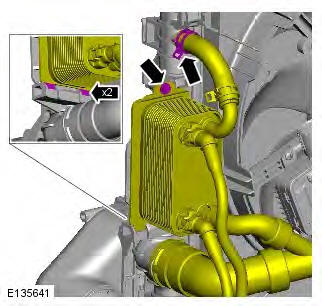

8. Torque: 5 Nm

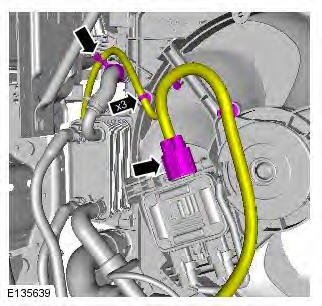

9.
10.

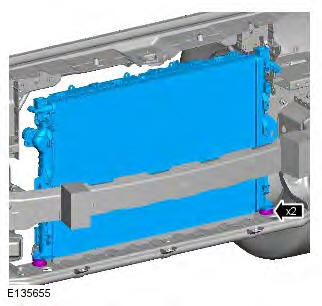

11. CAUTION: Take extra care not to damage the component.

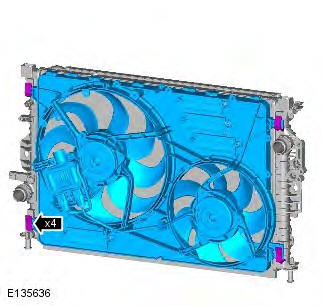

12.
Installation
1. To install, reverse the removal procedure.

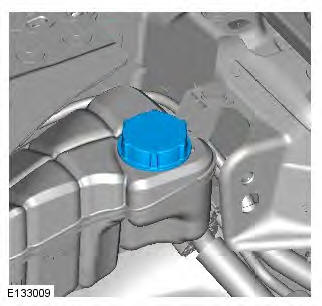

Coolant Expansion Tank
Removal
1. Refer to: Engine Upper Support Insulator (303-01B Engine - GTDi 2.0L Petrol, Removal and Installation).
2. CAUTION: Correct installation of the Coolant expansion tank cap can be obtained by tightening the cap until an audible click is heard.
3. Using a syringe, remove the cooling fluid from the expansion tank.

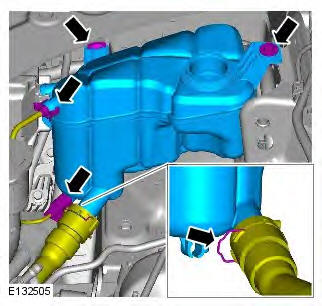

4. Torque: 10 Nm

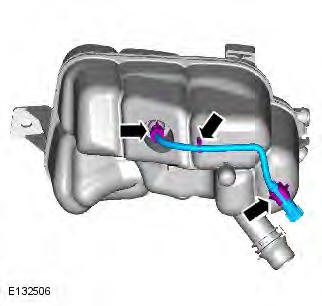

5. NOTE: Do not disassemble further if the component is removed for access only.
Installation
1. To install, reverse the removal procedure.
Engine Coolant Level Switch
Removal
NOTE: Removal steps in this procedure may contain installation details.
1. Refer to: Coolant Expansion Tank (303-03B Engine Cooling - GTDi 2.0L Petrol, Removal and Installation).
2. NOTE: Do not disassemble further if the component is removed for access only.
Installation
1. To install, reverse the removal procedure.
